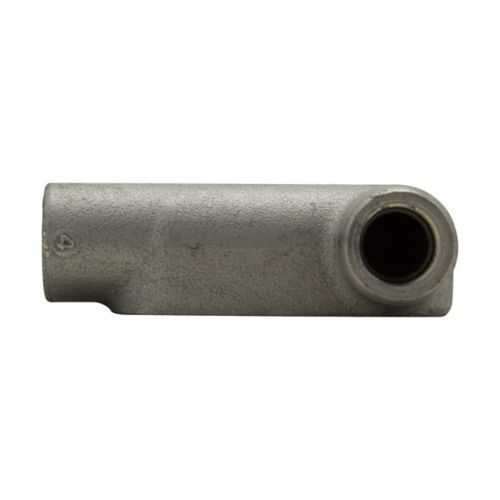

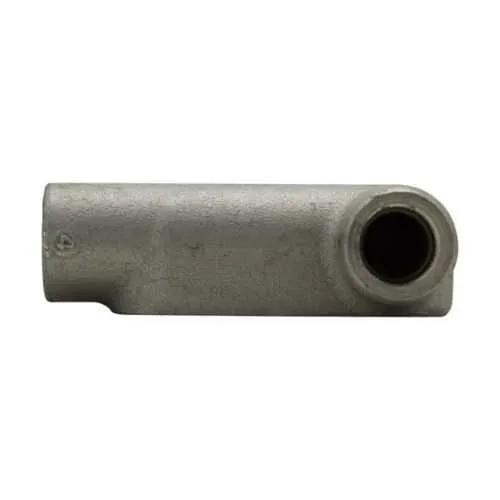

Eaton Crouse-Hinds LR107 Condulet Form 7 conduit outlet body - NEMA 12
Part Number: LR107
Quick Summary
Eaton Crouse-Hinds LR107 Condulet Form 7 conduit outlet body provides rugged enclosure for industrial conduit runs in non-hazardous facilities. That durability helps prevent downtime caused by corrosion, misalignment, and tight wiring in demanding plant environments. With NEC/CEC compliance, NEMA 12 protection, and ordinary-location ratings, it meets essential safety and performance standards for rugged installs. Designed for 4 inch trade size and Form 7 configurations, it delivers reliable wiring access with installation efficiency and cost savings. This makes LR107 an ideal choice for panel builders, integrators, and maintenance teams seeking fast, compliant installations. Expert installation guides and UL or installation bulletins support field teams through the setup.
Product Information
Extended Description
LR107 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LR shape, 4"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LR107
UPC
782274529905
Product Length/Depth
12.69 in
Product Height
6.94 in
Product Width
5.38 in
Product Weight
16.15 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feraloy iron alloy construction provides superior strength and corrosion resistance in demanding environments. This material choice extends service life and reduces maintenance costs by resisting moisture, oils, and grime that can compromise conduit body terminations. Application: ideal for control panels and machine guards in manufacturing facilities where reliability is paramount. The LR form 4" trade size design simplifies wiring access and wire pulling, enabling faster installations and fewer re-entries into tight conduit runs. Business impact: lower labor hours, reduced risk of damage during routing, and quicker energization of systems. Application: assembly lines, packaging equipment, and process automation where downtime directly impacts throughput. The Form 7 configuration supports robust cable management for 4" conduits, improving pull efficiency and termination clarity. Application: retrofit projects and new builds requiring modular conduit routing. NEMA 12 rating and NEC/CEC compliance provide dust protection and electrical safety for indoor environments. Business impact: easier compliance, fewer enclosure upgrades, and safer workplaces. Application: indoor electrical rooms and surface-mounted panels on factory floors. Ordinary/Non-Hazardous Locations classification helps optimize procurement and cost, avoiding unnecessary explosion-proof enclosures. Application: general manufacturing, warehouses, and non-hazardous production areas. Precise dimensions and weight (12.69 in L, 6.94 in H, 5.38 in W, 16.15 lb) support accurate panel planning and mounting clearances. Application: system layout and enclosure fit checks during design. Access to catalogs, datasheets, and installation sheets (IF 964, Form 7 spec guides) enhances on-site productivity and ongoing maintenance readiness. Application: field service, commissioning, and long-term support.
Get a Quick Quote for a Eaton Crouse-Hinds LR107
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR107?
Enquire Now
FAQs
LR107 is a Form 7 conduit outlet body designed for 4" trade size conduits in LR configurations. It pairs with standard conduit runs and is compatible with typical mounting patterns used in Crouse-Hinds Form 7 installations. Reference IF 964 and the Form 7 datasheet for wire-pulling guidance and compatible accessories to ensure correct alignment, grounding, and enclosure integrity during panel builds.
Key specs include a Feraloy iron alloy housing, 4" trade size, Form 7 shape, and LR length of 12.69 in with a height of 6.94 in and width of 5.38 in, weighing 16.15 lb. It carries a NEMA 12 enclosure rating and NEC/CEC compliance for ordinary locations, supporting reliable indoor installations with robust protection against dust and non-hazardous conditions.
LR107 is well-suited for general manufacturing, warehousing, and office-type environments where indoor, non-hazardous conditions prevail. Its NEMA 12 rating and ordinary-location classification make it ideal for control panels, electrical rooms, and machine mounting in factory floors, where durable protection and code compliance are essential without requiring explosion-proof enclosures.
LR107 complies with NEC/CEC standards and carries a NEMA 12 rating, indicating suitability for indoor, non-hazardous locations. UL certification is referenced via the provided UL documents for Form 7 components, supporting verification during audits. These certifications simplify regulatory approvals, reduce the need for supplementary protective enclosures, and help ensure safety in routine electrical installations.
A range of resources is available, including catalogs, installation instructions (IF 964), Form 7 spec guides, and wire fill charts. Access to these documents accelerates commissioning and reduces field rework. The durable Feraloy material and straightforward Form 7 configuration lower maintenance and replacement costs, delivering a favorable total cost of ownership over the product life cycle.
