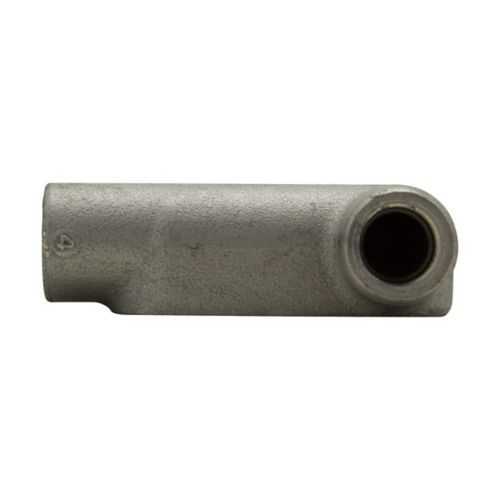

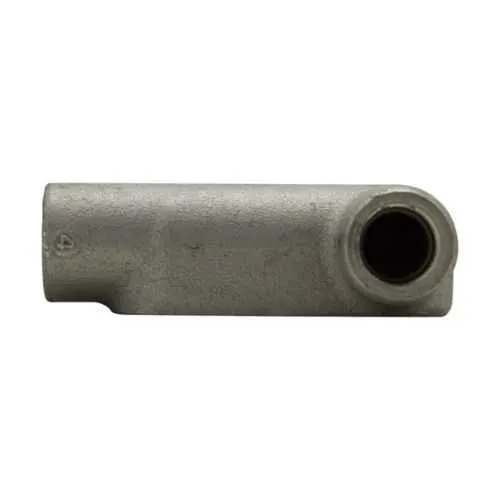

Eaton Crouse-Hinds LR17 Conduit Outlet Body - NEMA 12
Part Number: LR17
Quick Summary
LR17 conduit outlet body by Eaton Crouse-Hinds is a Form 7 conduit body for 1/2" trade size terminations. Engineers often face tight spaces and the need for reliable enclosure protection in busy electrical rooms. This unit carries a NEMA 12 rating and NEC/CEC compliance for ordinary/non-hazardous locations, ensuring regulatory alignment and safer wiring practices. The combination of Form 7 compatibility and the durable Feraloy iron alloy construction delivers long service life, while straightforward installation reduces downtime. For projects targeting Form 7 LR-series compatibility and rugged, non-hazardous applications, LR17 provides a dependable, cost-saving solution that fits standard 1/2" conduit layouts.
Product Information
Extended Description
LR17 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LR shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LR17
UPC
782274527604
Product Length/Depth
4.56 in
Product Height
2.25 in
Product Width
1.38 in
Product Weight
0.93 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - LR17
Eaton Specification Sheet - LR17
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Feraloy iron alloy material provides rugged durability and corrosion resistance in harsh industrial settings. Business Impact: Reduces maintenance cycles and replacement costs in dusty, dirty, or humid environments. Application: Ideal for Form 7 Condulet installations in manufacturing plants where reliability matters. Feature: LR shape and Form 7 design facilitate straightforward wiring and conduit pull operations. Business Impact: Shortens installation time and lowers labor costs while improving pull efficiency. Application: Suitable for tight spaces and complex wiring runs in control cabinets and machine enclosures. Feature: NEC/CEC compliance with NEMA Rating 12. Business Impact: Ensures code-aligned installations with guaranteed protection in ordinary/non-hazardous locations. Application: Use in US/Canada facilities following NEC/CEC requirements. Feature: 1/2" trade size compatibility. Business Impact: Aligns with standard conduit schematics, reducing need for adapters. Application: Common in panel feeds and branch wiring. Feature: Documented installation guidance and certifications. Business Impact: Improves procurement confidence and reduces risk during audits. Application: Refer to IF964 and UL certification docs for compliance verification and maintenance planning. Feature: Compact LR form factor supports Form 7 Condulet compatibility. Business Impact: Enables scalable wiring layouts across multiple cabinets without rework. Application: Suitable for modular industrial setups and retrofit projects.
Get a Quick Quote for a Eaton Crouse-Hinds LR17
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR17?
Enquire Now
FAQs
LR17 is a Form 7 conduit outlet body designed for 1/2 inch trade size installations in ordinary, non-hazardous locations. It supports wiring terminations and wire pulling in compact spaces, making it ideal for control panels, machine enclosures, and similar industrial wiring applications. Its LR shape ensures compatibility with Condulet Form 7 systems and standard 1/2 inch conduit layouts, helping to streamline project scoping and procurement.
LR17 is specified to comply with NEC/CEC standards for non-hazardous locations and carries a NEMA 12 rating, which provides protection against dust and water ingress in typical industrial environments. This combination supports code-compliant installations in North American facilities, minimizing risk during inspections and ensuring reliable operation in ordinary locations.
Yes. LR17 is designed for Form 7 conduit body wire pulling, and installation instructions such as IF 964 provide guidance on wire pulling practices. The Form 7 design aids access to conductors, while the 1/2 inch trade size standard aligns with common conduit systems, reducing the need for adapters and simplifying pull operations in constrained spaces.
LR17 is manufactured from Feraloy iron alloy, a rugged material chosen for its strength and corrosion resistance. This reduces wear in demanding industrial environments, extends service life, and supports reliable performance in ordinary locations where exposure to dust, moisture, or mild contaminants is possible.
Official LR17 data and catalogs are available through Eaton’s Conduit and Form 7 documentation, including CAS and certification pages, UL certification reports, and installation sheets such as IF 964. Accessing these resources helps verify compliance, pull limits, and installation best practices for procurement and audit readiness.
