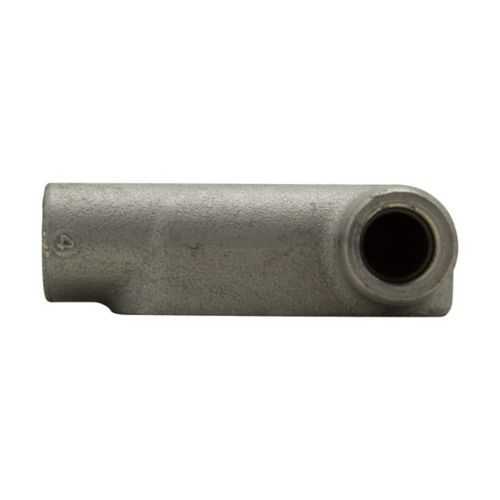

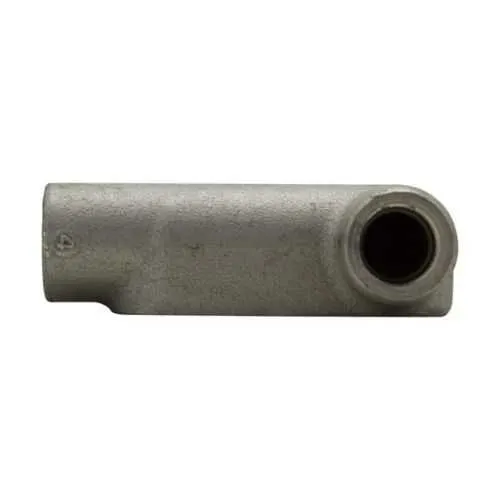

Eaton LR27 Condulet Form 7 Outlet Body - NEMA 12
Part Number: LR27
Quick Summary
Eaton LR27 Condulet Form 7 outlet body provides rugged conduit protection for 3/4-inch installations in industrial panels. This form 7 conduit body simplifies field wiring, reduces the risk of moisture and dust intrusion, and speeds panel assembly. The LR27 uses Feraloy iron alloy for tough environments and delivers compact dimensions: 5.19 in long, 2.44 in high, and 1.63 in wide. It carries NEC/CEC compliance and a NEMA 12 rating for Ordinary/Non-Hazardous Locations, helping projects meet safety and performance standards. By standardizing on Form 7 bodies like LR27, teams gain predictable compatibility, streamlined procurement, and lower lifecycle costs while maintaining robust protection for conductors and ease of maintenance in demanding facilities.
Product Information
Extended Description
LR27 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LR shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LR27
UPC
782274527901
Product Length/Depth
5.19 in
Product Height
2.44 in
Product Width
1.63 in
Product Weight
1.25 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
3/4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Feraloy iron alloy construction. Benefit: Delivers strong abrasion resistance, corrosion resistance, and longevity in demanding industrial environments, reducing replacement cycles and maintenance downtime. Application: Suitable for control panels exposed to dust, grime, and mild wash-downs, enabling reliable operation across shifts. Feature: LR shape Form 7 design. Benefit: Facilitates smoother wire pulling and easier conduit transitions, cutting installation time and error rates. Application: Ideal for compact panel layouts where space is at a premium and wiring routes are complex. Feature: 3/4 in trade size. Benefit: Ensures compatibility with common field wiring practices and standard conduit fittings, lowering procurement risk. Application: Used in medium-duty panel builds and equipment enclosures. Feature: NEMA 12 rating and Ordinary/Non-Hazardous Location classification. Benefit: Provides dust and light moisture protection, supporting safer, compliant installations with predictable performance. Application: Widely adopted for non-hazardous industrial environments. Feature: NEC/CEC compliance. Benefit: Streamlines approvals and reduces project risk by meeting recognized electrical codes. Application: Suitable for global industrial facilities following NEC/CEC standards.
Get a Quick Quote for a Eaton Crouse-Hinds LR27
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR27?
Enquire Now
FAQs
LR27 installation should begin with confirming the conduit alignment and space constraints of the panel, followed by proper sealing of the conduit body cover to maintain dust and moisture protection. Ensure the 3/4 in trade size fits the conductors and that wire fill respects NEC/CEC limits. Use appropriate gaskets and fasteners, and verify the LR form 7 access for convenient wire pulling.
Yes. LR27 is designed to satisfy NEC/CEC standards for non-hazardous locations and carries a NEMA 12 rating. This combination indicates suitability for ordinary industrial environments where dust or light splash exposure may occur, helping installers maintain compliance while delivering reliable protection for conductors and wiring routes.
LR27 measures 5.19 inches in length, 2.44 inches in height, and 1.63 inches in width, with an approximate weight of 1.25 pounds. These compact dimensions support dense panel layouts and ease handling during installation, alignment with standard 3/4-inch conduit fittings, and straightforward field modifications when required.
LR27 Form 7 is suitable for control panels and equipment enclosures in ordinary, non-hazardous industrial locations. Its LR shape and 3/4 in trade size support standard conduit routing and efficient wire pulling, while the NEMA 12 rating provides protection from dust and light moisture. It is well-suited for manufacturers seeking compliant, durable conduit solutions in general environments.
Technical documents for LR27 Form 7 are available from Eaton Crouse-Hinds. Useful resources include the Form 7 catalog page, installation instruction IF 863 sheets, and the Form 7 datasheet. Access to certification reports and wire fill charts is also provided to help ensure compliant, efficient installations on new builds and upgrades.
