Eaton Crouse-Hinds LR38 Conduit Outlet Body - NEMA 12
Part Number: LR38
Quick Summary
LR38 conduit outlet body is a Form 8 conduit fitting designed for 1\" trade-size terminations in industrial electrical systems. Engineers often struggle with space constraints, corrosion resistance, and tight installation schedules. It meets NEMA 12 protection, NEC/CEC standards, and UL certification, supporting safe, long-lasting terminations. For example, its Form 8, 1\" trade size design in Feraloy iron alloy delivers robust, industrial-grade performance. Designed for ordinary locations, it simplifies field installation with accessible mounting options and reliable wire pull performance. End users gain reliability and reduced downtime, supported by documented wire-fill charts and installation sheets. This makes LR38 a cost-effective choice for factory wiring projects.
Product Information
Extended Description

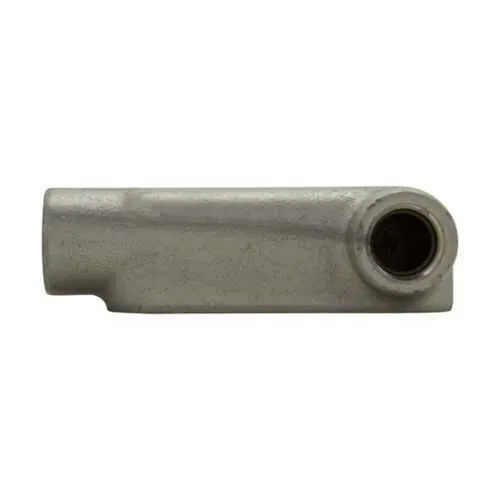

LR38 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, LR shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
LR38
UPC
782274528601
Product Length/Depth
6.47 in
Product Height
2.63 in
Product Width
1.94 in
Product Weight
2.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
1"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies UL certification
Condulet Form 8 Conduit Outlet Bodies UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LR38
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
The LR38 uses a Feraloy iron alloy body, delivering superior impact strength and corrosion resistance in demanding industrial environments. This material choice translates into a longer service life for conduit fittings in factory floors, outdoor enclosures, and wash-down areas, reducing replacement costs over time. Its Form 8 configuration with a 1\" trade size enables predictable wiring paths, simplifying installation and minimizing misfits during panel terminations. As a result, field crews save time and labor, accelerating project timelines and lowering commissioning risk. The LR38 is designed for ordinary locations, enabling reliable performance without the complexity of hazardous-area enclosures. Compatibility with standard Crouse-Hinds Form 8 accessories and documented wire-fill charts further reduces installation errors and rework. In practice, contractors experience fewer call-backs and improved on-site efficiency across routine electrical installations.
Get a Quick Quote for a Eaton Crouse-Hinds LR38
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR38?
Enquire Now
FAQs
The LR38 is a Condulet Form 8 conduit outlet body designed for 1" trade-size conduit terminations in industrial electrical installations. It uses Feraloy iron alloy for durability, offers NEMA 12 protection, and is UL-listed for reliable performance in ordinary location environments like factories and controls enclosures.
Yes. The LR38 is UL certified and meets NEC/CEC standards, with a NEMA 12 rating suitable for ordinary locations. This combination provides regulatory compliance and safe operation across North American installations.
Installations follow standard Condulet Form 8 practices. Use the IF 863 conduit body wire-pulling guidelines, ensure 1" conduit terminations align with the LR38, and reference the official installation sheets for mounting orientation and wire-fill considerations to minimize pull resistance and prevent binding.
Wire-fill limits for Form 8 LR38 are defined in Eaton’s industrial fittings wire-fill chart. Always consult the specific chart and the IF 863 instructions to determine the allowable conductor count and gauge for your particular conduit configuration before wiring.
Yes. The LR38 is designed for Form 8, 1" conduit terminations in ordinary-location environments. Its Feraloy iron alloy and NEMA 12 rating make it suitable for non-hazardous areas, while NEC/CEC compliance ensures cross-border compatibility with standard conduit fittings and installations.
