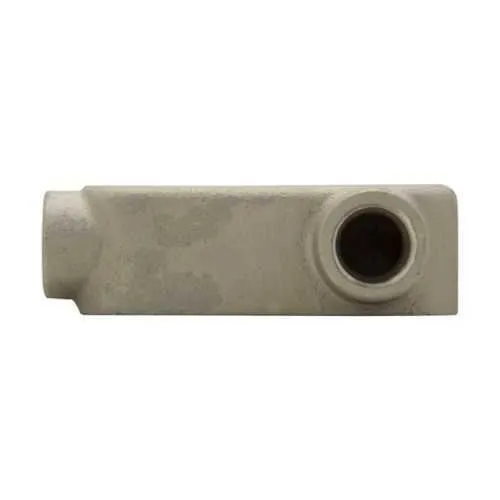

Eaton LR39 Condulet Mark 9 Outlet Body - NEMA 12
Part Number: LR39
Quick Summary
LR39 Condulet Mark 9 conduit outlet body provides a rugged enclosure for wiring in industrial control panels. It helps reduce field rework and downtime by delivering clean, reliable conduit terminations in challenging environments. Certified for ordinary/non-hazardous locations (NEMA 12) and compliant with NEC/CEC standards, it is UL-listed for added project assurance. The copper-free aluminum construction and 1" trade size simplify installation and enhance longevity, fitting smoothly with standard fittings in tight spaces. For engineers and procurement teams aiming to minimize maintenance costs while meeting regulatory requirements, LR39 delivers proven performance and total cost-of-ownership advantages.
Product Information
Extended Description
LR39 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LR shape, 1"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LR39
UPC
782274528700
Product Length/Depth
6.09 in
Product Height
2.69 in
Product Width
1.88 in
Product Weight
0.71 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
1"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies UL certification
Condulet Mark 9 Conduit Outlet Bodies UL certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - LR39
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature copper-free aluminum construction → Business Impact reduced corrosion risk and lighter handling during field installations, lowering setup time and lifecycle maintenance costs. Application ideal for control panels and equipment housings in harsh environments, improving long-term reliability while cutting downtime. Feature LR shape → Business Impact easier wire routing and pull planning in compact enclosures, reducing installation errors and rework. Application enhances serviceability in crowded panels and tight conduit runs. Feature 1" trade size → Business Impact compatibility with standard fittings accelerates approvals and simplifies inventory management. Application supports common industrial wiring schemes and faster project readiness. Feature NEMA 12 enclosure rating, NEC/CEC compliance, UL listing → Business Impact robust regulatory compliance and protection against dust and splashes, minimizing change orders. Application suitable for ordinary/non-hazardous locations in facility environments. Feature dimensions and weight (6.09 in x 2.69 in x 1.88 in, 0.71 lb) → Business Impact precise BOM planning and transport logistics. Application aids accurate space budgeting and installation planning. Feature compatibility with installation resources (IF 964, wire fill charts, catalog pages) → Business Impact smoother commissioning and documented best practices. Application reduces risk during wire pulling and terminations, supporting repeatable installations.
Get a Quick Quote for a Eaton Crouse-Hinds LR39
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR39?
Enquire Now
FAQs
LR39 is designed to accept standard 1" conduit fittings and channeling in tight spaces. When installing, verify mounting alignment, ensure the enclosure interior is clear, and use compatible closures. Refer to the IF 964 instruction sheet for wire pulling guidance and the Mark 9 catalog page for mounting notes. This reduces rework and protects conductor integrity.
LR39 provides NEMA 12 enclosure protection suitable for ordinary/non-hazardous locations, guarding against dust and splashes. The copper-free aluminum body resists corrosion, supporting long-term reliability in control panels and electrical cabinets. Compliance with NEC/CEC ensures wiring practices meet code requirements, while UL listing adds third-party verification for project approvals.
LR39 carries NEMA 12 enclosure rating, NEC/CEC standards, and UL certification for Condulet Mark 9 components. These certifications matter because they confirm environmental protection, electrical-code compatibility, and third-party reliability, enabling smoother audits, safer installations, and faster acceptance by regulators and customers in North American facilities.
LR39's copper-free aluminum construction offers superior corrosion resistance and lighter weight, reducing maintenance needs and handling costs over time. The LR shape eases wiring in confined spaces, lowering labor time. UL and NEC/CEC compliance reduce risk of rework or retrofit, delivering lower total cost of ownership across the product’s lifecycle.
Access the Crouse-Hinds Form 8 and Mark 9 catalog pages, UL certification references, IF 964 wire pulling instructions, and the Eaton LR39 specification sheet for detailed dimensions and installation guidelines. Wire fill charts also help plan conductor counts, improving design accuracy and speeding project approvals.
