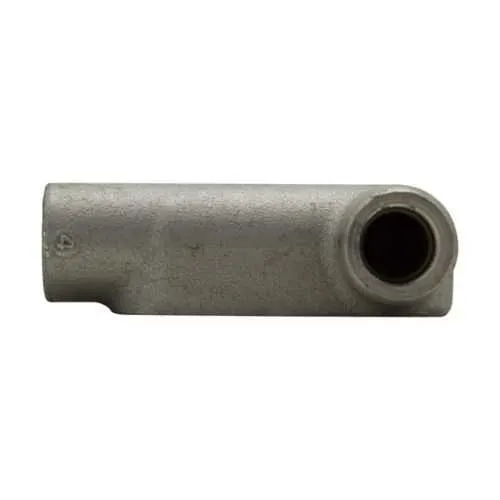

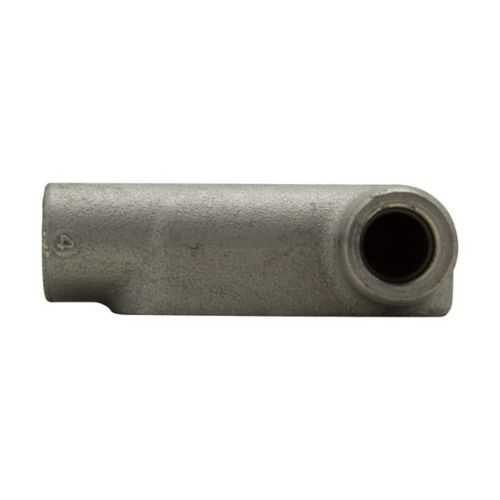

Eaton Crouse-Hinds LR47 Conduit Outlet Body - NEMA 12
Part Number: LR47
Quick Summary
Eaton Crouse-Hinds LR47 Conduit Outlet Body enables Form 7 conduit termination in 1-1/4 inch runs for industrial control panels. Installers often struggle with wire pulls, corrosion, and non-standard enclosures that slow projects. This product complies with NEC/CEC standards, carries a NEMA 12 rating, and is classified for Ordinary/Non-Hazardous Locations. Designed for durable form-factor and straightforward field installation, LR47 supports Form 7 compatibility and reliable wiring in enclosures, reducing maintenance and speeding uptime. In addition to robustness, it positions you to meet industry requirements while keeping costs predictable for mid-scale projects.
Product Information
Extended Description
LR47 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LR shape, 1-1/4"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LR47
UPC
782274528809
Product Length/Depth
6.5 in
Product Height
3.19 in
Product Width
2.31 in
Product Weight
2.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
1-1/4"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Form 7 LR conduit body with 1-1/4 inch trade size. Business Impact: Standardizes conduit terminations, speeds panel builds, and reduces field rework. Application: Control panels and electrical enclosures needing Form 7 compatibility. Feature: Feraloy iron alloy construction. Business Impact: Delivers high strength and corrosion resistance for longer service life in harsh environments. Application: Industrial facilities with demanding duty cycles and exposure to enclosure interiors. Feature: LR shape and compact footprint. Business Impact: Optimizes space in crowded panels and reduces enclosure footprint while maintaining cable routing flexibility. Application: Space-constrained installations in bolted or mounted enclosures. Feature: 6.5 inch length, 3.19 inch height, 2.31 inch width; weight 2.4 lb. Business Impact: Predictable sizing aids enclosure planning and logistics, lowering shipping and inventory costs. Application: New builds and retrofits where precise dimensions matter. Feature: NEMA Rating 12; NEC/CEC compliant; Ordinary/Non-Hazardous Locations. Business Impact: Ensures regulatory compliance and safe operation, reducing inspection risk. Application: Indoor controlled environments and non-hazardous areas requiring reliable protection.
Get a Quick Quote for a Eaton Crouse-Hinds LR47
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR47?
Enquire Now
FAQs
LR47 is a Form 7 conduit outlet body designed for 1-1/4 inch trade-size conduits and is compatible with Eaton Crouse-Hinds Condulet Form 7 assemblies. It fits standard Form 7 catalogs and supports field mounting in control panels and electrical enclosures where Form 7 bodies are specified. Compatibility with standard conduit fittings and mounting patterns helps reduce custom hardware needs.
LR47 uses Feraloy iron alloy in the LR form for enhanced strength and corrosion resistance. It supports a 1-1/4 inch trade size and measures about 6.5 inches long, 3.19 inches high, and 2.31 inches wide, weighing roughly 2.4 pounds. It carries a NEMA 12 rating and complies with NEC/CEC standards for ordinary/non-hazardous locations.
Best used in non-hazardous industrial environments such as control panels, electrical enclosures, and equipment racks where Form 7 conduit bodies are required. The LR47's compact LR shape and rugged material provide durable, weather-resistant service in indoor or sheltered outdoor installations, while maintaining ease of wire pulling and field mounting.
Eaton provides installation resources for Condulet Form 7 components, including IF 863 Conduit Body Wire Pulling instructions and the Form 7 specification catalog page. UL certification reports are also available to support compliance during audits, along with the Form 7 industrial-grade conduit bodies spec guide.
By aligning with NEC/CEC standards and a NEMA 12 rating, LR47 reduces compliance risk and maintenance costs over time. Its Feraloy iron alloy offers durable corrosion resistance, while its defined dimensions streamline planning and installation, lowering field labor time and rework. Access to official catalogs and installation instructions accelerates retrofits and predictable project timelines.
