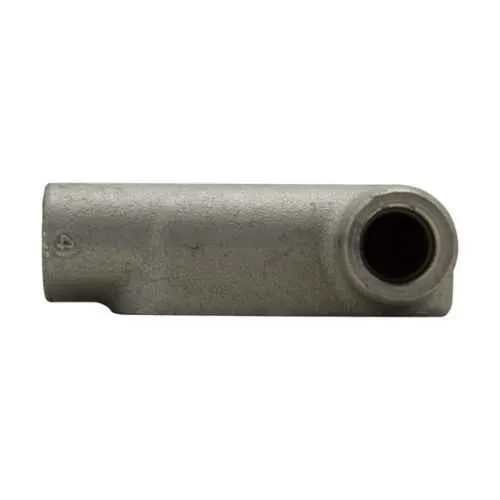

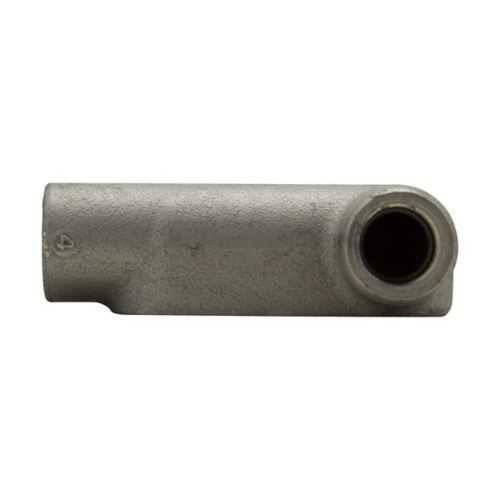

Eaton Crouse-Hinds LR67 Condulet Form 7 - NEMA 12
Part Number: LR67
Quick Summary
LR67 Condulet Form 7 conduit outlet body provides rugged, code-compliant conduit routing for 2" trade size installations in industrial control panels. In the field, tight spaces and complex wire pulls often slow projects and drive up labor costs—this durable Form 7 body helps streamline assembly. Built from a Feraloy iron alloy for strength and corrosion resistance, it supports long service life in demanding environments. With a NEMA 12 rating and NEC/CEC standards compliance, it is suitable for Ordinary/Non-Hazardous Locations, helping facilities meet regulatory requirements confidently. Using this conduit outlet body can reduce field rework and downtime, while maintaining compatibility with standard Condulet fittings and installation accessories for faster sweeps and cleaner terminations. This yields measurable efficiency gains and predictable maintenance schedules for industrial wiring projects.
Product Information
Extended Description
LR67 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LR shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LR67
UPC
782274529301
Product Length/Depth
8.13 in
Product Height
4.13 in
Product Width
3.13 in
Product Weight
4.55 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature LR67 Condulet Form 7 conduit outlet body uses an LR shape designed for 2" trade size. Business Impact The form factor optimizes space and simplifies wire routing, reducing installation time and potential miswiring. Application This is ideal for industrial control panels where compact, reliable conduit routing is critical for project timelines. Feature Feraloy iron alloy construction delivers enhanced strength and corrosion resistance. Business Impact This material choice extends service life in harsh environments, lowering replacement and maintenance costs. Application Suitable for outdoor or damp indoor locations common in plants and facilities. Feature NEMA Rating 12 and NEC/CEC compliance provide robust protection. Business Impact Ensures regulatory alignment and safer installations with reduced inspection risk. Application Fits Ordinary/Non-Hazardous Locations, streamlining procurement and approvals. Feature Precise dimensions 8.13 in length, 4.13 in height, 3.13 in width and 4.55 lb weight. Business Impact Improves handling, supports quick mounting, and minimizes field adjustments. Application Facilitates faster, cleaner terminations. Feature Compatibility with Condulet Form 7 catalogs, installation instructions IF 863 and related docs. Business Impact Enables engineers to source and install with confidence, reducing rework and warranty issues. Application Works with standard Condulet fittings for scalable panel builds. Feature Overall value proposition combines durability, compliance, and ease of installation. Business Impact Lowers total cost of ownership for electrical enclosures through extended life and lower maintenance.
Get a Quick Quote for a Eaton Crouse-Hinds LR67
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR67?
Enquire Now
FAQs
LR67 is specifically designed for a 2-inch trade size Condulet Form 7 installation. It fits standard Condulet fittings and works with 2" conduit runs in typical panel setups. The LR shape enables efficient wire pulling while maintaining a compact footprint, reducing installation time and ensuring a clean termination at the outlet body.
LR67 carries a NEMA Rating of 12 and NEC/CEC standards compliance, suitable for Ordinary/Non-Hazardous Locations. This combination ensures protection against dust and splashing water in standard industrial environments and helps align installations with common regulatory requirements.
The Form 7 LR67 conduit outlet body uses a compact LR design and robust Feraloy iron alloy, simplifying wire routing and reducing the need for field modifications. When paired with installation sheets like IF 863 and standard catalogs, it accelerates mounting, improves reliability, and lowers labor costs on mid- to high-volume projects.
Yes. Formularies and certifications for Condulet Form 7 products, including LR67, are listed in Canadian certification references. The product line maintains appropriate compliance documentation to meet Canadian market requirements for metallic conduit outlet bodies and covers.
Eaton provides installation instructions such as IF 863 for conduit body wire pulling, along with Form 7 specification guides and catalog pages. Additional resources include data sheets and technical bulletins that cover bend radii, cubic capacity, and recommended accessories to streamline installation and ensure code compliance.
