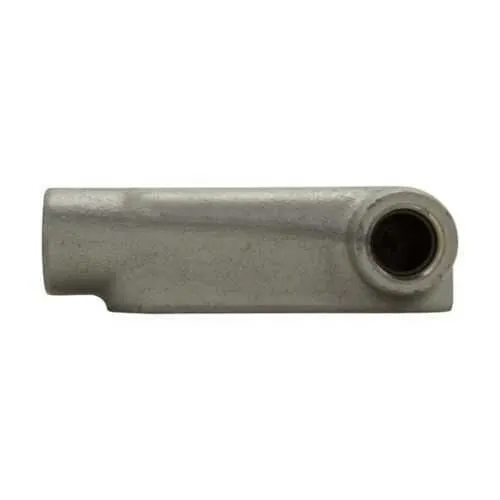

Eaton LR68 Condulet Form 8 conduit outlet body - NEMA 12
Part Number: LR68
Quick Summary
LR68 Condulet Form 8 conduit outlet body is a rugged enclosure solution for dry, non-hazardous industrial environments, offering durable wire access and reliable Form 8 compatibility for 2 in trade size installs. Installers frequently wrestle with mounting, gasket integrity, and conductor pulls in tight spaces, which can cause downtime and rework. This LR68 design aligns with NEC/CEC standards, carries a NEMA 12 rating for dust and water protection, and is documented with Canadian certification for steady regulatory compliance. Manufactured from Feraloy iron alloy, it resists impact and corrosion on factory floors, while remaining compatible with standard conduit fittings and installation practices. Together, these features reduce installation time, improve first-time wiring reliability, and lower total ownership costs in industrial automation, machinery, and electrical distribution projects.
Product Information
Extended Description
LR68 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, LR shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
LR68
UPC
782274529400
Product Length/Depth
11 in
Product Height
5 in
Product Width
3.56 in
Product Weight
7.55 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies Canadian certification
Condulet Form 8 Conduit Outlet Bodies Canadian certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - LR68
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Form 8 LR68 configuration and 2 inch trade size. Business Impact: Predictable fit with standard conduits reduces field adaptation time and minimizes the need for adapters. Application: Ideal for new builds and retrofits in automated lines where space is at a premium and quick wiring access matters. Feature: Feraloy iron alloy construction. Business Impact: High strength, abrasion resistance, and corrosion resistance reduce maintenance cycles and extend service life. Application: Suitable for factory floors and harsh interiors where impact and exposure occur. Feature: NEMA 12 rating and NEC/CEC compliance. Business Impact: Provides dust and water protection while meeting regulatory requirements, lowering risk of noncompliant installations. Application: Warehouses, plants, and non-hazardous indoor spaces. Feature: generous dimensions (11 in L × 5 in H × 3.56 in W) and weight (7.55 lb). Business Impact: Ample internal volume supports wire pulling and organized terminations, reducing installation time. Application: Panels and enclosures with space constraints. Feature: Compatibility with standard fittings and installation guides. Business Impact: Streamlines procurement and reduces rework by aligning with established field practices. Application: Joint use with conventional conduit components and adherence to IF 964 wire pulling instructions. Feature: Documentation and certifications. Business Impact: Facilitates compliance reviews and cross-border deployments with UL Canada certifications and documented Canada compliance. Application: Multi-region deployments in North American facilities.
Get a Quick Quote for a Eaton Crouse-Hinds LR68
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR68?
Enquire Now
FAQs
Begin by mounting the LR68 to the enclosure using the Form 8 mounting pattern, align the LR shape, and thread a 2 inch conduit into the hubs. Install gaskets and mating fittings, tighten per torque specs, and ensure the cover seats fully to maintain a dust- and water-tight seal. When pulling wires, follow the IF 964 instruction to protect conductors.
Verify conductor counts and gauge against NEC fill limits using the Industrial Fittings Wire Fill Chart. The LR68 supports multiple conductors within published fill values; always tally each conductor, including spares, and avoid exceeding the chart’s limits. For complex pulls, use the chart alongside the IF 964 installation guide to plan the route.
Yes. LR68 is designed for Ordinary/Non-Hazardous Locations with a NEMA 12 rating that provides dust and drip protection. It complies with NEC/CEC standards, making it appropriate for many indoor industrial settings. For outdoor or hazardous environments, select an enclosure with a more specialized rating.
LR68 adheres to NEC/CEC standards and carries a NEMA 12 rating. Canadian certification documentation supports cross-border use, facilitating regulatory compliance. Always cross-check local codes and consult the Eaton installation sheets to confirm applicability to your specific project.
LR68 delivers measurable value through reduced installation downtime, easier wiring access, and fewer field modifications thanks to its Form 8 design and spacious interior. The durable Feraloy iron alloy resists impact and wear on factory floors, lowering long-term maintenance costs and improving first-time install reliability in automation and electrical distribution projects.
