Eaton LR69 Condulet Mark 9 conduit outlet body - NEMA 12
Part Number: LR69
Quick Summary
LR69 conduit outlet body from Eaton Crouse-Hinds provides a rugged, copper-free aluminum solution for 2" conduit runs in control panels. Installers often struggle with space, compatibility, and weather exposure when fitting conduits in busy assemblies. This LR69 unit aligns with NEC/CEC standards, carries a NEMA 12 rating, and supports ordinary/non-hazardous locations. Its copper-free aluminum construction reduces weight and maintenance costs, while installation guides, catalog sheets, and WIRE-FILL data streamline commissioning. Its LR shape and copper-free construction facilitate field modifications and reduce carry weight in long installs. Designed for reliable grounding and easy wiring access, it minimizes downtime during panel revisions.
Product Information
Extended Description

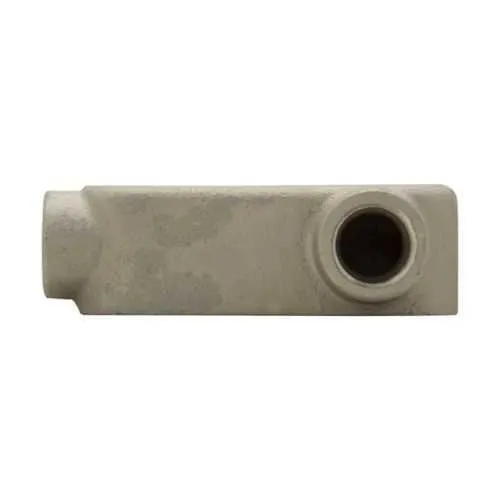

LR69 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LR shape, 2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LR69
UPC
782274529509
Product Length/Depth
10.09 in
Product Height
4.2 in
Product Width
3.44 in
Product Weight
2.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LR69
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Copper-free aluminum construction reduces weight compared to steel alternatives while delivering robust corrosion resistance in ordinary industrial environments. This material choice shortens installation time and lowers maintenance costs by minimizing oxidation-related issues in non-hazardous locations. For panel builders, lighter parts translate to easier handling and fewer worker injuries during retrofits or new installations. The Condulet Mark 9 family, including LR69, leverages this metallurgy to support reliable service over the life of the panel. LR69 features an LR-shaped body designed for 2-inch trade size, providing predictable fit and alignment with the Condulet Mark 9 ecosystem. The standardized footprint enables faster mounting, fewer intermediate parts, and easier retrofits where space is constrained. This geometry also simplifies field wiring and pull operations, reducing the risk of damage during installation. In busy manufacturing environments, any reduction in assembly time yields meaningful cost savings. With a NEMA 12 rating and NEC/CEC standards alignment, LR69 offers reliable protection against dust and water ingress while meeting North American electrical codes. This combination supports safe operation in ordinary locations such as control panels, machine rooms, and non-hazardous areas, without the extra cost of premium enclosures. The robust certification mix helps procurement teams qualify the part quickly and reduces the need for adapters or rework during inspection. Dimensions and weight are values you can trust in panel design: 10.09 in length, 4.2 in height, 3.44 in width, and about 2.2 lb. These figures matter for knockouts, internal clearances, and shipping logistics. The LR69 footprint also ensures compatibility with standard mounting patterns, aiding fast sequencing of assemblies and easier field modifications if system changes occur. Support and documentation accompany the LR69, including the Crouse-Hinds specification sheet, catalog page, and IF 863 instruction sheets for wire pulling. Additional resources such as the Industrial Fittings Wire Fill Chart help with conductor sizing and capacity planning. Access to these materials accelerates commissioning, reduces errors, and drives a lower total cost of ownership for panel builders and end-users.
Get a Quick Quote for a Eaton Crouse-Hinds LR69
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR69?
Enquire Now
FAQs
Yes. LR69 is a Condulet Mark 9 conduit outlet body in the LR shape designed for a 2 inch trade size. It fits the LR family, supports standard mounting patterns, and aligns with NEC/CEC requirements. For wiring pull and installation steps, refer to IF 863 instruction sheets and the Eaton LR69 datasheet to ensure correct assembly and enclosure integrity.
LR69 carries a NEMA 12 rating, providing protection against dust and water ingress in ordinary locations. It is suitable for non-hazardous environments and complies with NEC/CEC standards, aiding code conformity during procurement and installation on control panels and machine housings.
Absolutely. The LR69 conduit outlet body is designed for 2" trade size and ordinary/non-hazardous locations, making it ideal for control panels, machine rooms, and other non-exposed industrial areas. Its copper-free aluminum construction helps reduce weight and simplifies field modifications without compromising durability.
LR69 complies with NEC/CEC standards and carries a NEMA 12 rating. Canadian certifications are supported via UL-listed references linked to Condulet Mark 9 products, ensuring cross-border compliance for North American installations in non-hazardous locations.
LR69 is supported by Eaton’s specification sheet, catalog pages, IF 863 wire-pulling instructions, and the Industrial Fittings Wire Fill Chart. These resources streamline design validation, improve wiring accuracy, and reduce commissioning time, contributing to a lower total cost of ownership for panel builders.
