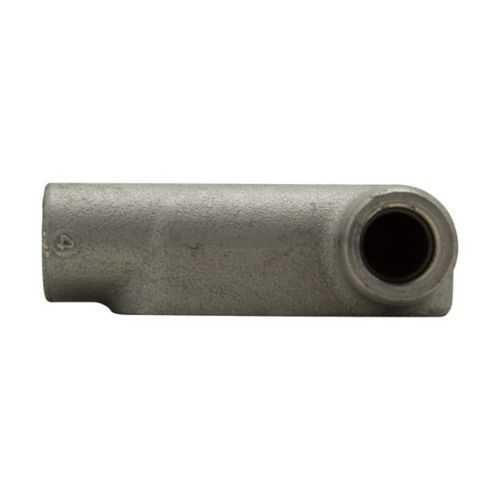

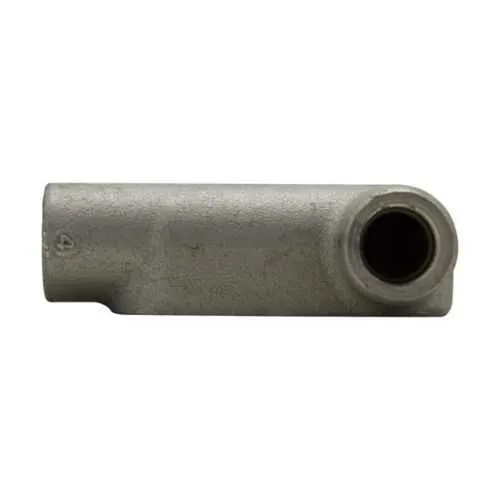

Eaton LR777 Condulet Form 7 Conduit Outlet Body - NEMA 12
Part Number: LR777
Quick Summary
LR777 Condulet Form 7 conduit outlet body provides rugged enclosure for electrical fittings in industrial wiring. Engineers often grapple with corrosion resistance, space constraints, and safe, code-compliant wire pulling in harsh facilities. This LR777 meets NEC/CEC standards and the NEMA 12 rating for ordinary/non-hazardous locations, offering reliable protection and consistent performance. Designed to streamline installation and ensure long-term durability, it supports efficient field wiring and scalable conduit body solutions for broader industrial wiring needs.
Product Information
Extended Description
LR777 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LR shape, 2-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LR777
UPC
782274530406
Product Length/Depth
10.5 in
Product Height
5.75 in
Product Width
3.63 in
Product Weight
8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
2-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
Condulet Form 7 Conduit Outlet Bodies and Covers UL certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LR777
Eaton Specification Sheet - LR777
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Feraloy iron alloy construction and LR shape provide a robust, corrosion-resistant enclosure. Business Impact: Extends equipment life in demanding environments and reduces unplanned maintenance. Application: Ideal for rugged factory floors and outdoor installations where abrasion and moisture exposure are common. Feature: NEMA 12 rating with Ordinary/Non-Hazardous Locations suitability. Business Impact: Delivers dust and light moisture protection, simplifying compliance in standard facilities. Application: Suitable for general manufacturing, assembly lines, and non-hazardous processing areas. Feature: 2-1/2 inch trade size and Form 7 compatibility. Business Impact: Ensures quick integration with standard conduit runs and compatible accessories, reducing design complexity. Application: Facilitates rapid installation in new builds and retrofits. Feature: UL/NEC/CEC compliance and clear specifications. Business Impact: Accelerates regulatory approvals and ensures certified performance. Application: Supports industry-standard projects requiring formal compliance documentation. Feature: Weight, dimensions, and material data provided for precise planning. Business Impact: Improves panel layout accuracy and procurement accuracy, cutting rework. Application: Helpful in enclosure planning and space-constrained installations. Feature: Installation resources including IF 863/IF 964 wire-pulling guidance and official datasheets. Business Impact: Cuts field time and risk, enabling predictable project timelines. Application: Useful for electrical contractors and design engineers during installation.
Get a Quick Quote for a Eaton Crouse-Hinds LR777
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR777?
Enquire Now
FAQs
LR777 is designed for Form 7 conduit bodies with a 2-1/2 inch trade size and LR-shaped enclosure. It accepts standard Form 7 fittings and Condulet accessories from Crouse-Hinds/Eaton, matching the Form 7 footprint for easy replacement. The rugged Feraloy iron alloy construction ensures compatibility with common industrial conduits and reliable sealing, even in tight pull areas.
LR777 meets NEC/CEC standards and carries a NEMA 12 rating, ensuring compliance for ordinary locations and protection against dust and light moisture. The unit's Feraloy iron alloy construction adds resistance to corrosion and wear in demanding environments. UL certifications further validate safety, enabling reliable installation in regulated facilities. Its non-hazardous location suitability simplifies compliance planning.
Yes. LR777 is designed explicitly for ordinary/non-hazardous locations, aligning with Area Classification requirements. The NEMA 12 enclosure provides dust and light moisture protection, while the rugged LR form keeps conductors shielded during installation and service. This makes LR777 suitable for general manufacturing, assembly lines, and non-hazardous processing areas.
LR777 installation resources include IF 863 wire pulling instruction sheets, UL certification references, and Eaton's Form 7 catalog page and datasheets. Accessing these documents streamlines planning, confirms wire capacity, and supports compliant installations. In addition, official specification sheets summarize dimensions and material data for precise panel design. This reduces procurement risk and saves engineering time.
From a maintenance and ROI perspective, LR777 minimizes field rework thanks to a precise Form 7 fit and solid Feraloy alloy durability. Its NEMA 12 enclosure reduces ingress-related issues, lowering maintenance costs, while NEC/CEC compliance accelerates regulatory approvals. Overall, reduced downtime translates to shorter project timelines and lower lifecycle costs.
