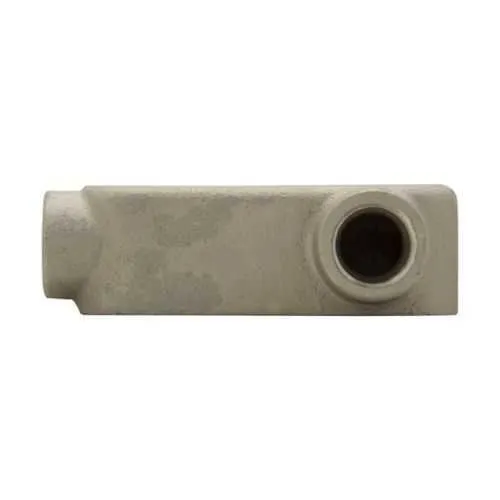

Eaton LR789 Condulet Mark 9 outlet body - NEMA 12
Part Number: LR789
Quick Summary
LR789 Condulet Mark 9 conduit outlet body is a copper-free aluminum enclosure accessory designed for 2-1/2" conduit runs in industrial and commercial wiring applications. In the field, tight spaces and complex wire pulls can slow projects and drive up labor costs; this conduit body is built to streamline those tasks. This product carries NEC/CEC standards, a NEMA 12 rating for ordinary locations, and Canadian certification, which helps reduce rework and certification gaps. By combining light weight with robust protection, it supports faster installations and longer service life, while helping maintain compliance in multi-site operations.
Product Information
Extended Description
LR789 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LR shape, 2-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LR789
UPC
782274530505
Product Length/Depth
13.94 in
Product Height
6.69 in
Product Width
4.44 in
Product Weight
5.9 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
2-1/2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LR789
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Copper-free aluminum construction reduces weight and minimizes corrosion risk, delivering safer handling and faster field assembly on busy construction sites. The business impact is lower labor effort and reduced crane and transport costs, particularly in modular or retrofit applications where weight matters. The LR shape enhances internal routing and wire pulling efficiency, which translates to shorter installation times and fewer conductor damages in constrained spaces. In practice, this means you can route cables through tight bends with confidence in 2-1/2" conduit runs in control panels, junction boxes, and machine enclosures. Compliance with NEC/CEC and a NEMA 12 rating provides reliable protection in ordinary locations, reducing rework for dust, moisture, or incidental splashes encountered in non-hazardous environments. Dimensional data—13.94 in length, 6.69 in height, 4.44 in width, and a weight of 5.9 lb—supports predictable fitment in standard racks and panels, streamlining procurement and installation planning. Documentation such as the LR789 specification sheet and IF 863 wire-pulling instructions further shorten onboarding, while Canadian certification ensures cross-border applicability in North American facilities.
Get a Quick Quote for a Eaton Crouse-Hinds LR789
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR789?
Enquire Now
FAQs
Install LR789 using standard conduit supports for 2-1/2" trade size runs. Align the body with the conduit axis, secure with compatible mounting hardware, and ensure proper sealants or gaskets if provided. Refer to IF 863 wire-pulling instructions for step-by-step guidance on pulling conductors through the LR-shaped body to minimize conductor damage and ensure code-compliant installation.
Confirm trade size (2-1/2"), material (copper-free aluminum), shape (LR), dimensions (13.94 in L, 6.69 in H, 4.44 in W), and weight (5.9 lb). Verify NEMA rating of 12 and NEC/CEC compliance to ensure suitability for ordinary locations. The UPC and catalog information (LR789) also helps with parts traceability and cross-reference in procurement systems.
Yes. The Condulet Mark 9 lineup includes Canadian certification, as indicated by UL-based Canadian compliance references. This makes LR789 appropriate for cross-border installations in facilities subject to Canadian standards, reducing rework and certification delays when sourcing from North American suppliers.
LR789 addresses wire pulling in tight spaces through its LR-shaped body, reducing friction and conductor damage. The copper-free aluminum construction lowers weight for easier handling, while the 2-1/2" trade size fits common conduit trades. Together, these features improve installation speed and reliability in control panels, junction boxes, and machine enclosures.
Key resources include the Eaton LR789 specification sheet, IF 863 instruction sheets for wire pulling, the Mark 9 catalog page, and the technical bulletins on bend radius and cubic capacity. Canadian certification documentation is also available through UL-based pages. Keeping these on hand simplifies updates, audits, and future upgrades in evolving facilities.
