Eaton LR87 Condulet Form 7 Conduit Outlet - NEMA 12
Part Number: LR87
Quick Summary
LR87 Condulet Form 7 conduit outlet body provides rugged, weatherproof junctions for industrial electrical enclosures. Installations in harsh environments often struggle with misalignment, corrosion risk, and extended field wiring times. It meets NEC/CEC standards, carries a NEMA 12 rating, and is suitable for ordinary/non-hazardous locations. This LR87 model also supports easy sourcing and reliable performance for 3-inch trade size Form 7 configurations, delivering consistency across panels and field installations. By aligning with Form 7 catalogs and standard conduit practices, it reduces fitment issues and increases first-time-right assembly, helping engineers and procurement teams streamline projects and minimize downtime.
Product Information
Extended Description

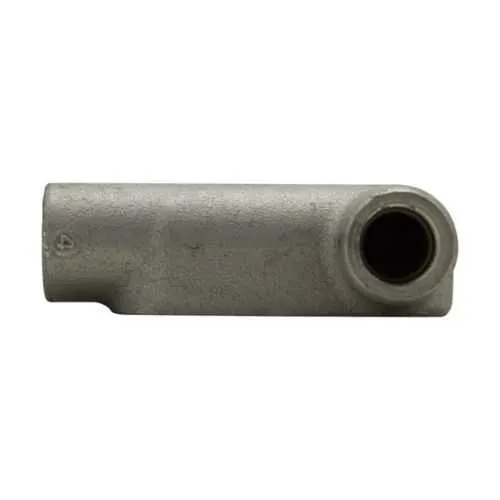

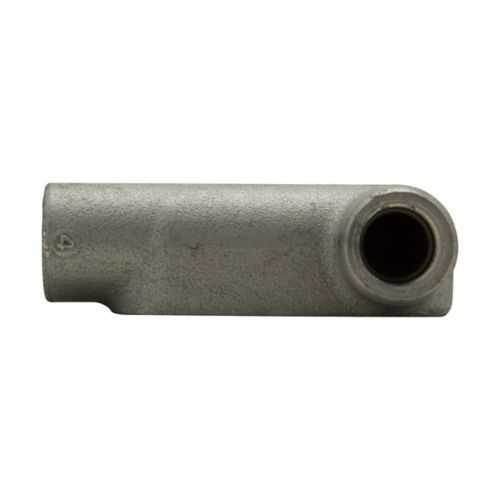

LR87 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LR shape, 3"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LR87
UPC
782274529707
Product Length/Depth
10.5 in
Product Height
5.75 in
Product Width
4.38 in
Product Weight
10.7 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
3"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - LR87
Eaton Specification Sheet - LR87
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Form 7, LR shape, and Feraloy iron alloy deliver rugged mechanical strength and corrosion resistance. Business Impact: Enhanced durability reduces replacement cycles and maintenance costs in harsh environments. Application: Ideal for heavy-use factory enclosures and outdoor-rated installations where reliability is critical. Feature: 3" trade size compatibility with Form 7 conduit bodies. Business Impact: Accelerates wiring design and field assembly, lowering installation time and labor costs. Application: Control panels and junctions requiring standard 3" conduits. Feature: NEMA 12 rating and Ordinary/Non-Hazardous Location classification. Business Impact: Provides defined protection against dust and non-corrosive liquids, ensuring regulatory compliance and safer operation. Application: Indoor plants, manufacturing floors, and non-hazardous wash-down areas. Feature: NEC/CEC standards compliance. Business Impact: Simplifies North American approvals and reduces rework during audits. Application: System designs spanning the US and Canada. Feature: Comprehensive documentation and Form 7 compatibility. Business Impact: Streamlines design validation and procurement with catalog pages and installation instructions. Application: Engineering datasheets, field training, and technician on-boarding.
Get a Quick Quote for a Eaton Crouse-Hinds LR87
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR87?
Enquire Now
FAQs
LR87 is optimized for Form 7 conduit applications in industrial control panels and enclosures. Its 3" trade size, Feraloy iron alloy body, and NEMA 12 rating make it ideal for rugged environments where reliable conduit termination and protection against dust and non-hazardous liquids are required. This combination supports quick field assembly, predictable fit, and long service life with minimal maintenance.
LR87 adheres to NEC/CEC standards for North American electrical installations, ensuring compliant wiring practices. The NEMA 12 rating provides protection for non-hazardous indoor locations against dust and light splash, making it suitable for factory floors and general-purpose enclosures. Pairing regulatory compliance with durable construction helps reduce audit concerns and retrofit risk.
Yes, LR87 leverages a Feraloy iron alloy body designed for rugged use, offering improved strength and resistance to corrosion relative to standard cast conduit bodies. While it is rated for ordinary/non-hazardous locations, its robust material and Form 7 design support reliable operation in challenging environments, provided the application stays within the NEMA 12 scope.
For safe, code-compliant installation, reference the IF 964 Conduit Body Wire Pulling instruction sheet and the Form 7 catalog pages. Prepare the conduit entries, apply appropriate seals or gaskets, and secure with compatible covers. Follow torque recommendations and verify clearances to ensure easy future maintenance. The included installation guides streamline field assembly and help avoid common misalignment issues.
Investing in LR87 yields measurable ROI through reduced installation time, lower maintenance needs due to durable Feraloy construction, and assured regulatory compliance with NEC/CEC and NEMA 12. The 3" trade-size compatibility minimizes sourcing complexity, while the robust design decreases downtime and extends service life in non-hazardous industrial environments.
