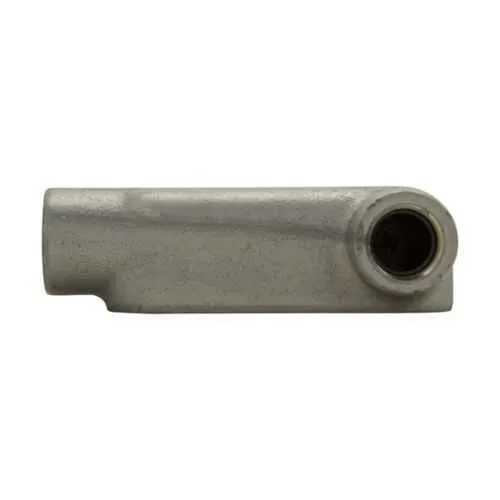

Eaton Crouse-Hinds LR888 Condulet Form 8 - NEMA 12
Part Number: LR888
Quick Summary
Eaton Crouse-Hinds LR888 Condulet Form 8 conduit outlet body provides a robust enclosure interface for 3-inch conduits in industrial panels. Engineers often face compatibility gaps and certification delays that slow projects and raise risk in field installs. This LR888 is NEC/CEC compliant, with a NEMA 12 rating, and UL Canada certification evidence, suitable for Ordinary/Non-Hazardous locations. Using Form 8, the LR888 simplifies connections in standard conduit runs while the Feraloy iron alloy construction delivers long service life and reliable performance. This combination reduces maintenance, accelerates installation, and supports consistent, compliant outcomes across industrial facilities.
Product Information
Extended Description
LR888 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body, Feraloy iron alloy, LR shape, 3"
Product Name
Eaton Crouse-Hinds series Condulet Form 8 conduit outlet body
Catalog Number
LR888
UPC
782274530604
Product Length/Depth
13.94 in
Product Height
6.69 in
Product Width
4.81 in
Product Weight
15.38 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
3"
Material
Feraloy iron alloy
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Form 8 Conduit Outlet Bodies Canadian certification
Condulet Form 8 Conduit Outlet Bodies Canadian certification
IF 964 - Conduit Body Wire Pulling
IF 964 - Conduit Body Wire Pulling
Eaton Specification Sheet - LR888
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feraloy iron alloy body provides rugged durability and high temperature resistance, which lowers corrosion risk and reduces maintenance costs in harsh industrial environments. This translates to longer service intervals, less downtime, and predictable performance in control panels and field junctions. Application: use in Form 8 conduit configurations for reliable protection of wiring routes and simplified field wiring in electrical enclosures. The LR shape and 3-inch trade size deliver a standardized footprint across conformity to form 8 fittings, enabling faster design-in and easier inventory management at the plant level. With a weight of 15.38 lb and dimensions of 13.94 in length by 6.69 in height and 4.81 in width, planners can optimize space and cable pull planning in tight spaces. The design supports NEC/CEC compliance and NEMA 12 protection, giving engineers confidence for ordinary locations and non-hazardous environments. Compatibility with Eaton catalogs and installation sheets (IF 964) streamlines procurement, installation, and long-term maintenance.
Get a Quick Quote for a Eaton Crouse-Hinds LR888
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR888?
Enquire Now
FAQs
LR888 is a Form 8 LR-conduit outlet body designed for 3-inch trade-size conduits. It aligns with standard Condulet Form 8 fittings and conforms to installation sheets like IF 964, enabling straightforward pull and connector alignment. This compatibility reduces field adaptation time and minimizes the risk of mismatched parts during panel wiring and enclosure provisioning.
LR888 features a 3 inch trade size, Form 8 LR shape, is built from Feraloy iron alloy, and measures 13.94 inches in length, 6.69 inches in height, and 4.81 inches in width with a weight of 15.38 pounds. These specs support robust enclosure interfaces, stable mounting, and predictable cable routing for commercial and industrial applications.
Yes. LR888 carries a NEMA 12 rating and is designated for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards. It is well-suited for control panels and non-hazardous enclosure environments where reliable protection of wiring interfaces is important without the complexities of hazardous-area certifications.
LR888 is NEC/CEC compliant and rated NEMA 12, with UL Canadian certification evidence documented in the Condulet Form 8 product suite. This combination supports cross-border usage, ensuring regulatory alignment for global projects and helping avoid rework during audits.
The Form 8 LR888 reduces installation time by providing a standardized, compatible conduit outlet body that aligns with common Form 8 fittings and pull-in criteria. Durable Feraloy iron alloy construction lowers maintenance needs, extends service life, and minimizes part replacements, contributing to lower total cost of ownership in industrial facilities.
