Eaton Crouse-Hinds LR889 Condulet Mark 9 - NEMA 12
Part Number: LR889
Quick Summary
LR889 Condulet Mark 9 conduit outlet body provides a copper-free aluminum, LR‑shaped solution for secure conduit access in industrial enclosures. Engineers often grapple with heavy fittings, tight spaces, and recurring code-compliance gaps during installation. It meets NEC/CEC standards, carries a NEMA 12 rating for dust and moisture protection, and holds Canadian certification for metallic outlet boxes—critical for cross-border projects. The design supports a 3 inch trade size and integrates smoothly with Condulet Mark 9 systems, improving field footing while reducing assembly time. By pairing copper-free aluminum with proven installation data and a robust wire-fill reference, it enables reliable wiring access with fewer callouts and faster project turnover.
Product Information
Extended Description

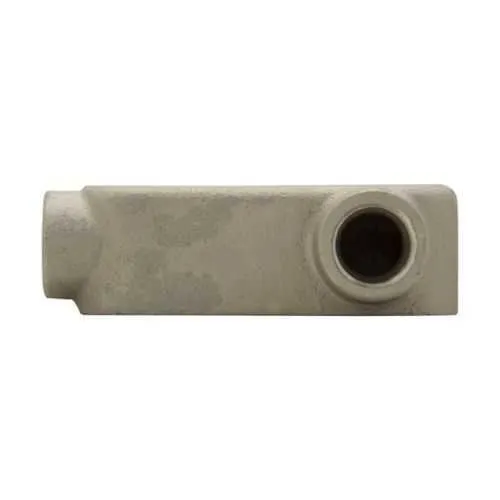

LR889 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LR shape, 3"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LR889
UPC
782274530703
Product Length/Depth
13.94 in
Product Height
6.69 in
Product Width
4.81 in
Product Weight
6.4 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
3"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LR889
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Copper-free aluminum construction reduces weight and enhances corrosion resistance, improving installation efficiency on busy job sites. The LR889 weighs 6.4 lb, making handling easier in confined spaces and enabling safer, faster assembly with fewer manpower requirements. The LR shape and 3 inch trade size provide compatibility with standard conduit and box configurations, allowing quick routing and reducing the need for adapters or rework. These design choices translate into tangible time savings and lower material waste for budget-conscious projects. Compliance with NEC/CEC and a NEMA 12 rating ensures safe operation in ordinary locations, minimizing risk and costly non-compliance penalties while supporting cross-border projects through Canadian certifications. The 13.94 in length, 6.69 in height, and 4.81 in width optimize enclosure footprint and wire pulling space, improving overall wiring density. Accessory compatibility with Condulet Mark 9 systems and standard installation provisions reduces training and speeds up field upgrades. Installation sheets like IF 863 provide clear wire-pulling guidance, helping teams avoid damage during pulls and trim installation time. For ongoing maintenance, easy access to catalogs and datasheets supports smooth lifecycle management and upfit planning.
Get a Quick Quote for a Eaton Crouse-Hinds LR889
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR889?
Enquire Now
FAQs
LR889 is designed for 3 inch trade size conduit with an LR-shaped body. Installers should reference IF 863 for wire pulling and ensure compatible Condulet Mark 9 accessories are selected. The copper-free aluminum construction aids handling and reduces weight, while NEC/CEC compliance and NEMA 12 ratings ensure code alignment in ordinary locations.
LR889 supports standard 3 inch trade-size runs and aligns with Eaton's wire fill guidance. The catalog data and technical bulletins provide fill charts that help determine conductor count and gauge. This minimizes overfilling, reduces the risk of insulation damage, and speeds up planning during enclosure wiring.
Yes. LR889 carries NEC/CEC compliance and a NEMA 12 rating, designed for ordinary locations. Its Canadian certification support further assists cross-border installations, reducing the need for redesigns or additional approvals on multi-region projects.
Copper-free aluminum offers excellent corrosion resistance and a lighter overall weight than steel, improving ease of handling and reducing transport costs. It also maintains strength for enclosure connections and contributes to longer service life in demanding environments, with fewer maintenance interruptions.
LR889 reduces field time through easier installation, lighter weight, and fewer adapters due to compatible LR-shaped design and 3 inch trade size. Its NEC/CEC and NEMA 12 compliance lower rework risk and regulatory delays, while UL-listed Canadian certifications support cross-border projects, collectively contributing to lower lifecycle costs and faster project turnover.
