Eaton LR97 Conduit Outlet Body - NEMA 12
Part Number: LR97
Quick Summary
Eaton LR97 Conduit Outlet Body offers rugged Form 7 termination for industrial electrical installations. Engineers often struggle with bulky fittings and misaligned assemblies that slow wire pulls and increase maintenance downtime. This conduit body meets NEMA 12 and NEC/CEC standards with Canadian certifications, supporting cross-border builds. The LR shape and 3-1/2 inch trade size enable compact, versatile routing in confined panels. With durable Feraloy iron alloy construction, it delivers long service life and predictable performance, helping you reduce field service costs. Secondary benefits include easier access for maintenance and straightforward compatibility with Condulet Form 7 catalogs.
Product Information
Extended Description

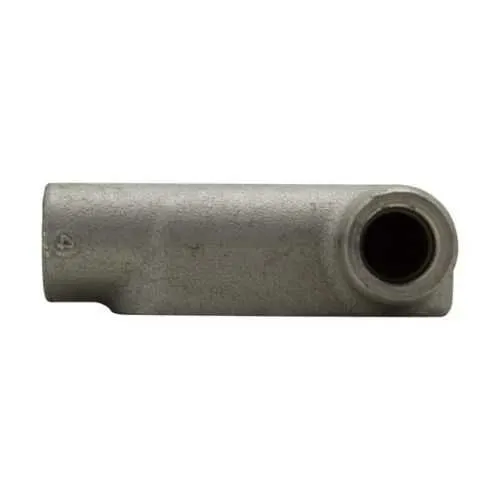

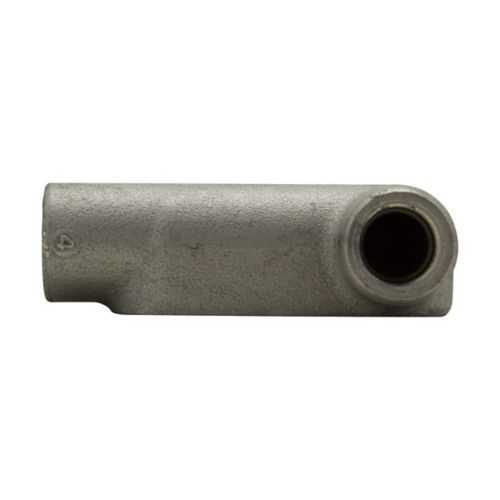

LR97 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body, Feraloy iron alloy, LR shape, 3-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Form 7 conduit outlet body
Catalog Number
LR97
UPC
782274529806
Product Length/Depth
12.69 in
Product Height
6.94 in
Product Width
4.88 in
Product Weight
14.73 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
3-1/2"
Material
Feraloy iron alloy
Crouse-Hinds series Form 7 catalog page
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
Condulet Form 7 Conduit Outlet Bodies and Covers Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Condulet Form 7 Industrial Grade Conduit Bodies
Condulet Form 7 Industrial Grade Conduit Bodies
Industrial Fittings Bend Radius and Cubic Capacity Chart
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feraloy iron alloy construction delivers exceptional durability and corrosion resistance in demanding environments, reducing replacement and maintenance cycles. In industrial panels and outdoor installations where vibration and temperature variation are common, LR97 withstands harsh conditions and extends service life. Form 7 LR shape enables easy wire pulling through elbows and straight runs, minimizing installation time and risk of conductor damage. This geometry also improves panel access and compatibility with standard bending radii, making it ideal for retrofit projects and upgrades. Trade size of 3-1/2 inches supports common conduit configurations in mid-sized control panels, reducing the need for adapters. The LR97's dimensions balance space efficiency with capacity, helping designers keep enclosures compact without sacrificing access. NEMA 12 rating ensures enclosure protection in ordinary locations, including dust and ingress control, while remaining suitable for indoor service. For projects requiring NEC/CEC compliance, LR97 provides reliable conformity with safety and performance standards. NECA/UL certifications further simplify procurement for cross-border builds. At 12.69 in long, 6.94 in high, and 4.88 in wide, with a 14.73 lb weight, LR97 fits typical mechanical drawings and inventory planning, aiding shipping and field installation planning.
