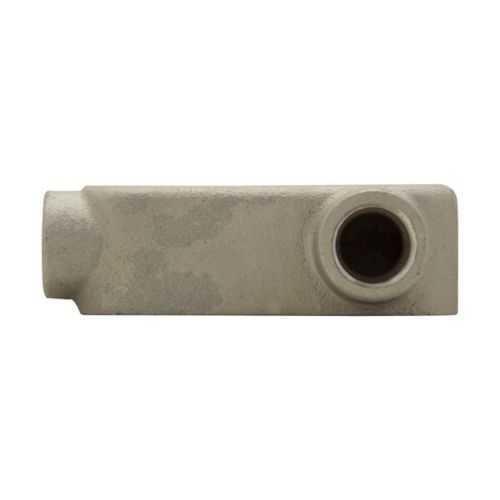

Eaton Crouse-Hinds LR989 Condulet Mark 9 - NEMA 12
Part Number: LR989
Quick Summary
LR989 is a Condulet Mark 9 conduit outlet body designed by Eaton Crouse-Hinds for copper-free aluminum LR-form conduits used in industrial wiring. In many installations, engineers wrestle with tight spaces, awkward wire pulls, and weight burdens that slow progress. This unit's LR shape, 3-1/2 inch trade size, and lightweight material address those challenges, simplifying alignment and installation. It meets NEC/CEC standards and carries a NEMA 12 rating for protection in ordinary or non-hazardous locations, ensuring compliance during audits. Canadian certification references add an extra layer of confidence for cross-border projects. With durable construction and readily available installation instructions, it delivers faster commissioning, reduced labor costs, and predictable performance in Wiring & Connectivity applications across industrial facilities.
Product Information
Extended Description
LR989 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body, Copper-free aluminum, LR shape, 3-1/2"
Product Name
Eaton Crouse-Hinds series Condulet Mark 9 conduit outlet body
Catalog Number
LR989
UPC
782274530802
Product Length/Depth
16.88 in
Product Height
8.13 in
Product Width
5.69 in
Product Weight
8.35 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
12
Shape
LR
Trade size
3-1/2"
Material
Copper-free aluminum
Crouse-Hinds series Form 8 and Mark 9 catalog page
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
Condulet Mark 9 Conduit Outlet Bodies Canadian certification
IF 863 - Conduit Body Wire Pulling
IF 863 - Conduit Body Wire Pulling
Eaton Specification Sheet - LR989
Industrial Fittings Wire Fill Chart
Industrial Fittings Wire Fill Chart
Feature: Copper-free aluminum construction. Business Impact: Reduces weight and corrosion risk, lowering handling time and maintenance. Application: Ideal for overhead runs and panel installations in industrial settings. Feature: LR shape and 3-1/2 inch trade size. Business Impact: Standardized dimensions improve compatibility with a broad range of conduit fittings, reducing rework. Application: Suitable for mid-sized control panels and installations requiring consistent stock. Feature: NEMA 12 rating. Business Impact: Provides dust and splash protection for ordinary locations, lowering risk of ingress in typical facilities. Application: Enclosures, panels, and switchgear housings in manufacturing floors. Feature: NEC/CEC compliance. Business Impact: Streamlines design, inspection, and procurement with recognized standards. Application: North American electrical installations across facilities. Feature: Dimensions and weight specification. Business Impact: Clear footprint aids planning, shipping, and on-site handling, reducing installation surprises. Application: Field deployments with space constraints. Feature: Documentation and support availability. Business Impact: Quick access to specs and wiring guidance reduces errors and rework. Application: Field technicians and procurement teams relying on official datasheets and charts.
Get a Quick Quote for a Eaton Crouse-Hinds LR989
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LR989?
Enquire Now
FAQs
LR989 is a copper-free aluminum conduit outlet body in LR form with a 3-1/2 inch trade size, designed to align with standard Condulet Mark 9 fittings. Its overall length of 16.88 inches, height of 8.13 inches, and width of 5.69 inches ensure straightforward mounting and predictable clearance in typical control panels.
LR989 carries a NEMA 12 rating, providing protection against dust and splash exposure in ordinary locations. This aligns with NEC/CEC standards, supporting reliable operation in general industrial facilities, control panels, and equipment enclosures without requiring hazardous-location specifications.
Official resources include the IF 863 conduit body wire pulling instruction sheets, the LR989 specification sheet, and the Crouse-Hinds Form 8/Mark 9 catalog page. These documents provide wire fill guidance, mounting recommendations, and compatibility notes to minimize field errors during conduit pull and fitting assembly.
Copper-free aluminum reduces weight, easing handling and installation, while offering corrosion resistance for longer service life. The standard 3-1/2 inch trade size and precise dimensions enable consistent stock management and faster commissioning, translating into lower labor costs and reduced maintenance needs in Wiring & Connectivity installations.
Official resources include the Eaton LR989 specification sheet, the Crouse-Hinds catalog page for Form 8 and Mark 9, wire fill charts, and UL Canada certification references. You can also access installation sheets such as IF 863, enabling compliant wiring and accessible documentation for audits and field use.
