Eaton LT10090NM Non-metallic Liquidtight Connector - FMC
Part Number: LT10090NM
Quick Summary
LT10090NM is a non-metallic liquidtight connector designed for secure conduit entries in hazardous locations. For installers, the challenge is selecting a fitting that meets NEC/CEC requirements while withstanding harsh industrial environments. This LT10090NM carries NEC hazardous location ratings including Class I Division 2 and supports Class II and Class III environments, aligning with NEC/CEC compliance. The gray nylon construction offers chemical resistance and durability, while the 1" trade size and 90° elbow simplify routing in restricted spaces. By choosing a compliant, rugged fitting, engineering teams can reduce troubleshooting, shorten installation time, and improve overall system reliability in hazardous-area automation and safety-critical applications.
Product Information
Extended Description

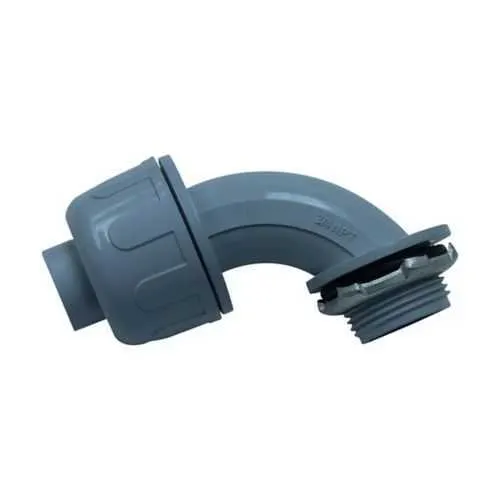

LT10090NM Eaton Crouse-Hinds: Eaton Crouse-Hinds series non-metallic liquidtight connector, Gray, FMC, 90° angle, Nylon, 1"
Product Name
Eaton Crouse-Hinds series non-metallic liquidtight connector
Catalog Number
LT10090NM
UPC
662277003582
Product Length/Depth
4.13 in
Product Height
3.13 in
Product Width
4.13 in
Product Weight
0.16 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Color
Gray
Trade size
1"
Material
Nylon
Crouse-Hinds series Non-metallic Liquidtight Fittings catalog page
Non-metallic Liquidtight Fittings Canadian certification
Non-metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LT10090NM
Feature 90° angle design provides space-saving terminations; Business Impact reduces elbow bends and installation time, improving layout flexibility; Application panel or enclosure conduit entries in constrained spaces. Feature Nylon construction offers chemical resistance and non-metallic containment; Business Impact lowers corrosion risk and extends service life, reducing replacement costs; Application suitable for moisture-prone or chemical-exposure environments. Feature 1" trade size standardizes compatibility with common FMC conduits; Business Impact simplifies procurement and field installs, accelerating project timelines; Application applies to typical industrial control panels and junction enclosures. Feature Gray color enhances visibility for labeling and diagnostics; Business Impact aids quick identification in dense electrical rooms, cutting down commissioning time; Application across complex automation installations. Feature Hazardous location ratings and NEC/CEC compliance provide regulatory assurance; Business Impact reduces inspection findings and risk, supporting safer, compliant deployments; Application ideal for Class I Division 2, Class II/III environments and cross-border projects. Feature Overall compatibility with Eaton Crouse-Hinds non-metallic fittings and installation guidelines offers proven reliability; Business Impact minimizes compatibility issues and warranty questions, lowering lifecycle costs; Application fits ongoing maintenance programs and retrofit projects in harsh industrial settings.
Get a Quick Quote for a Eaton Crouse-Hinds LT10090NM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LT10090NM?
Enquire Now
FAQs
LT10090NM is designed for FMC conduit terminations in industrial facilities, including electrical panels and enclosures. It supports a 1" trade size and is suitable for Class I Division 2, Class II and III hazardous locations under NEC/CEC standards, making it a reliable choice for cross-border projects.
The LT10090NM carries NEC hazardous location ratings and NEC/CEC compliance, aligning with Class I Division 2 and related Class II/III classifications. This ensures safe electrical terminations in hazardous environments and simplifies regulatory inspections and documentation for industrial installations.
LT10090NM is specified for hazardous locations and non-metallic liquidtight applications. While it provides chemical and environmental resistance, consult Eaton installation guidelines for environmental ratings beyond indoor hazardous locations and consider additional weather-rated fittings if exposure to outdoor or wet conditions is a factor.
Ensure the connector matches the FMC conduit size and that the 90° elbow is properly aligned to minimize bending stress. Use the recommended nylon fittings in compatible enclosures, follow the Eaton installation guidelines, and verify the gasket and seal are intact to maintain integrity in harsh environments.
Using LT10090NM reduces maintenance downtime through reliable sealing and fewer field terminations. Its rugged nylon construction and NEC/CEC compliance lower lifecycle costs by minimizing replacements, speeding up installations, and simplifying inspections in safety-critical automation systems.
