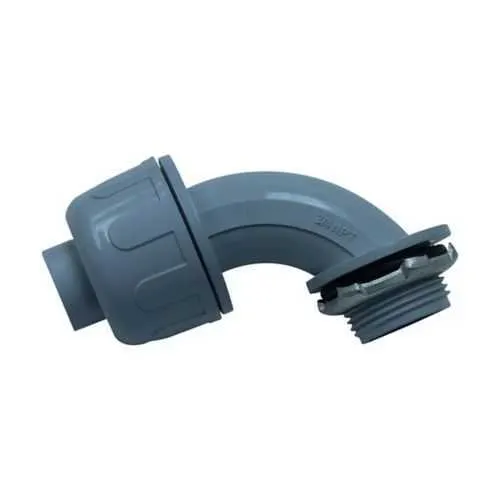

Eaton LT15090NM Non-Metallic Connector - Hazardous
Part Number: LT15090NM
Quick Summary
LT15090NM is a non-metallic liquidtight connector designed for FMC conduit systems in hazardous locations. Engineers often wrestle with sealing integrity and tight space constraints in harsh environments. It delivers NEC/CEC compliance with hazardous-location ratings and UL certifications, providing confidence for both design and field installs. This 90° connector features a nylon body in gray, a 1-1/2" trade size, and a compact footprint that simplifies panel routing and wire management. With a 5.2 in body length and 0.4 lb weight, it combines robust protection with ease of handling during installation and maintenance.
Product Information
Extended Description
LT15090NM Eaton Crouse-Hinds: Eaton Crouse-Hinds series non-metallic liquidtight connector, Gray, FMC, 90° angle, Nylon, 1-1/2"
Product Name
Eaton Crouse-Hinds series non-metallic liquidtight connector
Catalog Number
LT15090NM
UPC
662277032278
Product Length/Depth
5.2 in
Product Height
4.75 in
Product Width
5.2 in
Product Weight
0.4 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Color
Gray
Trade size
1-1/2"
Material
Nylon
Crouse-Hinds series Non-metallic Liquidtight Fittings catalog page
Non-metallic Liquidtight Fittings UL certification
Non-metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LT15090NM
Feature: 90° angle design for tight-space routing → Business Impact: enables compact panel layouts and reduces bending strain on cables, lowering installation time and potential damage during wiring → Application: control panels, motor starters, and equipment enclosures in automated systems. Feature: Nylon body with chemical resistance → Business Impact: delivers long-term durability and resistance to oils and solvents common in industrial plants → Application: conveyors, process lines, and hazardous-area equipment. Feature: 1-1/2" trade size with FMC compatibility → Business Impact: minimizes adapters and stock variety, speeding procurement and wiring trips → Application: standard industrial conduit runs in moving machinery. Feature: Hazardous location ratings with NEC/CEC compliance → Business Impact: ensures regulatory alignment and safer operation across facilities → Application: Class I, Division 2 and related classifications in chemical plants. Feature: UL/certification alignment for US/Canada → Business Impact: reduces validation time for audits and expedites commissioning → Application: multi-site installations requiring formal approvals. Feature: Lightweight, clearly defined footprint (5.2 in length, 0.4 lb) → Business Impact: simpler handling and faster maintenance cycles, lowering lifecycle costs → Application: frequent inspection zones and high-mobility cabinet setups.
Get a Quick Quote for a Eaton Crouse-Hinds LT15090NM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LT15090NM?
Enquire Now
FAQs
LT15090NM is designed for FMC conduit connections in hazardous environments, including Class I, Division 2 locations. It provides a secure 90° connection with a nylon body, helping maintain explosion-protected seals while simplifying panel routing and cable management in process plants and chemical facilities.
Yes. The LT15090NM carries NEC/CEC compliance along with hazardous-location ratings and UL certifications, ensuring regulatory alignment for US and Canadian installations. This reduces validation time during audits and supports cross-site deployments across industrial facilities.
LT15090NM supports FMC conduit and features a 90° angle for tight-space installations. The gray nylon body supports standard 1-1/2" trade size fittings, enabling straightforward routing in compact control panels and equipment enclosures.
By providing a robust, chemically resistant nylon body and a sealed, non-metallic assembly, LT15090NM reduces ingress paths and environmental exposure. Its hazardous-location rating and NEC/CEC compliance enhance safety and reliability in demanding environments, minimizing downtime due to seals or fittings failures.
LT15090NM is designed for FMC conduit with a standardized 1-1/2" trade size, gray nylon construction, and a 90° bend. For maintenance, verify alignment with NEC/CEC requirements and UL certifications during audits, and ensure compatible FMC fittings and gaskets are used to preserve the liquidtight integrity.
