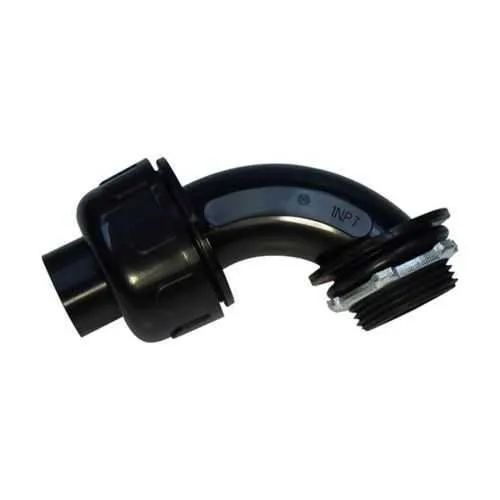

LT15090NMBL Non-metallic Liquidtight Connector - 90° FMC
Part Number: LT15090NMBL
Quick Summary
LT15090NMBL non-metallic liquidtight connector protects cables in hazardous locations with secure, moisture-resistant terminations. In real-world installations, engineers wrestle with maintaining seals and meeting NEC/CEC requirements under harsh conditions. This fitting is rated for Hazardous/Classified Locations and supports NEC Class I Division 2, along with Class II/III provisions, with cross-border certification. Its nylon body and 1-1/2 inch trade size suit FMC conduit systems while delivering installer-friendly assembly and long service life. By combining robust protection with straightforward installation, it reduces maintenance and downtime for industrial automation applications.
Product Information
Extended Description
LT15090NMBL Eaton Crouse-Hinds: Eaton Crouse-Hinds series non-metallic liquidtight connector, Black, FMC, 90° angle, Nylon, 1-1/2"
Product Name
Eaton Crouse-Hinds series non-metallic liquidtight connector
Catalog Number
LT15090NMBL
UPC
662277032353
Product Length/Depth
5.2 in
Product Height
4.75 in
Product Width
5.2 in
Product Weight
0.38 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Color
Black
Trade size
1-1/2"
Material
Nylon
Crouse-Hinds series Non-metallic Liquidtight Fittings catalog page
Non-metallic Liquidtight Fittings Canadian certification
Non-metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LT15090NMBL
Feature design and material selection enable tangible business outcomes. Feature: 90° angle design optimizes space-constrained panel layouts; Business Impact: minimizes enclosure footprint and wiring bend radius, accelerating panel wiring and reducing installation time in machine control cabinets; Application: compact automation panels and robotics control boxes. Feature: Nylon construction provides chemical and impact resistance; Business Impact: extends service life in dirty, oily environments and lowers replacement costs; Application: general purpose fittings in manufacturing lines. Feature: FMC conduit compatibility removes the need for adapters and reduces part counts; Business Impact: streamlines procurement and speeds field installs in process automation systems; Application: motor starters, OEM equipment, and field-installed control panels. Feature: Hazardous Location rating with NEC/CEC compliance; Business Impact: meets compliance requirements, reducing regulatory risk and enabling safer, code-compliant installations; Application: equipment in Class I Division 2 and other classified locations. Feature: 1-1/2 inch trade size and 0.38 lb weight with a 5.2 in length; Business Impact: manageable weight for quick handling and tooling, lowering labor costs; Application: large-diameter FMC conduit terminations in industrial facilities. Feature: Color and finish characteristics support visibility and durable labeling in harsh environments; Business Impact: improves maintenance traceability and reduces misidentification; Application: field service and ongoing system diagnostics.
Get a Quick Quote for a Eaton Crouse-Hinds LT15090NMBL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LT15090NMBL?
Enquire Now
FAQs
To maximize reliability, use the 1-1/2 inch trade size with proper FMC conduit mating, ensure the 90° angle is positioned to minimize bending stress, and maintain a clean interface between the nylon body and the conduit. Apply appropriate strain relief and verify the seal integrity after assembly to prevent moisture ingress in harsh environments.
LT15090NMBL is designed for Hazardous/Classified Locations and aligns with NEC/CEC standards. It also carries cross-border certification indications suitable for Canadian use, addressing regulatory requirements in both the US and Canada for industrial automation installations using FMC fittings.
Yes. The connector is rated for Hazardous/Classified Locations with NEC Class I, Division 2 (and related Class II/III) provisions, making it appropriate for equipment and control panels installed in Class I Division 2 environments where hazardous atmospheres may be present.
Key benefits include a secure 90° termination that saves space, a nylon body offering chemical resistance and durability, and a streamlined fit for FMC conduit without extra adapters. These factors reduce downtime, simplify maintenance, and ensure code-compliant, long-lasting reliability in industrial automation settings.
Investing in LT15090NMBL reduces maintenance cycles and downtime by delivering a robust seal in harsh environments, lowers part counts through FMC compatibility, and accelerates installation in constrained spaces. Over time, this translates to lower labor costs, fewer field failures, and improved system uptime in manufacturing and process facilities.
