Eaton LT20090NM Non-Metallic Liquidtight - Hazardous
Part Number: LT20090NM
Quick Summary
LT20090NM is a non-metallic liquidtight connector for FMC conduit in hazardous industrial environments. Manufacturers and maintenance teams often struggle with ensuring a reliable seal and code compliance in harsh locations. This Eaton Crouse-Hinds product carries NEC/CEC standards and hazardous-location ratings, including Class I Division 2 and Class II/III classifications, providing safer, compliant installations. By delivering a lightweight nylon solution with space-efficient 90° elbow geometry, LT20090NM helps reduce field labor, cut rework, and simplify panel routing. In addition to dependable performance in control panels and equipment enclosures, the connector aligns with broader procurement goals for durable, long-life electrical fittings suitable for demanding environments.
Product Information
Extended Description

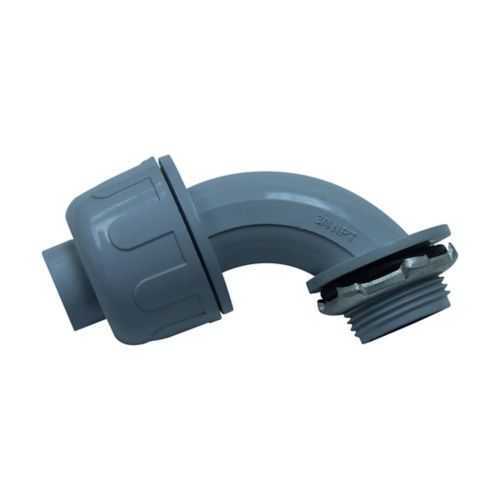

LT20090NM Eaton Crouse-Hinds: Eaton Crouse-Hinds series non-metallic liquidtight connector, Gray, FMC, 90° angle, Nylon, 2"
Product Name
Eaton Crouse-Hinds series non-metallic liquidtight connector
Catalog Number
LT20090NM
UPC
662277032285
Product Length/Depth
5.8 in
Product Height
5.42 in
Product Width
5.42 in
Product Weight
0.5 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Color
Gray
Trade size
2"
Material
Nylon
Crouse-Hinds series Non-metallic Liquidtight Fittings catalog page
Non-metallic Liquidtight Fittings Canadian certification
Non-metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LT20090NM
Feature design delivers a compact 90° elbow for FMC conduit, reducing space requirements and simplifying panel routing. Business impact includes faster installations, fewer field misalignments, and lower labor costs during startups. Application is ideal for control cabinets, junction boxes, and equipment enclosures where space is constrained and reliable sealing is essential. Feature nylon construction offers chemical resistance and lightweight handling, translating to lower crew fatigue and improved field reliability (longer service life, less maintenance). Application-specific benefit centers on hazardous-location safety, with area-classified ratings supporting NEC/CEC compliance in Class I, II, and III environments. Feature 2" trade size and gray color support standardization and visual identification across industrial bays, while FMC compatibility ensures seamless integration with common conduit systems. This combination reduces part diversification and boosts installation consistency in automated facilities.
Get a Quick Quote for a Eaton Crouse-Hinds LT20090NM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LT20090NM?
Enquire Now
FAQs
LT20090NM is designed for FMC conduit connections with a 2" trade size and a 90° elbow, suitable for compact panel routing in industrial automation. It provides a gray nylon, non-metallic construction suitable for hazardous locations, and pairs with standard FMC fittings for quick, reliable terminations.
LT20090NM carries area classification for Hazardous/Classified Locations and NEC/CEC standards. It is rated for Class I, Division 2 and Class II, Division 1/2 as well as Class III environments, ensuring code-compliant installations in demanding industrial settings.
The 90° elbow design reduces the number of fittings and routing complexity, speeding up installs and minimizing leakage paths. Its lightweight nylon construction lowers handling fatigue, while NEC/CEC compliance and hazardous-location ratings reduce rework risk and improve overall system safety.
Its gray nylon, non-metallic body provides reliable liquidtight sealing and chemical resistance, paired with a 2" trade size for standard FMC applications. The product’s Class I/II/III ratings and NEC/CEC compliance make it a robust choice for control panels in hazardous locations.
Expect tight spaces in panel layouts; plan routing with the 90° elbow to minimize fitting count. Verify FMC conduit compatibility, ensure proper gasket or seal where applicable, and confirm the installation site meets the required hazardous-location ratings (Class I/II/III). Following these steps reduces rework and enhances safety.
