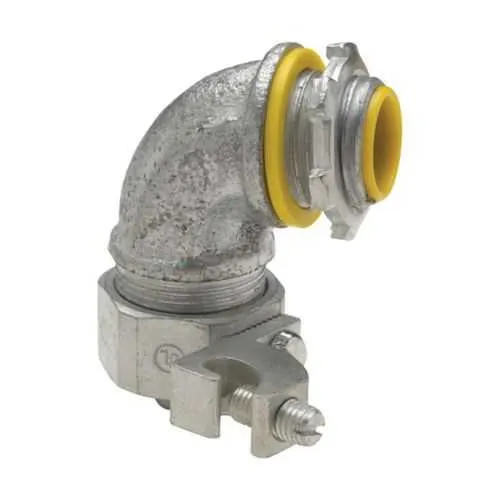

Eaton LT3890G Liquidator Liquidtight Connector - Hazardous
Part Number: LT3890G
Quick Summary
LT3890G Liquidator liquidtight connector provides rugged FMC terminations for hazardous-location electrical installations. Installers confront tight spaces, corrosion, and grounding complexity; this connector simplifies routing and improves reliability in demanding environments. It carries NEC/CEC compliance and is rated for Hazardous/Classified Locations, including Class I Division 2, Class II Division 1 and 2, and Class III. With a malleable iron body, aluminum ground lug, and a 3/8-inch trade-size lug, the solution reduces field rework and accelerates project timelines. Operators benefit from consistent performance in dusty, wet, or explosive atmospheres thanks to the rugged construction and proven Eaton Crouse-Hinds lineage.
Product Information
Extended Description
LT3890G Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Aluminum ground lug, Non-insulated, #4-14 AWG lug size, Malleable iron, 3/8"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LT3890G
UPC
784564260406
Product Length/Depth
1.81 in
Product Height
1.81 in
Product Width
1.13 in
Product Weight
0.3 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Non-insulated
Trade size
3/8"
Ground lug material
Aluminum
Lug size
#4-14 AWG
Eaton Crouse-Hinds LT3890G 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LT3890G
Feature: 90° liquidtight FMC design enables tight-panel routing and reduced bend points, accelerating panel wiring and reducing install time. Business impact: faster HVAC, machine, and control-panel assemblies with fewer parts and fewer field adjustments. Application: control cabinets in harsh manufacturing environments where space is at a premium. Feature: Ground lug material is aluminum with a #4-14 AWG lug size and a 3/8" trade size, delivering reliable grounding and compatibility with common conductors. Business impact: improved safety margins and faster grounding checks during commissioning. Application: hazardous-location equipment housings and motor starters. Feature: Material is malleable iron with a non-insulated insulator, providing robust mechanical strength and resistance to impact. Business impact: longer service life with fewer replacement fittings; lower maintenance costs. Application: industrial automation and heavy-duty equipment enclosures. Feature: NEC/CEC certifications and NEC hazardous ratings (Class I Division 2, Class II Division 1 & 2, Class III) ensure compliance and safer operations. Business impact: procurement confidence, reduced regulatory risk, and smoother audits. Application: oil & gas, chemical, and mining facilities. Feature: 90° angle and FMC compatibility simplify design integration with existing liquidtight systems and CAD libraries. Business impact: streamlined engineering workflows, faster time-to-market for projects. Application: new-build or retrofit installations. Feature: Lightweight footprint (0.3 lb) with compact dimensions (1.81 in length and height, 1.13 in width). Business impact: easier handling in tight spaces and less support hardware; cost-effective logistics. Application: panel builders and field technicians handling multiple fittings per job. Feature: Availability of CAD drawings, catalogs, and specification sheets (3D CAD, catalog page, and Eaton spec sheet) facilitates seamless integration into electrical designs. Business impact: reduces modeling errors and speeds up procurement and fabrication timelines. Application: engineering design and procurement teams working on hazardous-location installations.
Get a Quick Quote for a Eaton Crouse-Hinds LT3890G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LT3890G?
Enquire Now
FAQs
LT3890G accepts FMC conduit with a lug size of #4-14 AWG and a 3/8 inch trade size. The ground lug is aluminum, and the overall footprint supports compact installations in control panels and equipment enclosures. This combination simplifies wiring, grounding, and field assembly, reducing the need for adapters or rework.
Yes. LT3890G carries NEC hazardous ratings including Class I Division 2, along with Class II Division 1 and 2, and Class III, and is suitable for Hazardous/Classified Locations. This enables compliant installation in regulated facilities like oil and gas or chemical processing plants while maintaining reliable FMC terminations.
The 90° angle reduces the number of bends and makes routing within tight panels easier, cutting assembly time. Its non-insulated, malleable iron body provides rugged durability, while the aluminum ground lug ensures solid grounding. Together, these features minimize rework, speed up commissioning, and improve overall panel reliability.
LT3890G is manufactured to NEC/CEC standards and is rated for Hazardous/Classified Locations. Its NEC hazardous ratings cover Class I Division 2, Class II Division 1 and 2, and Class III, supporting compliance and safe operation in industrial and hazardous environments.
You can access 3D CAD drawings, the Crouse-Hinds liquidtight catalog page, and Eaton specification sheets for LT3890G from the provided downloads. These assets help integrate the connector into electrical designs, verify fitment, and accelerate procurement and installation planning.
