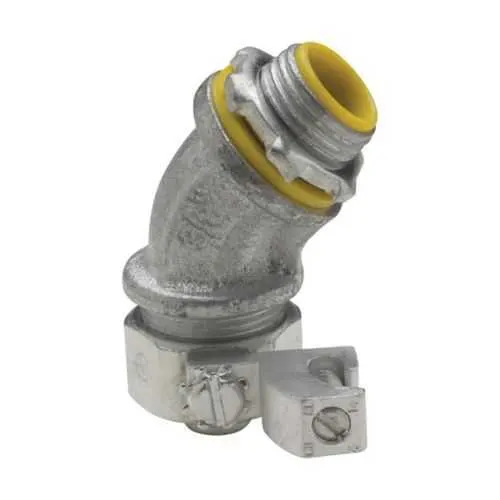

Eaton LT40045G Liquidator - Hazardous/Classified Locations
Part Number: LT40045G
Quick Summary
Eaton LT40045G Liquidator is a rugged liquidtight FMC connector for hazardous-location electrical installations. In the field, improper fittings cause leaks, corrosion, and costly downtime, especially in harsh environments. This connector is NEC/CEC listed for Hazardous/Classified Locations with Class I Division 2, Class II Division 1 and 2, and Class III ratings, ensuring compliance across North American projects. It combines a 45° angle, malleable iron body, and aluminum ground lug with a non-insulated insulator for flexible, durable use in sensitive zones. Designed for quick, reliable installations, it supports a 4 inch trade size FMC run and offers robust mechanical protection with predictable performance and lower total cost of ownership.
Product Information
Extended Description
LT40045G Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 45° angle, Aluminum ground lug, Non-insulated, #3/0-6 AWG lug size, Malleable iron, 4"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LT40045G
UPC
784564260307
Product Length/Depth
8 in
Product Height
6.8 in
Product Width
17.2 in
Product Weight
15.35 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
45° angle
Material
Malleable iron
Insulator
Non-insulated
Trade size
4"
Ground lug material
Aluminum
Lug size
#3/0-6 AWG
Eaton Crouse-Hinds LT40045G 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LT40045G
The 45° angle FMC liquidtight connector enables compact routing in tight equipment spaces, accelerating panel layouts and reducing the need for additional elbows, which lowers installation time and improves seal integrity in confined enclosures. In hazardous environments, the combination of a malleable iron body and non-insulated insulator provides rugged durability while offering wire-wiring flexibility, minimizing insulation damage during installation and maintenance. Aluminum ground lug material delivers dependable grounding with lighter weights, simplifying outdoor or damp-location applications and improving overall wiring safety for feeders using #3/0-6 AWG. With a 4 inch trade size and a weight of 15.35 lb, the unit offers a robust footprint for demanding service while maintaining manageable handling and installation. NEC/CEC compliance and the specified hazardous ratings give regulatory assurance across critical installations and audits.
Get a Quick Quote for a Eaton Crouse-Hinds LT40045G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LT40045G?
Enquire Now
FAQs
LT40045G is designed for FMC conduit and hazardous-location use, featuring a 4 inch trade size, lug for #3/0-6 AWG conductors, and a 45° angle for tight routing. It is NEC/CEC listed for Hazardous/Classified Locations, including Class I Division 2 and Class II/III ratings, supporting safe, compliant installations in demanding environments.
Key performance aspects include a 45° liquidtight connector design, malleable iron body, non-insulated insulator, and an aluminum ground lug. It is rated for hazardous locations under NEC/CEC with Class I Division 2, Class II Divisions 1 and 2, and Class III, ensuring reliable sealing, mechanical strength, and regulatory compliance for industrial feeders and equipment.
Yes. LT40045G is specified for Class I Division 2 environments and also covers Class II Division 1 and 2 and Class III. This makes it suitable for equipment rooms, remote facilities, and process areas where hazardous atmospheres may exist, while maintaining secure terminations and permissible wiring practices.
LT40045G meets NEC/CEC standards for hazardous locations and is supported by UL certification for metallic liquidtight fittings. It is listed for Hazardous/Classified Locations with Class I Division 2, Class II Divisions 1 and 2, and Class III, and is accompanied by manufacturer literature and 3D CAD resources to aid design and compliance testing.
LT40045G offers robust construction with a long service life due to malleable iron and a protective ground lug, reducing replacement frequency and maintenance cost. Its compact 45° routing, reliable seal, and NEC/CEC compliance help minimize downtime, streamline installation, and improve overall project ROI for demanding industrial installations.
