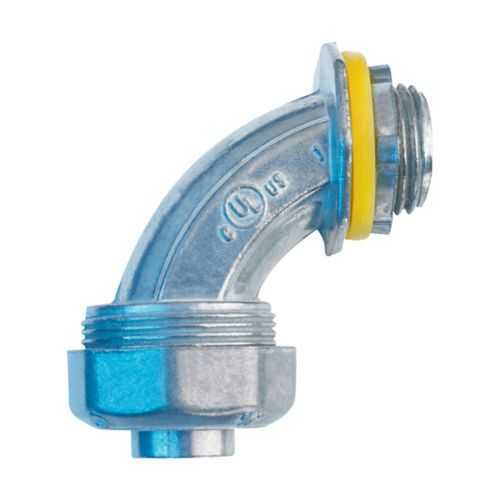

Eaton LT40090DC Liquidtight Connector - Hazardous Locations
Part Number: LT40090DC
Quick Summary
Eaton LT40090DC Liquidtight connector provides secure FMC conduit joins for hazardous locations. In hazardous environments, space constraints and strict certifications often derail straightforward installations. NEC/CEC compliance for Hazardous and Classified Locations, plus Class I, Division 2 ratings, helps you meet code and reduce risk. The zinc die cast housing provides rugged durability in demanding factories, while its non-insulated design speeds installation and reduces component wear. With a 4 inch trade size and 90° geometry, it fits tight routing paths and streamlines panel or tray layouts. Overall, this solution reduces field rework, lowers total cost of ownership, and speeds uptime in critical process environments.
Product Information
Extended Description
LT40090DC Eaton Crouse-Hinds: Eaton Crouse-Hinds series liquidtight connector, FMC, 90° angle, Non-insulated, Zinc die cast, 4"
Product Name
Eaton Crouse-Hinds series liquidtight connector
Catalog Number
LT40090DC
UPC
662277000734
Product Weight
7.667 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Zinc die cast
Insulator
Non-insulated
Trade size
4"
Crouse-Hinds series Zinc Die Cast Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LT40090DC
Feature → Business Impact → Application: 90° FMC liquidtight connector geometry. Business impact: Enables tight routing and reduces bend radii, cutting wiring time and entry points. Application: Ideal for panel edges and crowded cable trays in hazardous facilities. Feature → Business Impact → Application: Zinc die cast housing with non-insulated insulator. Business impact: Delivers rugged durability and simplified assembly, lowering maintenance costs and downtime. Application: Suitable for harsh environments such as refineries and chemical plants. Feature → Business Impact → Application: 4 inch trade size matches standard FMC conduit. Business impact: Minimizes compatibility issues and eliminates unnecessary adapters. Application: Retrofit or new installations in constrained spaces. Feature → Business Impact → Application: NEC/CEC compliance with Class I Division 2 ratings and area classification. Business impact: Ensures regulatory alignment, safer operation, and reduced risk of noncompliance penalties. Application: Critical in hazardous locations across manufacturing and energy sectors. Feature → Additional: Installation resources and documentation: Eaton catalog pages and spec sheets provide guidance. Business impact: Accelerates commissioning and reduces field errors. Application: Teams can confidently select LT40090DC for projects needing certified fittings.
Get a Quick Quote for a Eaton Crouse-Hinds LT40090DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LT40090DC?
Enquire Now
FAQs
LT40090DC is a 4 inch trade size liquidtight connector for FMC conduit, designed to attach to standard FMC fittings and backs. It supports common 4 inch FMC sizing used in medium diameter flexible conduits, simplifying parts planning and stocking. Follow Eaton’s installation guide for gland seals and gaskets to ensure a moisture-tight seal. This compatibility reduces adapter counts and speeds panel terminations.
LT40090DC carries NEC/CEC compliance for Hazardous/Classified Locations, including Class I Division 2 ratings, and supports area classification requirements. The UL and Eaton documentation confirm suitability for hazardous environments, helping you meet regulatory obligations, reduce risk, and simplify audits. In Canada or the US, these standards align with project specifications and contractor expectations for safe, code-compliant installations.
LT40090DC is well suited for chemical plants, refineries, oil and gas facilities, and other operations with hazardous classifications where durable, compliant fittings are essential. The 90° angle and 4 inch trade size support compact routing near equipment and panels, while the zinc die cast body resists harsh chemicals and thermal cycling. This makes it a reliable choice for retrofit and new builds.
Yes. LT40090DC is designed for Class I Division 2 environments and related hazardous classifications, offering NEC/CEC-compliant sealing and a robust zinc die cast housing. The 90° configuration supports tight installations, while the non-insulated construction simplifies access for inspection and testing. Ensure proper grounding and use Eaton’s recommended gaskets and seals per the product sheet.
Using LT40090DC can reduce installation time and maintenance costs by reducing required adapters, enabling faster terminations, and decreasing rework in hazardous zones. The rugged zinc housing resists corrosion and the 90° fit minimizes required routing space, improving panel density. Over the project life, this translates to lower downtime and a faster return on investment.
