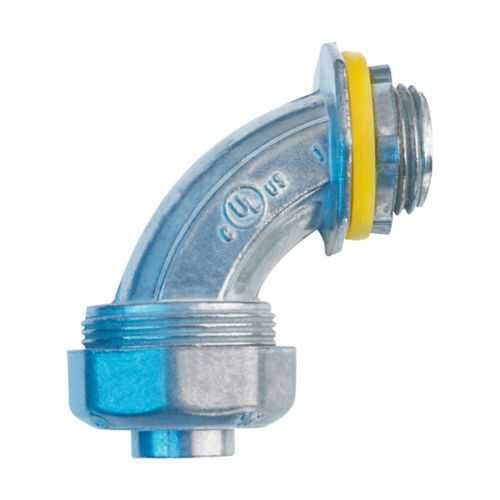

Eaton Crouse-Hinds LT5090DC Liquidtight Connector - 90° FMC
Part Number: LT5090DC
Quick Summary
LT5090DC liquidtight connector provides a robust 90-degree FMC connection for hazardous-location electrical installations in industrial automation. This compact, zinc die-cast fitting helps maintain cable integrity in tight spaces, reducing field adjustments and rework. It is rated for Hazardous/Classified Locations with NEC/CEC compliance and Class I, Division 2, among other hazardous ratings. The non-insulated design supports quick termination where insulation is not required, while its rugged construction resists oils and temperature extremes typical of manufacturing floors. For engineers and procurement teams, this connector delivers installation efficiency, regulatory compliance, and long-term reliability in industrial fittings and control-panel applications.
Product Information
Extended Description
LT5090DC Eaton Crouse-Hinds: Eaton Crouse-Hinds series liquidtight connector, FMC, 90° angle, Non-insulated, Zinc die cast, 1/2"
Product Name
Eaton Crouse-Hinds series liquidtight connector
Catalog Number
LT5090DC
UPC
662277000642
Product Length/Depth
1.22 in
Product Height
1.22 in
Product Width
1.02 in
Product Weight
0.21 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Zinc die cast
Insulator
Non-insulated
Trade size
1/2"
Crouse-Hinds series Zinc Die Cast Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LT5090DC
Feature: 90-degree FMC conduit compatibility enables tight-angle routing inside control panels, reducing bend-induced stress on conductors and easing field termination. Business Impact: lowers installation time, minimizes rework, and extends wiring life in compact machinery. Application: ideal for small-footprint control cabinets and automated lines with constrained enclosure space. Feature: Zinc die-cast construction provides rugged durability and corrosion resistance. Business Impact: improves lifecycle performance in harsh factory environments, reducing maintenance costs. Application: suitable for oil- or coolant-rich production floors and high-temperature areas typical in manufacturing. Feature: Non-insulated design supports quick terminations where insulation is not required. Business Impact: accelerates panel buildouts and simplifies field connections, cutting labor time. Application: control panels and junctions where insulation is unnecessary or already provided by other components. Feature: Hazardous Location ratings including Class I, Division 2. Business Impact: helps ensure regulatory compliance and safe operation in risky environments, decreasing risk exposure. Application: chemical processing, mining, water/wastewater treatment, and other hazardous-area installations. Feature: NEC/CEC compliance with recognized standards for liquidtight fittings. Business Impact: streamlines procurement, reduces review cycles, and supports consistent quality across projects. Application: panel fabrication, retrofit projects, and new-machine builds requiring certified fittings. Feature: 1/2 inch trade size compatibility. Business Impact: aligns with common FMC conduit sizing, reducing part variety and simplifying stocking. Application: standard industrial wiring runs in conveyors, robots, and packaging equipment.
Get a Quick Quote for a Eaton Crouse-Hinds LT5090DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LT5090DC?
Enquire Now
FAQs
LT5090DC is a 1/2 inch trade-size liquidtight connector designed for FMC conduit. Its 90-degree bend enables tight routing in control panels, while its zinc-die-cast body provides durable, oil- and temperature-resistant performance in hazardous locations, helping ensure reliable connections where space is constrained.
LT5090DC carries NEC/CEC compliance and hazardous-location ratings, including Class I, Division 2, along with other listed classifications. UL certification for metallic liquidtight fittings is referenced in the associated documentation, supporting regulatory compliance for industrial applications.
Yes. LT5090DC is specified for Hazardous/Classified Locations with Class I, Division 2 ratings, making it appropriate for panel installations in Class I Division 2 environments. Its non-insulated design and robust construction support safe, reliable operation in such settings.
To maximize efficiency, route conduits with the 90-degree bend to minimize cable strain, use the 1/2" trade-size compatibility to standardize fittings, and leverage NEC/CEC-compliant components to streamline approvals. The zinc die-cast body reduces maintenance needs and simplifies long-term reliability in harsh environments.
Choosing LT5090DC provides regulatory compliance, reduced field rework, and faster panel assembly due to its non-insulated termination and compact form factor. In hazardous-area installations, these benefits translate to lower lifecycle costs, improved uptime, and a shorter payback period on automation projects.
