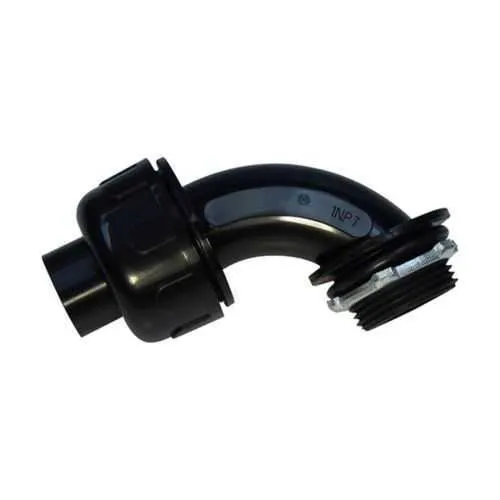

Eaton LT5090NMBL Non-metallic Liquidtight - FMC 90°
Part Number: LT5090NMBL
Quick Summary
LT5090NMBL is a non-metallic liquidtight connector used to join FMC conduits in hazardous industrial locations. This solution addresses installation challenges in tight spaces where metal fittings add weight and corrosion risk. It is certified for hazardous locations with NEC/CEC compliance, including Class I Division 2 and Class II/III ratings, ensuring safe operation in potentially explosive atmospheres. The nylon construction and compact 1/2" trade size simplify mounting in control panels and motor starters, reducing install time and maintenance costs. By selecting this connector, engineers gain a robust, lightweight, and compliant fit that integrates seamlessly with Eaton Crouse-Hinds FMC fittings, delivering reliable performance across challenging environments.
Product Information
Extended Description
LT5090NMBL Eaton Crouse-Hinds: Eaton Crouse-Hinds series non-metallic liquidtight connector, Black, FMC, 90° angle, Nylon, 1/2"
Product Name
Eaton Crouse-Hinds series non-metallic liquidtight connector
Catalog Number
LT5090NMBL
UPC
662277032315
Product Length/Depth
3.12 in
Product Height
2.12 in
Product Width
2.12 in
Product Weight
0.05 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Color
Black
Trade size
1/2"
Material
Nylon
Crouse-Hinds series Non-metallic Liquidtight Fittings catalog page
Non-metallic Liquidtight Fittings UL certification
Non-metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LT5090NMBL
90° elbow design optimizes routing in tight spaces, reducing bending radii and easing panel entry, which translates to faster installs and fewer field modifications in control cabinets. The business impact is lower labor costs and improved system reliability in dense panel layouts, especially in automated lines that demand compact wiring schemes. This connector provides a natural fit for FMC conduit systems in hazardous locations, where space constraints and safety documentation are critical. Nylon construction offers corrosion resistance and lighter weight than metal equivalents, improving handling during assembly and transport while minimizing fatigue on long cable runs in harsh environments. The 1/2" trade size supports common FMC glandings, enabling streamlined procurement and inventory control for maintenance teams. Its black finish aids identification and compatibility with standard Eaton Crouse-Hinds fittings, reducing mis-match risk. Certifications and NEC/CEC compliance reassure installers during audits, with Class I Division 2, Class II, and Class III ratings addressing industry-specific safety requirements. Overall, the LT5090NMBL delivers predictable performance, quick installs, and a lower total cost of ownership in automation, mining, oil & gas, and chemical processing facilities.
Get a Quick Quote for a Eaton Crouse-Hinds LT5090NMBL
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LT5090NMBL?
Enquire Now
FAQs
Yes. LT5090NMBL is designed for FMC conduit systems and pairs with Eaton Crouse-Hinds non-metallic fittings. The 1/2" trade size matches common FMC hardware, enabling straightforward installation in control panels and equipment enclosures without special adapters.
LT5090NMBL carries NEC/CEC compliance with hazardous location ratings, including Class I Division 2, Class II Division 1 and 2, and Class III. UL certifications for non-metallic liquidtight fittings further validate its safety and reliability in demanding environments.
Yes. The connector is approved for Class I, Division 2 locations, aligning with industry safety requirements in chemical processing facilities and other hazardous locations, ensuring safe ingress protection and sealing under challenging conditions.
Focus on routing the 90° elbow to minimize bending radius, securing the conduit with approved fittings, and verifying the 1/2" trade size matches the gland to avoid compression or leakage. The nylon body weights less than metal alternatives, simplifying handling in constrained panels.
Key specs include a 1/2" trade size, 3.12 in length, 2.12 in height, 2.12 in width, and a weight of 0.05 lb. It is black in color and made from nylon, with FMC as the conduit type and a 90° elbow configuration for space-limited installations.
