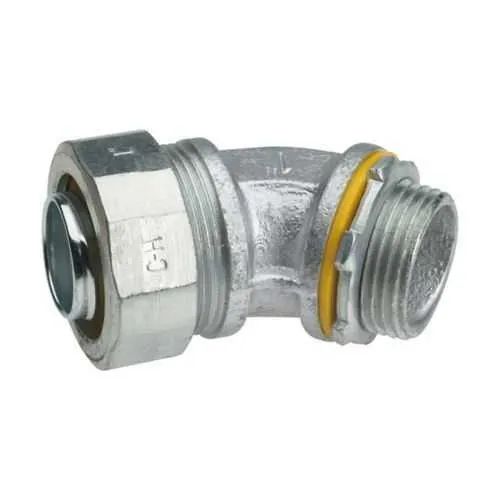

Eaton LT7545 Liquidator Liquidtight Connector - Hazardous
Part Number: LT7545
Quick Summary
LT7545 Eaton Crouse-Hinds Liquidator liquidtight connector is designed to provide secure FMC conduit terminations for hazardous-location equipment. In harsh industrial environments, installers struggle with moisture ingress, improper fittings, and costly downtime due to unreliable terminations. This fitting carries NEC/CEC compliance and hazardous location ratings, including Class I, Division 2 and Class II/III provisions. Together with its rugged malleable iron body and 3/4 inch trade size, it streamlines procurement and installation for maintenance teams and OEMs.
Product Information
Extended Description
LT7545 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 45° angle, Non-insulated, Malleable iron, 3/4"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LT7545
UPC
784564450753
Product Length/Depth
2.69 in
Product Height
2.69 in
Product Width
1.56 in
Product Weight
0.4 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
45° angle
Material
Malleable iron
Insulator
Non-insulated
Trade size
3/4"
Eaton Crouse-Hinds LT7545 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LT7545
Feature: 45° angle FMC liquidtight design. Benefit: simplifies routing in tight spaces and reduces bend stress on the conduit, improving seal integrity over long service life. Application: ideal for panel junctions and equipment enclosures where space is constrained and reliable sealing is critical. Feature: Malleable iron, non-insulated construction. Benefit: rugged durability and dependable mechanical strength in demanding environments, helping resist impact and corrosion. Application: heavy-industrial installations and outdoor or chemical-processing plants where protection matters as much as connectivity. Feature: Hazardous location ratings with NEC/CEC compliance (Class I Division 2; Class II Divisions 1 & 2; Class III). Benefit: enables safe installation in regulated environments, reducing compliance risk and inspection downtime. Application: chemical plants, refineries, and mining facilities that require proven protection for liquidtight connections. Feature: 3/4" trade size with exact dimensions (2.69 in L and H, 1.56 in W) and 0.4 lb weight. Benefit: compact yet robust form factor that fits standard FMC runs without excessive bulk. Application: panel feeders and equipment-to-conduit terminations where space is at a premium. Feature: Catalog LT7545 and FMC conduit type. Benefit: streamlined procurement with a single, compatible fitting for Liquidator series, reducing sourcing complexity and installation variability. Application: OEM systems and field installations needing consistent, code-compliant fittings.
Get a Quick Quote for a Eaton Crouse-Hinds LT7545
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LT7545?
Enquire Now
FAQs
Install LT7545 following the Eaton Crouse-Hinds installation guidance for Liquidator liquidtight fittings. Use the 3/4 in FMC conduit, ensure proper alignment to the 45° angle, and secure with compatible mating fittings and seals to maintain the hazardous-location rating. Verify the assembly adheres to NEC/CEC requirements and local codes before energizing.
LT7545 is designed for Hazardous/Classified Locations and meets NEC/CEC standards. It is rated for Class I, Division 2; Class II, Division 1 and 2; and Class III environments, providing compliant terminations for equipment in regulated industrial spaces.
Yes. LT7545 carries NEC hazardous location ratings that include Class I, Division 2, enabling safe use in zones where flammable liquids or vapors may be present. Always verify the specific installation conditions and follow code requirements for the final equipment configuration.
LT7545 adheres to NEC/CEC standards for liquidtight fittings used in FMC conduit systems. This ensures proper electrical continuity, weather and moisture sealing where required, and applicability in hazardous location installations, reducing compliance risk and facilitating inspections.
LT7545 delivers rugged, long-life performance with a durable malleable iron body and reliable seals, reducing maintenance intervals and rework. Its 3/4 in size and 45° design simplify installation in tight spaces, speeding commissioning and minimizing downtime, while meeting NEC/CEC compliance for safer, code-compliant terminations.
