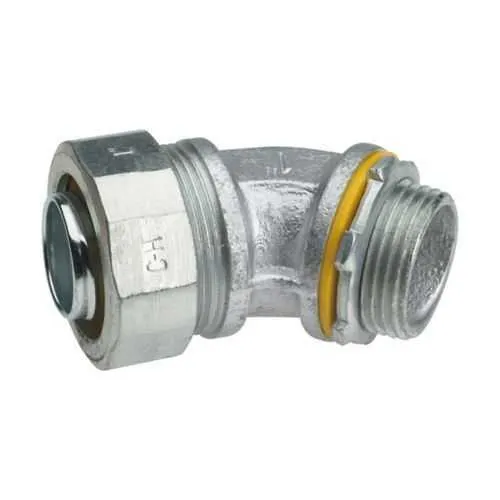

Eaton LTB10045 Liquidator liquidtight connector - Hazardous/Classified Locations
Part Number: LTB10045
Quick Summary
Liquidator liquidtight connector by Eaton LTB10045 delivers a robust FMC termination for hazardous-area electrical installations. It addresses the common challenge of routing and sealing flexible conduit in tight spaces without compromising safety. This connector carries NEC/CEC compliance and hazardous location ratings, including Class I Division 2, Class II Division 1 & 2, and Class III, ensuring code conformity across industrial environments. By combining a rugged malleable iron body with insulated construction, it resists wear, corrosion, and impact in demanding plants. The design supports a 1" trade size and a 45° angle, enabling efficient wiring runs, quick maintenance, and predictable installation costs. For spec-driven projects, this solution aligns with Crouse-Hinds liquidtight fittings inventories and automation-ready installations.
Product Information
Extended Description
LTB10045 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 45° angle, Insulated, Malleable iron, 1"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB10045
UPC
784564461001
Product Length/Depth
3.13 in
Product Height
3.13 in
Product Width
0.81 in
Product Weight
0.64 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
45° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1"
Eaton Crouse-Hinds LTB10045 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB10045
Feature to Benefit to Application: The 45° angle design enables space-efficient terminations, reducing enclosure crowding and simplifying routing in control panels, which lowers installation time and labor costs in automated lines. This fits FMC conduit fittings and 1" trade-size requirements for reliable, high-integrity terminations in tight spaces. Feature to Benefit to Application: The malleable iron, insulated construction delivers rugged durability and corrosion resistance in harsh environments such as chemical plants and oil-processing facilities, minimizing maintenance cycles and replacement costs. Feature to Benefit to Application: NEC/CEC compliance and hazardous location ratings (Class I Division 2, Class II Division 1 & 2, Class III) reduce risk and expedite approvals, making it easier to meet project timelines for regulated industrial sites. Feature to Benefit to Application: Compact overall dimensions (3.13 in length and height, 0.81 in width) with a light 0.64 lb weight simplify mounting on panels and machinery, enhancing layout flexibility for automation projects. Feature to Benefit to Application: The 1" trade size paired with FMC compatibility provides a standardized, universally compatible component in conduit networks, streamlining procurement and reducing stock variety for maintenance teams.
Get a Quick Quote for a Eaton Crouse-Hinds LTB10045
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB10045?
Enquire Now
FAQs
LTB10045 is specifically designed for FMC conduit and accepts a 1" trade size, ensuring a secure, code-compliant termination. Its 45° angled bore simplifies routing in compact control panels and automated equipment housings, reducing field modification time and enabling faster commissioning of FMC-based conveyor and fabrication lines.
The connector is listed for hazardous/classified locations with NEC/CEC compliance and supports Class I Division 2, Class II Division 1 & 2, and Class III ratings. This provides necessary protection and approval for electrical installations in chemical plants, refineries, and similar environments, helping reduce regulatory risk during project inspections.
The LTB10045 measures 3.13 inches in length and height, 0.81 inches in width, and weighs 0.64 pounds. These compact dimensions make it easy to fit into tight panels and enclosures, while maintaining robust mechanical integrity for long-term service in industrial facilities.
The 45° angle reduces bend radius and obstruction within tight cabinets, allowing cleaner cable runs and fewer elbow fittings. This improves install speed, reduces potential leakage paths, and minimizes enclosure footprint in automated machinery and hazardous-area installations.
Constructed from malleable iron with insulated protection, the LTB10045 offers durability against impact, moisture, and corrosive exposure typical of hazardous locations. Regular inspections for physical wear and seal integrity, combined with adherence to NEC/CEC requirements, help extend service life and maintain compliance over the equipment lifecycle.
