Eaton LTB10090 Liquidator Liquidtight Connector - Hazardous
Part Number: LTB10090
Quick Summary
Eaton LTB10090 Liquidator liquidtight connector provides rugged FMC connections for hazardous location installations. Engineers often struggle with maintaining seal integrity and regulatory compliance in dusty, damp, or explosive environments. This device carries NEC/CEC standards and hazardous location ratings, including Class I, Division 2; Class II, Division 1 and Division 2; and Class III, enabling safe, code-compliant terminations. Its 1 inch trade size, 90-degree FMC geometry, insulated malleable iron construction, and tight interior bore streamline installation, improve seal performance, and reduce lifecycle costs across control panels and equipment. By aligning with the Liquidator product family, procurement is simplified and field maintenance is easier, supporting longer service intervals in demanding industrial settings.
Product Information
Extended Description

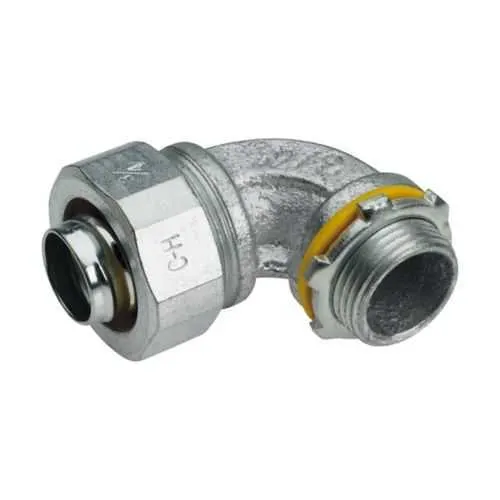

LTB10090 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Insulated, Malleable iron, 1"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB10090
UPC
784564911001
Product Length/Depth
2.94 in
Product Height
2.94 in
Product Width
0.81 in
Product Weight
0.75 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1"
Eaton Crouse-Hinds LTB10090 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB10090
Feature: 90-degree angle design for FMC conduit. Business Impact: Reduces enclosure footprint and eases routing in tight spaces, improving panel density. Application: Electrical enclosures and junction boxes in restricted or cabinet-heavy installations. Feature: 1 inch trade size with precise 2.94 in length and 2.94 in height. Business Impact: Consistent fit with standard FMC fittings, minimizing rework and inventory variance. Application: Control panels, motor control centers, and machine interfaces requiring reliable, compact terminations. Feature: Insulated, malleable iron body. Business Impact: Enhanced mechanical protection and enduring seal performance in harsh environments, lowering maintenance cycles. Application: Hazardous locations with vibration or temperature fluctuations. Feature: NEC/CEC compliance and hazardous ratings (Class I, Division 2; Class II, Division 1 and 2; Class III). Business Impact: Strong regulatory alignment reduces risk and speeds approvals. Application: Equipment installations in hazardous/classified areas. Feature: Documentation availability (CAD drawings, catalogs, datasheets). Business Impact: Accelerates design validation and procurement, reducing engineering time. Application: Product selection and integration for new builds and retrofits.
Get a Quick Quote for a Eaton Crouse-Hinds LTB10090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB10090?
Enquire Now
FAQs
To install LTB10090, ensure the conduit and fittings match the 1" trade size, inspect gasket integrity, and tighten to the manufacturer’s torque specification to maintain the weatherproof seal. Use appropriate thread sealant per NEC guidelines, verify the enclosure is in a classified location, and outfit with compatible glands or termination systems to maintain hazardous-location integrity.
Key specs include 1" trade size, 2.94 in length and height, 0.81 in width, 0.75 lb weight, malleable iron construction, and an insulated body. These features deliver a compact, durable termination that preserves seal integrity, supports 90° routing in tight panels, and complies with NEC/CEC for hazardous environments, reducing leakage risk and maintenance needs.
Yes. The LTB10090 is rated for hazardous/classified locations, including NEC Class I, Division 2, with additional Class II and Class III ratings. This makes it appropriate for electrical equipment within regulated zones, ensuring safe terminations and compliant installations in hazardous settings.
The product supports NEC/CEC compliance and hazardous-location ratings, with Canadian and UL-listed certification references available. Additional documentation includes 3D CAD drawings, catalog pages, and specification sheets, which facilitate design reviews and regulatory submissions for both North American markets.
The LTB10090 offers durable, insulated construction and a compact 90° form factor that reduces install time and enclosure space, lowering labor and material costs. Its robust seal and code-compliant ratings help minimize field service calls and re-terminations, delivering faster procurement, regulatory confidence, and longer service intervals in harsh environments.
