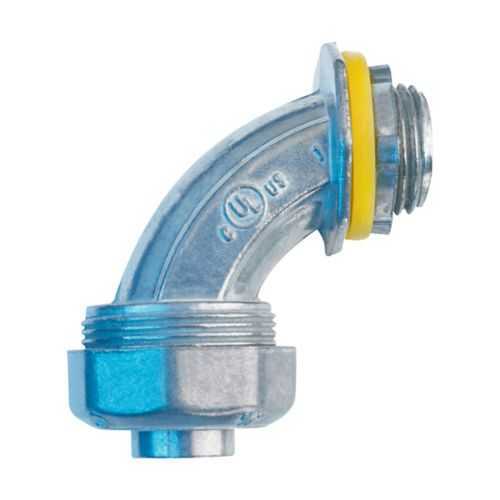

Eaton LTB10090DC Liquidtight connector - Class I Div 2
Part Number: LTB10090DC
Quick Summary
Liquidtight connector is a rugged 90° FMC fitting used to terminate and protect conduits in hazardous industrial environments. Engineers and procurement teams often face space constraints and repeated rework when fittings don’t align with enclosure layouts. This model carries NEC/CEC compliance and hazardous-location ratings, including Class I Division 2, Class II Division 1 and Division 2, and Class III, providing clear regulatory assurance. In addition to its compact 1" trade size, insulated zinc die-cast construction delivers durability and consistent performance across demanding applications, while compatibility with Crouse-Hinds fittings accelerates installation and reduces life‑cycle costs.
Product Information
Extended Description
LTB10090DC Eaton Crouse-Hinds: Eaton Crouse-Hinds series liquidtight connector, FMC, 90° angle, Insulated, Zinc die cast, 1"
Product Name
Eaton Crouse-Hinds series liquidtight connector
Catalog Number
LTB10090DC
UPC
662277000772
Product Length/Depth
1.73 in
Product Height
1.73 in
Product Width
1.48 in
Product Weight
0.4 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Zinc die cast
Insulator
Insulated
Trade size
1"
Crouse-Hinds series Zinc Die Cast Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB10090DC
The 90° angle design of this liquidtight connector enables tighter routing and smaller enclosure footprints, reducing installation time and labor for panel wiring in crowded electrical spaces. Its zinc die-cast, insulated body delivers robust durability and corrosion resistance in harsh environments, supporting long service life and lower maintenance costs. With a 1" trade size, it aligns with standard FMC conduits, streamlining procurement and field assembly for common automation projects. Because it meets NEC/CEC standards and hazardous-location ratings (Class I Div 2, Class II Div 1/2, Class III), it simplifies compliance during design reviews and reduces risk of nonconforming installations. The compact dimensions (1.73 in length and height, 1.48 in width) and light 0.4 lb weight improve handling and shipping efficiency, while compatibility with Eaton Crouse-Hinds zinc die-cast fittings expands system design options for industrial environments. Documentation and catalog integration accelerate specs work and field ordering.
Get a Quick Quote for a Eaton Crouse-Hinds LTB10090DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB10090DC?
Enquire Now
FAQs
LTB10090DC is a 1" trade size liquidtight connector for flexible metal conduit (FMC) systems with a 90° angle. It is designed to pair with Eaton Crouse-Hinds zinc die cast liquidtight fittings to create safe, reliable terminations in compact installations. The component fits standard FMC runs used in control panels, switchgear enclosures, and equipment connections, enabling straightforward project integration.
This connector carries NEC/CEC compliance and hazardous-location ratings, including Class I Division 2, Class II Division 1 and 2, and Class III. Canadian certifications and UL listings are referenced in product literature, supporting safe use in regulated environments such as chemical plants, refineries, and mining facilities.
Yes. The LTB10090DC is specified for Hazardous/Classified Locations with NEC/CEC compliance and Class I Division 2 ratings, making it appropriate for hazardous environments where flammable or explosive atmospheres may be present. Its insulated zinc die-cast construction helps protect conductors and maintain enclosure integrity under demanding conditions.
Plan for tight routing given the 90° elbow geometry and 1" trade size to minimize enclosure footprint. Use the connector with compatible FMC fittings from the Crouse-Hinds Zinc Die Cast line to ensure a secure seal and mechanical fit. Consider enclosure fill, torque recommendations from Eaton literature, and verify NEC/CEC compliance for your specific location.
The LTB10090DC provides durable protection against moisture, dust, and mechanical stress in hazardous locations, reducing maintenance and rework. Its 1" size and 90° orientation speed installation in tight spaces, while NEC/CEC compliance lowers compliance risk and accelerates approvals, delivering total cost-of-ownership savings over the equipment lifecycle.
