LTB10090G Liquidator Liquidtight Connector - Hazardous Locations
Part Number: LTB10090G
Quick Summary
Liquidator liquidtight connector is a rugged FMC fitting designed to secure conduit connections in hazardous industrial environments. This model addresses common pain points such as seal integrity, grounding reliability, and field adaptability when working in confined spaces or degraded installations. It complies with NEC/CEC standards and hazardous-location classifications, including Class I, Division 2, Class II Division 1, Class II Division 2, and Class III, ensuring safe operation under demanding conditions. The 1-inch trade size, insulating design, and aluminum ground lug enhance overall durability while simplifying installation. For engineers and procurement teams, this connector delivers consistent performance, reduces downtime, and supports compliant, long-term electrical reliability in critical facilities.
Product Information
Extended Description

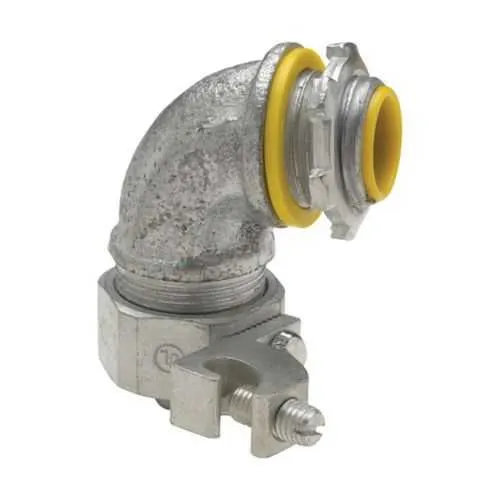

LTB10090G Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Aluminum ground lug, Insulated, #4-14 AWG lug size, Malleable iron, 1"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB10090G
UPC
784564264435
Product Length/Depth
2.94 in
Product Height
2.94 in
Product Width
0.81 in
Product Weight
0.77 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1"
Ground lug material
Aluminum
Lug size
#4-14 AWG
Eaton Crouse-Hinds LTB10090G 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB10090G
Feature → Business Impact → Application: The LTB10090G uses malleable iron construction with an insulated design to withstand harsh environments, providing robust mechanical strength and reliable environmental sealing in FMC conduit systems. This translates to lower maintenance costs and fewer field faults in chemical plants, refineries, and offshore facilities, where downtime is costly and safety is paramount. Application: Install in hazardous or classified locations with NEC/CEC compliance to maintain code-conforming, leak-free connections while ensuring quick field servicing and mock-up free installations. Feature → Business Impact → Application: The 90° angle configuration reduces bending radii and simplifies routing in tight spaces, boosting installation efficiency and reducing labor time on complex cable trays and equipment rooms. Application: Works with #4-14 AWG conductors and a ground lug made from aluminum for dependable grounding and corrosion resistance in tough environments. Feature → Business Impact → Application: Ground lug aluminum construction provides a durable, low-maintenance path to earth, improving system safety margins and prolonging service life in industrial plants and hazardous zones. Application: Ideal for ongoing maintenance programs where quick replacement and assured connectivity are essential for process uptime. This data-driven design supports compatibility with standard FMC fittings and contributes to overall project cost efficiency, procurement predictability, and compliance confidence.
