Eaton Crouse-Hinds LTB10090GC Liquidator - Hazardous Locations
Part Number: LTB10090GC
Quick Summary
Eaton Crouse-Hinds LTB10090GC liquid-tight connector terminates FMC conduit in hazardous-location installations. Engineers often face grounding gaps and compliance risk when wiring in Class I, II, and III environments, especially under space constraints. This part carries NEC/CEC compliance and hazardous-location ratings, including Class I Division 2 and Class II/III approvals, with a copper ground lug for solid grounding. By combining rugged malleable-iron housing with a 1" trade size and a 90° elbow, it offers faster installation, reduced rework, and safer terminations in control panels, junction boxes, and industrial enclosures.
Product Information
Extended Description

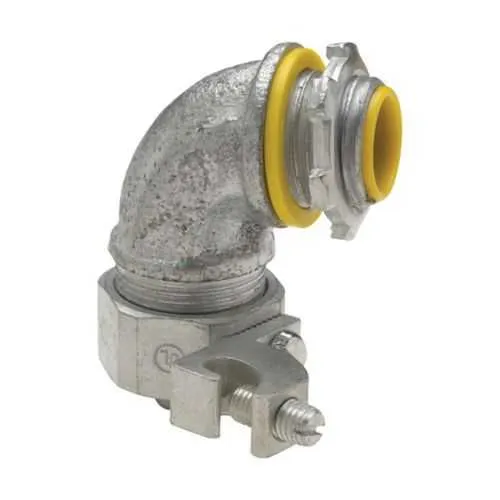

LTB10090GC Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Copper ground lug, Insulated, #4-14 AWG lug size, Malleable iron, 1"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB10090GC
UPC
784564253255
Product Length/Depth
2.94 in
Product Height
2.94 in
Product Width
0.81 in
Product Weight
0.77 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1"
Ground lug material
Copper
Lug size
#4-14 AWG
Eaton Crouse-Hinds LTB10090GC 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB10090GC
90° FMC liquid-tight connector delivers space-efficient terminations in tight panel headers, reducing installation time and field rework while maintaining a robust seal for dynamic industrial environments. The malleable iron housing provides rugged durability against vibration and incidental impact, improving long-term reliability in harsh facilities. An insulated design with a copper ground lug ensures a reliable grounding path and moisture resistance, strengthening electrical safety and compliance in hazardous locations. The 1" trade size and lug range of #4-14 AWG support common control and power conductors, enabling straightforward integration into existing wiring schemes. Compact overall dimensions (2.94 in length/depth, 2.94 in height, 0.81 in width) and a weight of 0.77 lb simplify panel fabrication and retrofit projects. Access to 3D CAD drawings, catalogs, and datasheets further streamlines design and procurement while supporting NEC/CEC compliance and industry best practices.
