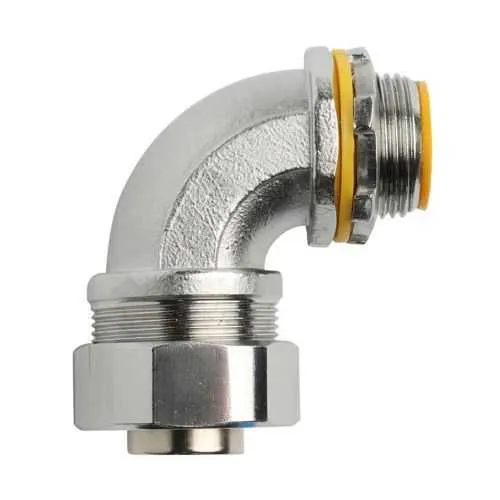

Eaton LTB10090SS Liquidtight Connector - Hazardous
Part Number: LTB10090SS
Quick Summary
Eaton Crouse-Hinds liquidtight connector provides secure FMC terminations for hazardous-location electrical assemblies. Its stainless steel, insulated 1 inch body supports reliable performance in challenging environments. Many engineers struggle with corrosion, moisture ingress, and tight spaces that slow projects and drive maintenance costs. The LTB10090SS design mitigates these issues with a rugged stainless steel housing and integrated insulation that protects conductors in harsh conditions. It’s certified for Hazardous/Classified Locations under NEC/CEC guidelines with Class I Division 2 and related ratings, ensuring regulatory compliance. In practice, this delivers faster terminations, fewer field faults, and long-term cost savings for industrial installations requiring safe, compliant conduit connections.
Product Information
Extended Description
LTB10090SS Eaton Crouse-Hinds: Eaton Crouse-Hinds series liquidtight connector, FMC, 90° angle, Insulated, Stainless steel, 1"
Product Name
Eaton Crouse-Hinds series liquidtight connector
Catalog Number
LTB10090SS
UPC
662277038294
Product Length/Depth
2.73 in
Product Height
2.73 in
Product Width
1.72 in
Product Weight
0.73 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Stainless steel
Insulator
Insulated
Trade size
1"
Crouse-Hinds stainless steel conduit, cable and wire management brochure
Crouse-Hinds series Steel and Stainless Steel Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB10090SS
Feature: 90° elbow design reduces routing complexity and minimizes the number of fittings, accelerating panel terminations. Business Impact: speeds up installation and lowers labor costs. Application: ideal for control panels, motors, and junctions in tight equipment layouts. Feature: Stainless steel body with insulated design. Business Impact: provides corrosion resistance and moisture protection, extending service life and reducing maintenance in harsh environments. Application: chemical plants, mining operations, offshore platforms. Feature: 1 inch trade size compatibility with FMC conduit. Business Impact: simplifies integration with existing runs and reduces need for adapters. Application: new builds and retrofits in hazardous areas where space and fit are critical. Feature: Compliance with NEC/CEC hazardous-location standards (Class I Division 2, Class II/III as applicable). Business Impact: ensures regulatory approvals and lowers risk during audits. Application: control cabinets and field wiring in hazardous facilities. Feature: Compact footprint with dimensions 2.73 in length and height, 1.72 in width, weight 0.73 lb. Business Impact: easier handling and installation in constrained spaces; reduces shipping and inventory cost. Application: equipment enclosures, panel terminations, and tight-installation scenarios.
Get a Quick Quote for a Eaton Crouse-Hinds LTB10090SS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB10090SS?
Enquire Now
FAQs
LTB10090SS is engineered for hazardous-location terminations and carries NEC/CEC certifications, including Class I Division 2 ratings. The stainless steel, insulated body resists corrosion and moisture, extending service life in chemical plants, refineries, and mining environments. This reduces field faults and rework, improving uptime and safety for critical equipment.
Yes, this connector is specified for FMC conduit with a 1 inch trade size. The 90° elbow reduces layout length and eliminates several fittings, cutting installation steps. Pair it with proper glands and seals to maintain integrity and meet enclosure ratings during retrofits or new builds in harsh environments.
The 90° angle allows you to route conduit around obstacles, saving panel depth and simplifying wiring in crowded control cabinets. Its compact 2.73 inch length helps fit in tight enclosures, while the insulated stainless body preserves conductor insulation in damp spaces. This translates to faster commissioning and fewer field adjustments.
The LTB10090SS carries NEC/CEC compliance for hazardous locations, including Class I Division 2 ratings, and related Class II/III classifications as applicable. It also aligns with Canadian certification requirements noted in UL listings. These approvals help ensure regulatory compliance and reduce risk during audits and facility upgrades.
Long-term ROI comes from reduced corrosion-related maintenance, fewer replacements, and quicker terminations, lowering labor costs. The stainless steel body resists wear in harsh environments, while the 90° design minimizes downtime during installation. Across a fleet of hazardous-area assets, the LTB10090SS delivers safer, compliant wiring with measurable cost savings.
