Eaton LTB12545 Liquidator liquidtight connector - 45° FMC
Part Number: LTB12545
Quick Summary
Liquidator liquidtight connector solutions from Eaton Crouse-Hinds provide rugged FMC fittings for 1-1/4 inch lines in hazardous locations. The challenge engineers face is delivering code-compliant, reliable connections in harsh environments without slowing down installation. This LTB12545 variant carries NEC/CEC compliance with Class I, Division 2 ratings, plus Class II and Class III classifications, and Canadian certification for applicable audits. By pairing an insulated malleable iron body with a 45° angle, it simplifies routing in tight spaces while maintaining integrity under demanding service conditions. For buyers, this translates to faster procurement cycles and lower risk, backed by Eaton’s catalog compatibility, 3D drawings, and official specification sheets for informed decision-making.
Product Information
Extended Description

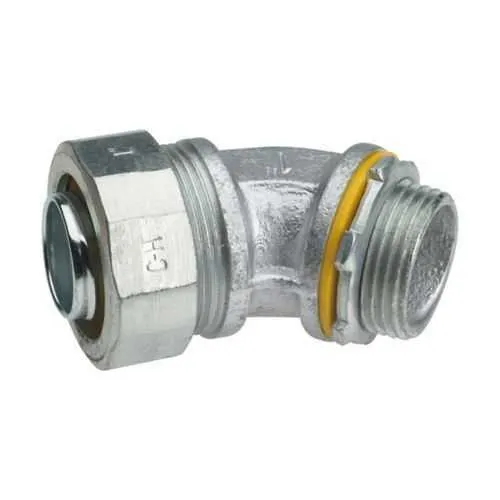

LTB12545 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 45° angle, Insulated, Malleable iron, 1-1/4"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB12545
UPC
784564461254
Product Length/Depth
3.5 in
Product Height
3.5 in
Product Width
2.25 in
Product Weight
0.87 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
45° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1-1/4"
Eaton Crouse-Hinds LTB12545 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB12545
Feature: 45° angle FMC liquidtight connector with insulated malleable iron body → Business Impact: Enables compact routing in confined electrical enclosures and harsh environments while preserving enclosure integrity and mechanical strength → Application: Industrial control panels and junctions in hazardous locations. Feature: 1-1/4 inch trade size → Business Impact: Reduces need for adapters and simplifies stock planning, lowering inventory complexity and downtime → Application: Standard FMC conduit runs in equipment rooms and outdoor installations. Feature: Hazardous/classified locations ratings (Class I Division 2; Class II Divisions 1 & 2; Class III) → Business Impact: Improves regulatory compliance and risk mitigation for critical facilities → Application: Oil & gas, chemical plants, mining, and other hazardous-area projects. Feature: NEC/CEC compliance → Business Impact: Facilitates code-compliant purchasing and faster inspection approvals → Application: Nationwide electrical installations and cross-border projects. Feature: Material durability (malleable iron) with insulation → Business Impact: Long service life, improved environmental resistance, and reduced maintenance → Application: Heavy-duty connectors in outdoor or corrosive environments. Feature: Availability of 3D CAD drawings, catalogs, and specification sheets → Business Impact: Accelerates engineering integration and design validation → Application: BIM and CAD workflows, vendor comparisons, and rapid kit assembly. Note: This content emphasizes long-tail terms like “FMC liquidtight fittings,” “hazardous location fittings,” “1-1/4 inch liquidtight connector,” and “NEC/CEC compliant fittings” to support organic search relevance while communicating real-world value for engineers and procurement teams.
Get a Quick Quote for a Eaton Crouse-Hinds LTB12545
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB12545?
Enquire Now
FAQs
Ensure the panel area is rated for hazardous locations and that the FMC conduit and LTB12545 connector are compatible with the enclosure. Align the connector with the conduit properly, tighten to the manufacturer's torque guidance, and use appropriate gaskets and seals to maintain integrity. Always verify NEC/CEC compliance and local regulations during installation.
Yes. The LTB12545 is designed for NEC/CEC compliance and carries hazardous-location ratings including Class I Division 2, Class II Division 1 and 2, and Class III. It is intended for use in hazardous or classified locations, ensuring safer and code-compliant installations.
The connector is 3.5 inches in length and height, 2.25 inches in width, with a weight of 0.87 pounds. The trade size is 1-1/4 inch, and the fittings are made from malleable iron with an insulated design suitable for rugged environments.
LTB12545 carries NEC/CEC certification and hazardous-location ratings, along with UL-related Canadian certification for compliance in Canada. This makes cross-border procurement and installation more straightforward for multinational projects.
Selecting LTB12545 offers reliable, code-compliant protection in hazardous areas, reducing risk and inspection rework. The 45° angle simplifies routing in tight spaces, while durable malleable-iron construction lowers maintenance costs and extends service life, contributing to lower total cost of ownership on industrial installations.
