Eaton LTB12590SS Liquidtight Connector - Hazardous Locations
Part Number: LTB12590SS
Quick Summary
LTB12590SS is a stainless steel liquidtight connector for hazardous locations in industrial control systems. When installations demand rugged seals and corrosion resistance, ordinary fittings can fail, causing moisture ingress and downtime. This connector carries NEC/CEC compliance and is rated for Class I, Division 2; Class II/III locations, supporting safe operation in demanding environments. In addition to safety, its insulated stainless steel body enhances durability in FMC conduit systems, boosting install efficiency and lifecycle value. Operators benefit from reduced spares and faster panel wiring thanks to its compact form and reliable sealing. Engineers appreciate the documented NEC/CEC conformity and the robust metal-to-metal connection that remains secure under vibration.
Product Information
Extended Description

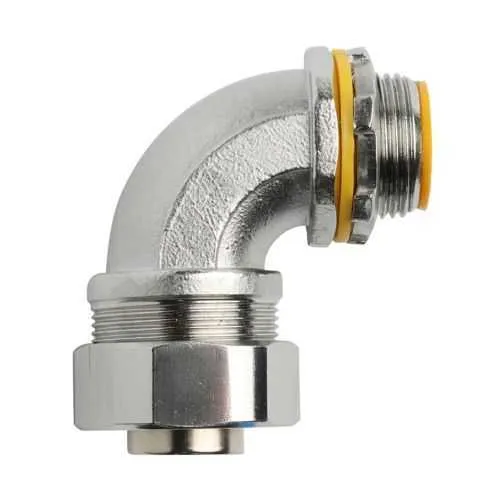

LTB12590SS Eaton Crouse-Hinds: Eaton Crouse-Hinds series liquidtight connector, FMC, 90° angle, Insulated, Stainless steel, 1-1/4"
Product Name
Eaton Crouse-Hinds series liquidtight connector
Catalog Number
LTB12590SS
UPC
662277038300
Product Length/Depth
3.15 in
Product Height
3.15 in
Product Width
2.17 in
Product Weight
0.96 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Stainless steel
Insulator
Insulated
Trade size
1-1/4"
Crouse-Hinds stainless steel conduit, cable and wire management brochure
Crouse-Hinds series Steel and Stainless Steel Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB12590SS
90° elbow design with a 1-1/4 inch trade size streamlines conduit routing in tight control panels, reducing the number of elbows and fittings required. Business impact: faster installs, fewer leak points, and lower labor costs. Application: FMC conduit runs in compact electrical enclosures within hazardous environments. Stainless steel construction with an insulated body provides corrosion resistance and a durable seal, extending service life in chemical plants and outdoor installations. Business impact: higher uptime and lower maintenance. Application: harsh process facilities where moisture and chemical exposure are common. The connector meets NEC/CEC requirements and supports Class I Division 2, Class II Division 1 and 2, and Class III ratings. Business impact: regulatory compliance and safer operation. Application: power distribution and control panels in classified locations. Its compact dimensions—3.15 in length and height, 2.17 in width, 0.96 lb weight—facilitate panel density and ease of handling. Business impact: reduced enclosure footprint and quicker inventorying. Application: retrofits and new builds in space-constrained environments. Designed specifically for FMC conduit, it provides a secure, vibration-resistant connection with minimal torque requirements. Business impact: reliable sealing under equipment vibration; Application: motors, pumps, and process equipment in hazardous areas.
Get a Quick Quote for a Eaton Crouse-Hinds LTB12590SS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB12590SS?
Enquire Now
FAQs
Begin with de-energizing the system and selecting the 1-1/4" FMC conduit compatibility. Align the connector with the conduit, secure the seal, and tighten to the manufacturer’s torque specification using standard hand tools. Verify ground continuity and perform a simple continuity check after installation to ensure a proper seal in Class I Division 2 environments.
The LTB12590SS adheres to NEC/CEC standards and is rated for Hazardous/Classified Locations, including Class I Division 2 and Class II/III locations. This makes it appropriate for chemical plants, oil & gas facilities, and other demanding industrial settings where rigorous protection of electrical joints is required.
Yes, the LTB12590SS is a 1-1/4" trade size FMC conduit connector. Its external dimensions are 3.15 in length and height, 2.17 in width, with an approximate weight of 0.96 lb, making it suitable for compact panel designs and tight routing.
Stainless steel provides superior corrosion resistance, while insulation maintains a reliable seal and electrical isolation. Together they reduce maintenance cycles, lower leak risks, and improve lifecycle cost in harsh environments such as chemical processing or outdoor industrial installations.
Regularly inspect the connector for signs of seal wear, corrosion, or loosening after commissioning and periodic maintenance. Verify torque integrity and assess any impact of vibration. Document compliance with NEC/CEC during audits and replace seals or hardware per the manufacturer’s service interval to maintain hazardous location integrity.
