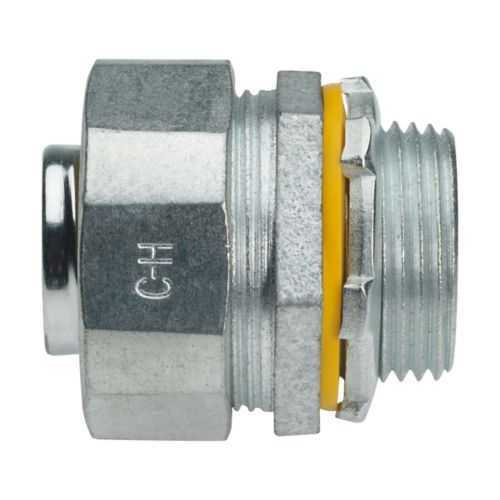

Eaton Crouse-Hinds LTB150 Liquidator - Hazardous Locations
Part Number: LTB150
Quick Summary
LTB150 liquidtight connector protects FMC conduit in hazardous locations for rugged industrial installations. This device delivers a reliable, moisture-tight seal even in harsh environments, reducing field rework and downtime. Engineers often wrestle with maintaining enclosure integrity, dust intrusion, and regulatory compliance when wiring in plants, mines, or chemical facilities. The LTB150 carries NEC/CEC compliance and is UL-listed for metallic liquidtight fittings in hazardous environments, including Class I, Division 2 and related classifications. By combining a robust malleable iron body, insulated construction, and a compact 1-1/2 inch trade size, this connector supports quick installation, easier maintenance, and long-term cost efficiency for high-stakes electrical installations. Leverage Eaton Crouse-Hinds reliability to meet code-heavy projects while simplifying sourcing and integration with FMC conduit systems.
Product Information
Extended Description
LTB150 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, Straight, Insulated, Malleable iron, 1-1/2"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB150
UPC
784564311504
Product Length/Depth
2.38 in
Product Height
2.44 in
Product Width
2.44 in
Product Weight
0.71 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
Straight
Material
Malleable iron
Insulator
Insulated
Trade size
1-1/2"
Eaton Crouse-Hinds LTB150 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LTB150
Feature: Liquidator liquidtight connector for FMC conduit, straight configuration, insulated design. Business impact: Delivers a secure, moisture-tight seal and rugged mechanical protection, reducing ingress and unplanned maintenance. Application: Ideal for control panels and field installations in chemical plants, refineries, and other hazardous locations. Feature: 1-1/2 inch trade size with compact dimensions (2.38 in length, 2.44 in height, 2.44 in width) and light 0.71 lb weight. Business impact: Enables easier handling in tight spaces, faster installs, and lower shipping/labor costs. Application: Fits standard FMC conduit runs in restricted electrical cabinets and outdoor enclosures. Feature: Malleable iron body with insulated insulator. Business impact: Provides high mechanical strength and reliable temperature/moisture performance, extending service life in harsh environments. Application: Suitable for production floors, mining areas, and chemical processing facilities. Feature: NEC/CEC compliance and hazardous location ratings (Class I, Division 2; Class II, Division 1 & 2; Class III). Business impact: Streamlines approvals, reduces rework risk, and supports multi-region installations. Application: Required where safety and regulatory adherence drive project timelines. Feature: Availability of technical resources (3D CAD drawings, catalogs, specification sheets). Business impact: Speeds up design validation, procurement, and integration with FMC conduit systems. Application: Used by design teams and procurement professionals for accurate BOMs and fast sourcing.
Get a Quick Quote for a Eaton Crouse-Hinds LTB150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB150?
Enquire Now
FAQs
When installing the LTB150, ensure compatibility with FMC conduit and the 1-1/2 in trade size. Use the straight connector in aligned runs to minimize bending stress, and verify a proper seal at the enclosure interface. The insulated malleable iron body provides robust protection; secure mounting with appropriate hardware and follow NEC/CEC guidelines for hazardous locations to maintain listed compliance.
The LTB150 complies with NEC/CEC standards and is rated for hazardous locations, including Class I, Division 2 and related classifications. It is UL-listed for metallic liquidtight fittings, supporting code compliance for both North American and Canada installations. These certifications help simplify approvals and ensure reliable operation in demanding environments.
Yes. The LTB150 is designed for hazardous/classified locations with NEC/CEC compliance and UL listing for metallic liquidtight fittings. Specific ratings include Class I, Division 2, Class II, Division 1 and 2, and Class III in applicable configurations, making it appropriate for chemical plants, oil & gas facilities, and mining environments.
The connector’s combination of a secure seal, durable malleable iron body, and insulated construction reduces moisture ingress and maintenance cycles. Its compact form and 1-1/2 inch trade size simplify installation in tight spaces, lowering labor costs. Regulatory compliance minimizes rework risk and accelerates commissioning across hazardous-location projects.
Official resources include the 3D CAD drawing package, the Crouse-Hinds catalog page for liquidtight fittings, UL certification reports, and the Eaton specification sheet for LTB150. These assets support design validation, BOM creation, and procurement, ensuring accurate integration with FMC conduit systems.
