Eaton LTB15045 Liquidator Connector - Hazardous Locations
Part Number: LTB15045
Quick Summary
LTB15045 Liquidator connector provides a rugged FMC solution for sealing and routing flexible metal conduit in hazardous classifications. In the field, installers grapple with corrosion, misalignment, and strict regulatory entries, and this connector helps by delivering a robust, maintainable solution that reduces rework. It meets NEC/CEC standards and hazardous-location ratings, including Class I, Division 2 and Class II/III where applicable, with Canadian certification support. By pairing a malleable iron body with insulated construction and a 1-1/2" trade size, it delivers reliable sealing while accelerating installation and simplifying ongoing maintenance. For procurement teams, documented design data, accessible CAD drawings, and consistent performance translate to lower lifecycle cost and improved project predictability.
Product Information
Extended Description

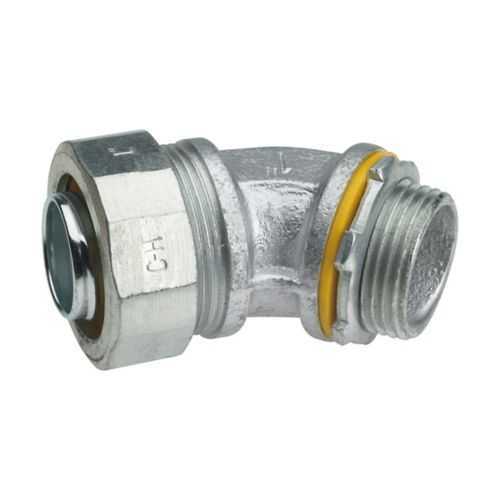

LTB15045 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 45° angle, Insulated, Malleable iron, 1-1/2"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB15045
UPC
784564461506
Product Length/Depth
3.75 in
Product Height
3.75 in
Product Width
2.44 in
Product Weight
1.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
45° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1-1/2"
Eaton Crouse-Hinds LTB15045 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB15045
Feature: 45° angle FMC liquidtight design. Business Impact: Enables precise routing of conduit around equipment with minimal bending strain, reducing installation time and protecting cable integrity in tight spaces. Application: Industrial automation panels and pump houses where space is constrained and reliability matters. Feature: Insulated malleable iron construction. Business Impact: Provides durable, corrosion-resistant sealing suitable for harsh environments, lowering maintenance cycles and replacement costs. Application: Hazardous or Classified Locations in oil, gas, or chemical plants requiring robust protection. Feature: 1-1/2" trade size. Business Impact: Standardized sizing aligns with common field installations, accelerating field fit-ups and reducing misfits. Application: FMC conduit systems across distribution and control cabinets. Feature: NEC/CEC compliance and hazardous-location ratings. Business Impact: Ensures regulatory alignment and reduces risk of noncompliance penalties, supporting safer commissioning. Application: Projects governed by NEC/CEC and local codes in North America. Feature: Documentation access and compatibility. Business Impact: CAD drawings, catalogs, and certification reports streamline sourcing, estimation, and installation. Application: Design validation and procurement workflows. Feature: Weight and dimensional data. Business Impact: Facilitates accurate bill-of-materials and space planning for panel layouts. Application: System design reviews and on-site installations.
Get a Quick Quote for a Eaton Crouse-Hinds LTB15045
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB15045?
Enquire Now
FAQs
LTB15045 is designed specifically for FMC liquidtight conduit with a 1-1/2" trade size. Its 45° angle and insulated malleable iron body support secure, code-compliant connections in hazardous locations, including Class I, Division 2, and related classifications. It integrates with standard FMC fittings and aligns with NEC/CEC requirements, making on-site installs predictable and repeatable.
The LTB15045 carries NEC hazardous-location ratings (Class I, Division 2; Class II, Division 1/2; Class III) and is designed for use in hazardous/classified locations. Its insulated malleable iron body provides durable sealing under demanding conditions, while the 1-1/2" trade size ensures robust mechanical engagement with compatible FMC conduit. These features collectively enhance safety, compliance, and lifetime reliability in challenging environments.
Yes. The LTB15045 is suitable for hazardous-location applications typical of oil, gas, and chemical facilities. Its liquidtight FMC design, 45° connector angle, and insulating construction help protect electrical terminations from moisture, dust, and chemical exposure, while NEC/CEC compliance and Class I Division 2 ratings support safe operation and regulatory adherence in these industries.
Comprehensive documentation includes 3D CAD drawings, a Crouse-Hinds catalog page for liquidtight fittings, Canadian certification references, and a dedicated Eaton specification sheet for LTB15045. These resources assist with design validation, material takeoffs, and field installation planning, ensuring correct part selection and faster project execution.
The LTB15045 offers reduced installation time due to standardized sizing and a straightforward FMC connection, plus prolonged service life from insulated malleable iron construction. Compliance with NEC/CEC and hazardous-location ratings minimizes rework risk, contributing to lower lifecycle costs and faster project commissioning in challenging facilities.
