Eaton LTB15090GC Liquidator - 90° FMC, Hazardous
Part Number: LTB15090GC
Quick Summary
Eaton LTB15090GC Liquidator is a rugged liquidtight connector for FMC conduit used in hazardous industrial environments. When wiring in classified locations, installers confront corrosion, grounding gaps, and rework from fittings that don’t seal or ground reliably. This model delivers a 90° elbow for tight spaces, insulated housing, and a copper ground lug that maintains continuity under demanding conditions. It carries NEC/CEC compliance and hazardous-location ratings, including Class I Division 2, Class II Division 1 and 2, and Class III, backed by UL certification for metallic fittings. By combining solid malleable iron construction with a 1-1/2" trade size and #4–14 AWG lug range, it supports code-compliant, scalable installations while reducing field downtime and maintenance costs. Ideal for automation panels, chemical plants, and oil & gas facilities.
Product Information
Extended Description

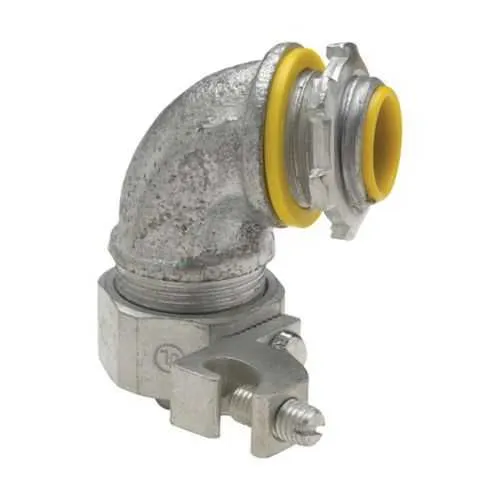

LTB15090GC Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Copper ground lug, Insulated, #4-14 AWG lug size, Malleable iron, 1-1/2"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB15090GC
UPC
784564253279
Product Length/Depth
3.81 in
Product Height
3.81 in
Product Width
2.44 in
Product Weight
1.24 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
1-1/2"
Ground lug material
Copper
Lug size
#4-14 AWG
Eaton Crouse-Hinds LTB15090GC 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LTB15090GC
Feature: 90° liquidtight FMC connector enables compact installs in crowded control cabinets. Business Impact: Reduces the need for extra elbows and complex routing, cutting wiring time and potential leakage points. Application: Automation panels and hazardous-location enclosures where space is at a premium. Feature: Malleable iron, insulated body with copper ground lug delivers robust mechanical protection and reliable grounding. Business Impact: Improves safety margins and earth continuity, lowers rework from corrosion or loose grounds. Application: Chemical processing and refinery environments with aggressive atmospheres. Feature: Trade size 1-1/2" and lug range #4-14 AWG provide direct compatibility with common field conductors. Business Impact: Streamlines wiring diagrams, reduces inventory variety, and speeds panel builds. Application: Industrial automation harnesses and machine wiring. Feature: NEC/CEC compliance with Class I, II, III hazardous-location ratings and UL certification. Business Impact: Lowers compliance risk, accelerates approvals and inspections, and supports safe operation in critical facilities. Application: Oil & gas, mining, and other regulated sites. Feature: Availability of 3D CAD drawings, catalogs, and spec sheets. Business Impact: Enables precise engineering, faster procurement, and error-free integrations. Application: Engineering design, QA reviews, and BOM creation. Feature: 1-1/2" trade size, copper ground lug, and insulator design provide durable performance in tough environments. Business Impact: Longer service life, reduced maintenance cycles, and predictable uptime. Application: Industrial automation installations in hazardous locations with rigorous uptime requirements.
