Eaton Crouse-Hinds LTB15090SS Liquidtight Connector - Hazardous Locations
Part Number: LTB15090SS
Quick Summary
LTB15090SS liquidtight connector is designed to protect FMC conduits in harsh industrial environments. Engineers often struggle with reliable sealing and quick installation in hazardous locations. This fitting carries NEC/CEC compliance with hazardous area ratings including Class I, Division 2, Class II, Division 1 and 2, and Class III, along with area classifications for Hazardous/Classified Locations. Constructed from stainless steel and insulated, it delivers corrosion resistance and long service life, while its 1-1/2 inch trade size and 90° angle simplify routing. For procurement teams, the rugged build, certified ratings, and seamless FMC compatibility translate to lower field risk, reduced rework, and faster commissioning.
Product Information
Extended Description

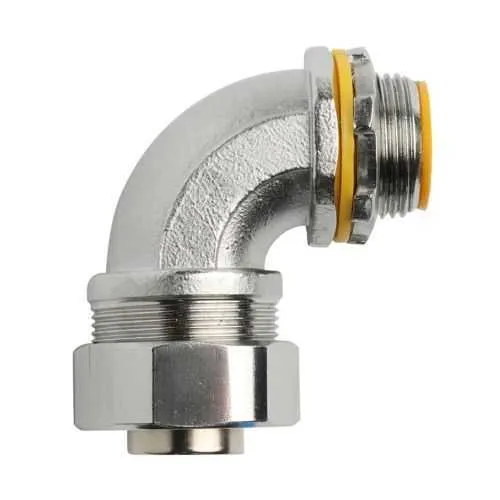

LTB15090SS Eaton Crouse-Hinds: Eaton Crouse-Hinds series liquidtight connector, FMC, 90° angle, Insulated, Stainless steel, 1-1/2"
Product Name
Eaton Crouse-Hinds series liquidtight connector
Catalog Number
LTB15090SS
UPC
662277038317
Product Length/Depth
3.52 in
Product Height
3.52 in
Product Width
2.39 in
Product Weight
1.04 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Stainless steel
Insulator
Insulated
Trade size
1-1/2"
Crouse-Hinds stainless steel conduit, cable and wire management brochure
Crouse-Hinds series Steel and Stainless Steel Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB15090SS
Feature → Business Impact → Application: The LTB15090SS uses a 90° FMC stainless steel liquidtight connector design to enable tight, space-saving conduit routing, reducing panel cutouts and potential ingress points in compact installations. This translates to faster, more reliable installations in restricted spaces and improved overall enclosure integrity in chemical plants or oil and gas facilities. Application: suitable for hazardous locations where space constraints and robust sealing are required, such as chemical processing or offshore platforms. Feature → Business Impact → Application: The 1-1/2 inch trade size provides a standardized interface with readily available FMC components, helping maintenance teams stock fewer parts and reducing downtime during replacements. Application: simplifies field upgrades and panel modernization in mid-size industrial facilities. Feature → Business Impact → Application: Stainless steel construction combined with insulation delivers superior corrosion resistance and thermal stability, extending service life in aggressive environments and washdown zones. Application: ideal for outdoor installations, refineries, and mining operations where exposure to moisture and chemicals is common. Feature → Business Impact → Application: NEC/CEC compliance and Hazardous/Classified Locations ratings (Class I Division 2, Class II/III ratings) streamline regulatory approvals and verification during audits. Application: supports compliance-driven projects in North America, including Canada, without design compromises. Feature → Business Impact → Application: Precise dimensions (3.52 in length/height, 2.39 in width, 1.04 lb weight) enable accurate space planning and weight budgeting in control panels and retrofit jobs. Application: conducive to high-density panel layouts and retrofits in modern plant automation systems. Industry context: As a stainless steel, insulated 90° liquidtight connector for FMC conduits, LTB15090SS aligns with long-term maintenance strategies, reducing corrosion-related failures and enabling consistent performance in hazardous locations while supporting OEM and contractor workflows with familiar, standard interfaces.
Get a Quick Quote for a Eaton Crouse-Hinds LTB15090SS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB15090SS?
Enquire Now
FAQs
To install the LTB15090SS, align the FMC conduit with the connector and secure it using listed fasteners per the manufacturer torque guidelines. Ensure the sealing gasket seats properly to maintain the integrity of the hazardous-location rating. Confirm NEC/CEC compliance and the applicable area classification before commissioning, and verify that the 1-1/2 inch trade size matches the conduit.
LTB15090SS combines a stainless steel, insulated body with a 90° bend and an FM/CEC- and NEC-rated construction, specifically approved for Class I Division 2 hazardous locations. The area-classification support and corrosion-resistant material help prevent ingress and corrosion-related failures, enabling safer operation in restricted zones and reducing maintenance interruptions.
Yes. The LTB15090SS is designed for FMC conduit and uses a 1-1/2 inch trade size, offering a standard interface that aligns with common FMC components. Its stainless steel insulated construction ensures consistent performance across typical field installations, making procurement and inventory management straightforward for maintenance teams.
LTB15090SS carries NEC/CEC standards with hazardous area ratings, including Class I Division 2, and supports Area Classification for Hazardous/Classified Locations. These certifications matter because they verify safe operation in demanding environments, simplify regulatory approvals, and help meet project-specific compliance requirements in North American facilities.
The LTB15090SS delivers durable stainless steel construction with insulation, reducing corrosion-related maintenance and extending service life in harsh environments. Its compliant design lowers field rework risk and speeds commissioning, translating to lower lifecycle costs and improved uptime for plants with stringent hazardous-location requirements.
