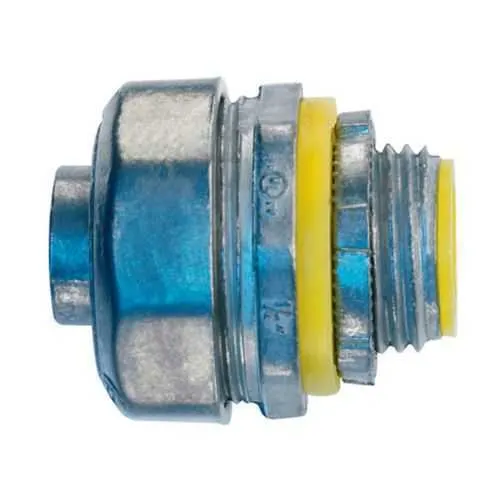

Eaton Crouse-Hinds LTB150DC Liquidtight Connector - Hazardous
Part Number: LTB150DC
Quick Summary
LTB150DC is a straight, liquidtight connector for FMC conduits used in hazardous-location electrical installations. Field projects often struggle with moisture ingress, certification gaps, and difficult terminations in tight spaces; this connector mitigates those pain points with a robust zinc die cast body and an insulated seal that simplifies installation. Key certifications include NEC/CEC compliance and hazardous-location ratings, specifically Class I Division 2; Class II Division 1 and 2; Class III, aligning with stringent industry requirements. Beyond compliance, the product delivers predictable performance and reduced maintenance, while remaining compatible with standard FMC fittings and 1-1/2 inch trade size for scalable, repeatable installations in harsh environments.
Product Information
Extended Description
LTB150DC Eaton Crouse-Hinds: Eaton Crouse-Hinds series liquidtight connector, FMC, Straight, Insulated, Zinc die cast, 1-1/2"
Product Name
Eaton Crouse-Hinds series liquidtight connector
Catalog Number
LTB150DC
UPC
662277000574
Product Length/Depth
2.23 in
Product Height
2.19 in
Product Width
2.19 in
Product Weight
0.68 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
Straight
Material
Zinc die cast
Insulator
Insulated
Trade size
1-1/2"
Crouse-Hinds series Zinc Die Cast Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB150DC
Feature: Straight FMC liquidtight connector with insulated zinc die cast body and a 1-1/2 inch trade size. Business impact: Delivers a strong seal and durable construction that minimizes ingress and corrosion-related failures, cutting maintenance costs. Application: Ideal for compact terminations in control panels and equipment bays in hazardous environments.Feature: NEC/CEC compliance and hazardous-location ratings (Class I Division 2; Class II Division 1/2; Class III). Business impact: Ensures code compliance during inspections and avoids costly rework. Application: Used in oil and gas facilities, chemical plants, and mining operations where certified fittings are mandatory.Feature: Dimensions 2.23 in length, 2.19 in height and width, weight 0.68 lb. Business impact: Lightweight yet robust, enabling easier routing in dense assemblies and reducing shipping/handling costs. Application: Suitable for tight control cabinets and space-constrained installations.Feature: Zinc die cast material with insulated construction. Business impact: Provides corrosion resistance and safe insulation, reducing risk of shorts and moisture-related failures. Application: Harsh industrial environments with exposure to moisture, dust, and chemicals.Feature: Compatibility with standard FMC fittings and availability of technical literature. Business impact: Accelerates field installs, minimizes custom adapters, and supports faster commissioning. Application: Retrofit projects and new builds in automation and process facilities seeking proven, standards-aligned terminations.
Get a Quick Quote for a Eaton Crouse-Hinds LTB150DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB150DC?
Enquire Now
FAQs
The LTB150DC is a straight, insulated FMC connector with a 1-1/2 inch trade size and a zinc die-cast body. When installing, align the FMC conduit precisely, ensure the gasket/seal seats properly, and follow NEC/CEC guidelines for hazardous locations. Use the recommended torque on the coupling and verify complete enclosure integrity to prevent ingress. This approach minimizes rework and maintenance later in the life of the installation.
LTB150DC is designed for hazardous/classified locations, with NEC/CEC compliance and ratings including Class I Division 2, Class II Division 1, Class II Division 2, and Class III. This means it supports safe operation in environments with flammable gases, flammable dust, and other hazardous conditions. The combination of inspection-ready documentation and tested performance helps ensure regulatory satisfaction and safer installations.
Yes. The LTB150DC is a straight, 1-1/2 inch trade size connector built to integrate with standard FMC conduits and fittings. Its insulated zinc die-cast body is designed to mate with conventional FMC components, enabling straightforward retrofits and new installations. This compatibility reduces sourcing complexity and supports faster commissioning in automation panels and field junctions.
Certification and datasheet resources are available through Eaton’s documentation and UL/Canada certification reports. The product also lists NEC/CEC compliance and hazardous-location ratings. For installation guidance, consult the Eaton Specification Sheet for LTB150DC and the Crouse-Hinds catalog pages, which provide dimensional data, torque values, and compatibility notes.
The LTB150DC provides a durable, corrosion-resistant zinc die-cast body with insulation that reduces moisture ingress and electrical shorts. Its robust construction lowers field rework, accelerates installation, and helps ensure ongoing compliance with NEC/CEC in hazardous locations. Over time, this can translate to shorter downtime, fewer component replacements, and a lower total cost of ownership in harsh industrial environments.
