Eaton LTB20090DC Liquidtight Connector - Hazardous/Classified Locations
Part Number: LTB20090G
Quick Summary
The Eaton LTB20090DC liquidtight connector delivers reliable FMC conduit entry for hazardous and classified locations. Engineers often struggle to maintain NEC/CEC compliance while fitting connectors into tight enclosures and harsh environments. This solution supports NEC/CEC compliance and hazardous-location ratings, including Class I, Division 2; Class II, Division 1 and Division 2; and Class III. Its insulated, zinc die-cast body and 2-inch trade size promote durable installations, space-efficient layouts, and reliable sealing in demanding industrial control panels. Designed for seamless integration with the Eaton Crouse-Hinds liquidtight family, it helps reduce field wiring time and sourcing complexity across multiple projects.
Product Information
Extended Description

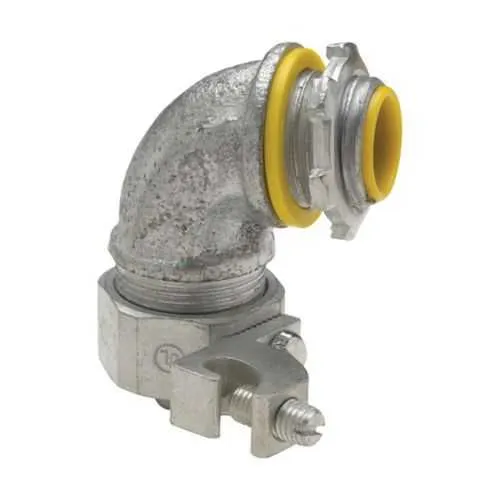

LTB20090G Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Aluminum ground lug, Insulated, #4-14 AWG lug size, Malleable iron, 2"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB20090G
UPC
784564264466
Product Length/Depth
3.94 in
Product Height
3.94 in
Product Width
3 in
Product Weight
1.77 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
2"
Ground lug material
Aluminum
Lug size
#4-14 AWG
Eaton Crouse-Hinds LTB20090G 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LTB20090G
Feature: 90° angle FMC liquidtight connector with insulated zinc die-cast body. Business Impact: enables tight-radius routing and durable protection against moisture and dust, reducing rework in harsh environments. Application: ideal for control panels and junction boxes in hazardous locations. Feature: 2" trade size and compact footprint (3.9 in L, 5.2 in W, 5.6 in H). Business Impact: streamlines panel layout and enclosure design, cutting install time and material costs. Application: fits standard FMC conduits in machine cells and process equipment. Feature: NEC/CEC compliance with Hazardous Location ratings (Class I Division 2; Class II Division 1 and 2; Class III). Business Impact: simplifies regulatory approvals and inspection readiness. Application: oil/gas, chemical processing, and heavy industry applications. Feature: insulated, zinc die-cast construction. Business Impact: long-term durability and resistance to corrosive environments; Application: offshore platforms, refineries, and chemical plants. Feature: compatibility with Eaton Crouse-Hinds series fittings. Business Impact: reduces parts inventory and ensures reliable mechanical and electrical continuity. Application: retrofit projects and new builds requiring standardized fittings in hazardous zones.
