Eaton LTB25090 Liquidator Connector - Hazardous Locations
Part Number: LTB25090
Quick Summary
Eaton LTB25090 Liquidator liquidtight connector provides rugged FMC terminations for hazardous-location conduit installations. In real-world plants, small misfits and slow install times drive downtime, leaks, and costly rework. Certified for Hazardous/Classified Locations under NEC/CEC, including Class I Division 2 and Class II/III ratings. Designed for 2-1/2 in trade-size FMC runs and insulated malleable-iron construction, it supports compliant, efficient installs while reducing spare-part variety.
Product Information
Extended Description

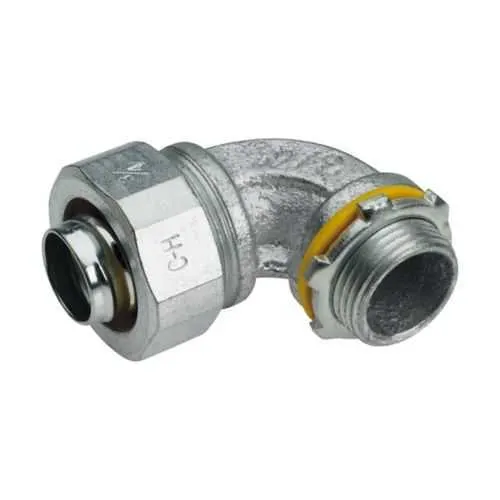

LTB25090 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Insulated, Malleable iron, 2-1/2"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB25090
UPC
784564912503
Product Length/Depth
9.31 in
Product Height
9.31 in
Product Width
4 in
Product Weight
8.38 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
2-1/2"
Eaton Crouse-Hinds LTB25090 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB25090
The 90° angle design in the Liquidator connector enables compact routing and minimizes bending stress, which translates to faster installations and fewer leak paths in tight equipment spaces. This means lower commissioning time and reduced field rework, especially in confined panels and instrument housings. The malleable iron body is insulated, providing robust mechanical protection and improved thermal performance, ideal for aggressive environments where dust, water, or chemicals can compromise fittings. By offering a reliable, sealed termination for FMC conduit, the unit helps maintain equipment integrity and extend service life, reducing maintenance costs over time. Compliance-ready design supports NEC/CEC requirements for Hazardous/Classified Locations, simplifying documentation and audit trails for oil & gas, chemical processing, and mining facilities.
Get a Quick Quote for a Eaton Crouse-Hinds LTB25090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB25090?
Enquire Now
FAQs
LTB25090 is designed specifically for FMC conduit and 2-1/2 in trade-size runs used in hazardous-location installations. Its 90° angle facilitates tight routing in control panels and switchgear, while the insulated malleable-iron body provides robust mechanical protection and reliable sealing in Class I, II, and III environments. When pairing with compatible gaskets and sealants, installation time is reduced and field leakage risks are minimized.
The 90° elbow arrangement of the LTB25090 minimizes conductor bending and selects a compact footprint, which is critical in confined electrical rooms and panel boards. This design reduces enclosure depth requirements and simplifies cable management, leading to faster terminations and fewer misalignments during assembly. The result is improved overall installation efficiency and a lower risk of conduit kinking or damage during routing.
Yes. The LTB25090 supports NEC/CEC hazardous-location standards with classifications including Class I Division 2, Class II Division 1 and 2, and Class III. This ensures suitable protection against ignition sources and environmental ingress in oil, gas, chemical, and mining environments. Always verify site-specific requirements and use appropriate gaskets and seals to maintain prescribed ratings.
The product is listed under NEC/CEC hazardous-location compliance and is supported by Eaton catalogs and the LTB25090 specification sheet. Documentation also references Canadian certifications and 3D CAD drawing packages to aid design integration. Access to these resources speeds up engineering reviews, reduces procurement risk, and helps maintain traceability for audits and maintenance planning.
Using LTB25090 can reduce installation time, minimize field leaks, and improve long-term reliability in hazardous environments. Its rugged malleable-iron construction and sealed design lower maintenance frequency and spare-parts requirements. Availability of CAD models and catalogs accelerates design cycles, enabling faster project delivery and a clearer pathway to compliant, year-round operation.
