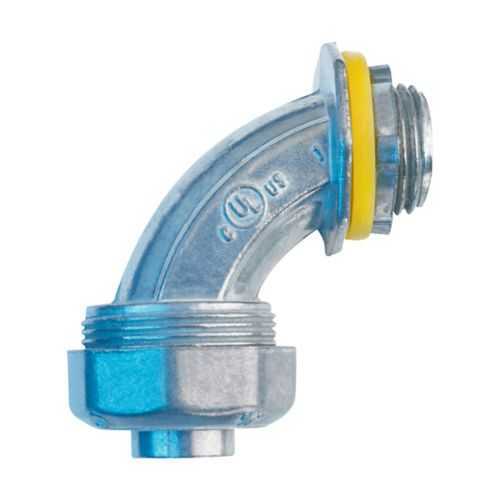

Eaton LTB25090DC Liquidtight Connector - Hazardous
Part Number: LTB25090DC
Quick Summary
The Eaton LTB25090DC liquidtight connector provides a rugged FMC sealing solution for hazardous industrial installations. Field technicians often face challenges securing reliable seals, meeting NEC/CEC compliance, and wiring efficiently in tight enclosures. This connector carries NEC hazardous ratings including Class I, Division 2 and Class II/III, with UL-based Canadian certifications to help teams meet cross-border standards and pass audits. Built for a 2-1/2 inch trade size with a zinc die cast insulated body and a 90 degree elbow, it enables quicker, more robust terminations. By combining durability, compliance, and installability, it reduces downtime and supports safer, maintenance-friendly conduit runs in oil, gas, and chemical environments.
Product Information
Extended Description
LTB25090DC Eaton Crouse-Hinds: Eaton Crouse-Hinds series liquidtight connector, FMC, 90° angle, Insulated, Zinc die cast, 2-1/2"
Product Name
Eaton Crouse-Hinds series liquidtight connector
Catalog Number
LTB25090DC
UPC
662277000819
Product Length/Depth
6 in
Product Height
5 in
Product Width
3.5 in
Product Weight
3.1 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Zinc die cast
Insulator
Insulated
Trade size
2-1/2"
Crouse-Hinds series Zinc Die Cast Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB25090DC
Feature → The 90° elbow design provides a compact routing solution for FMC conduit. Business Impact → Reduces field routing complexity and the number of fittings required, improving seal integrity and installation speed. Application → Ideal for control panels and motor control centers in confined hazardous areas. Feature → Zinc die cast insulated body delivers rugged durability and corrosion resistance. Business Impact → Extends service life in harsh environments, lowering maintenance costs. Application → Suitable for chemical plants, refineries, and other demanding facilities. Feature → 2-1/2 inch trade size supports standard large conduits, reducing the need for adapters. Business Impact → Streamlines procurement and field assembly, lowering labor time. Application → Heavy-duty power and control circuits in industrial plants. Feature → NEC/CEC compliance with area classification of Hazardous/Classified Locations and Class I Division 2 ratings. Business Impact → Simplifies procurement, audits, and cross-border projects. Application → Oil & gas facilities, chemical processing plants, and refineries. Feature → Overall footprint and weight (6 in length, 5 in height, 3.5 in width, 3.1 lb) aid in space planning. Business Impact → Improves enclosure layout accuracy and reduces over-sizing. Application → New installs and panel retrofits where space is at a premium.
Get a Quick Quote for a Eaton Crouse-Hinds LTB25090DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB25090DC?
Enquire Now
FAQs
Yes. The LTB25090DC is a 90° liquidtight connector designed specifically for FMC conduit and accepts standard FMC fittings. It provides a fixed 90° bend to optimize routing in tight spaces, with an insulated zinc die cast body that resists impact and corrosion, making it suitable for panel terminations and wall-mounted or ceiling-mounted installs in hazardous areas.
The LTB25090DC carries NEC hazardous location ratings including Class I Division 2 and Class II/III, aligning with NEC/CEC standards. It is intended for Hazardous/Classified Locations and, with UL Canadian certifications, supports cross-border compliance. This helps reduce audit risk and simplifies procurement for both US and Canadian projects.
Yes. The connector is designed for Class I Division 2 locations and also supports Class II and Class III ratings. Its 90° elbow, insulated zinc die cast body, and FMC compatibility provide secure terminations while maintaining enclosure integrity in hazardous environments such as chemical plants and refineries.
Plan routing to minimize bends and confirm the 2-1/2 inch trade size fits the conduit run. Check enclosure space using the 6 inch length, 5 inch height, and 3.5 inch width, and verify compatibility with your FMC fittings. For cross-border projects, ensure UL Canadian certifications are documented to satisfy local regulatory requirements.
The zinc die cast insulated construction delivers corrosion resistance and long service life, reducing maintenance frequency and part replacements. A single LTB25090DC can lower downtime during upgrades, simplify spare-part inventories, and provide predictable performance in hazardous area installations, contributing to a favorable total cost of ownership over the equipment lifecycle.
