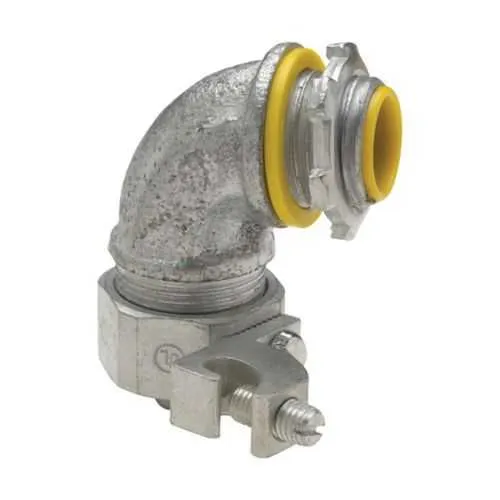

Eaton LTB25090G Liquidator liquidtight connector - NEC/CEC
Part Number: LTB25090G
Quick Summary
Liquidator liquidtight connector is a rugged FMC fitting designed for hazardous area wiring in industrial facilities. Engineers often wrestle with meeting stringent safety codes while fitting large conductors in tight spaces; this connector addresses that by pairing a robust malleable iron body with an insulated design and a reliable aluminum ground lug. It carries NEC/CEC standards and UL certifications for metallic liquidtight fittings, and is rated for Hazardous/Classified Locations (Class I, Division 2; Class II, Division 1/2; Class III). For procurement and project planning, the LTB25090G offers compatible 2-1/2" trade size FMC and lug options with #1/0-8 AWG conductors, delivering faster installs and reduced field rework.
Product Information
Extended Description
LTB25090G Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Aluminum ground lug, Insulated, #1/0-8 AWG lug size, Malleable iron, 2-1/2"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB25090G
UPC
784564264473
Product Length/Depth
9.31 in
Product Height
9.31 in
Product Width
4 in
Product Weight
8.47 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
2-1/2"
Ground lug material
Aluminum
Lug size
#1/0-8 AWG
Eaton Crouse-Hinds LTB25090G 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LTB25090G
Feature → 90° angle design enables tight-routing in confined panels, reducing enclosure footprint and simplifying cable management. Business Impact → Improves installation efficiency and reliability in control cabinets and equipment where space is at a premium, while maintaining a robust mechanical seal for FMC fittings. Application → Ideal for motor control centers, vending equipment, and rugged industrial machinery using FMC conduits. Feature → Malleable iron body with insulated construction provides durable, corrosion-resistant protection in harsh environments. Business Impact → Extends service life in non-sheltered locations and lowers maintenance cycles. Application → Suitable for outdoor enclosures and wet or dusty plants where protection class matters. Feature → Aluminum ground lug and large lug size (#1/0-8 AWG) support reliable grounding and versatile terminations. Business Impact → Reduces grounding impedance and simplifies conductor terminations for larger conductors. Application → Convenient in retrofit projects and new builds needing quick, code-compliant connections. Feature → NEC/CEC compliance with Hazardous/Classified Locations ratings and UL certification. Business Impact → Lowers project risk and accelerates approvals with proven, industry-standard performance. Application → Essential for plants in chemical, refining, or mining sectors. Feature → Clear dimensional and documentation compatibility, including 9.31 in length and weight 8.47 lb. Business Impact → Predictable fit in equipment bays and consistent performance across assemblies. Application → Streamlines CAD planning and procurement with downloadable catalogs and datasheets.
Get a Quick Quote for a Eaton Crouse-Hinds LTB25090G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB25090G?
Enquire Now
FAQs
The LTB25090G is designed for FMC conduit systems in hazardous locations, including Class I, Division 2 and Class II/III environments. It fits 2-1/2 inch trade-size FMC and accepts #1/0-8 AWG conductors, delivering a robust, code-compliant connection in control panels, motors, and equipment cages.
Key specs include a 90° angle configuration, malleable iron body, insulated construction, aluminum ground lug, 2-1/2 inch trade size, and lug size rated for #1/0-8 AWG conductors. Overall dimensions are 9.31 in length and height with a 4 in width, facilitating compact installations.
It adheres to NEC/CEC standards and is rated for Hazardous/Classified Locations, including Class I Division 2, Class II Division 1/2, and Class III. UL certifications for metallic liquidtight fittings reinforce its safety and suitability for critical industrial applications.
Yes. The LTB25090G is listed with NEC/CEC standards and UL certification for metallic liquidtight fittings, and it aligns with Canadian regulatory expectations, enabling cross-border installation without redesigns.
Leverage the 9.31 in length, 8.47 lb weight, and #1/0-8 AWG lug compatibility to minimize field adjustments and rework. Pair with the provided CAD drawings and catalog references to ensure precise fitment, faster commissioning, and long-term reliability in harsh settings.
