Eaton LTB30090 Liquidator - Hazardous Locations
Part Number: LTB30090
Quick Summary
The Eaton Crouse-Hinds Liquidator liquidtight connector is a rugged FMC fitting designed for hazardous locations. Installers often struggle with moisture ingress and tight spaces in control rooms and outdoor enclosures. This model supports NEC/CEC compliance with Class I, Division 2 and related classifications, enabling safe, code-ready installations. Its 3-inch trade size and insulated malleable iron body deliver durable protection against moisture, dust and vibration. Designed for fast field assembly, it reduces installation time and minimizes field rework in demanding FMC conduit applications. For procurement teams and engineers, compatibility with standard liquidtight fittings and access to CAD resources simplify design reviews and approvals.
Product Information
Extended Description

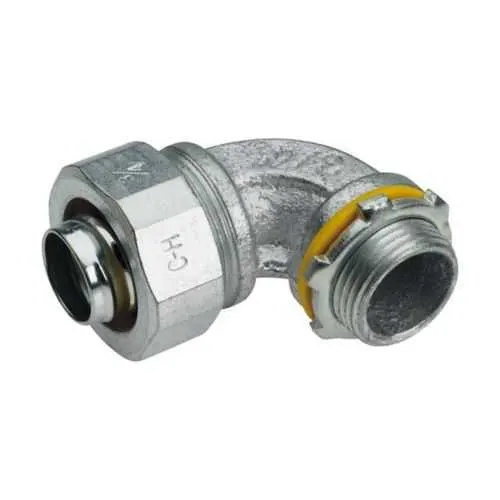

LTB30090 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Insulated, Malleable iron, 3"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB30090
UPC
784564913005
Product Length/Depth
10.94 in
Product Height
10.94 in
Product Width
4.19 in
Product Weight
12.35 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
3"
Eaton Crouse-Hinds LTB30090 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LTB30090
The 90-degree Liquidator design accelerates routing in confined spaces, lowering installation time and reducing field errors for FMC conduit installations. This translates to faster panel upgrades and fewer rework cycles in demanding environments where reliable sealing matters. The insulated malleable iron body provides rugged protection against moisture, dust, and vibration, improving long-term reliability in chemical plants, mining facilities, and other harsh locations. A 3-inch trade size accommodates larger conduits, reducing the need for adapters and simplifying inventory management, which lowers total installed cost and accelerates project timelines. NEC/CEC compliance and Hazardous/Classified Locations ratings ensure safe operation and easier regulatory approvals for projects in Class I, II, and III areas. Availability of CAD drawings and catalogs speeds design validation and procurement, supporting faster project handoffs and reduced engineering risk.
Get a Quick Quote for a Eaton Crouse-Hinds LTB30090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB30090?
Enquire Now
FAQs
LTB30090 is installed per NEC/CEC guidelines for Class I, Division 2 locations. Ensure the enclosure and conduit system are compatible with FMC fittings, verify space for the 90° bend, and align the connector with the conduit run. Use proper sealing, tighten according to standard torque recommendations, and verify the insulating body is intact to maintain Class I Division 2 integrity. This approach minimizes moisture ingress and ensures a robust seal in harsh environments.
LTB30090 is a 90-degree liquidtight connector for FMC conduit, made from insulated malleable iron, with a 3 inch trade size. It weighs about 12.35 pounds and measures roughly 10.94 inches in length and height, with a width of 4.19 inches. It carries NEC/CEC compliance and is rated for Hazardous/Classified Locations, including Class I, Division 2 and related classifications.
Yes. The LTB30090 is designed for harsh environments typical of chemical processing facilities, offering an insulated, corrosion-resistant body and a sealed 90° connection that helps prevent moisture and dust ingress. The hazardous-location ratings and NEC/CEC compliance support safe operation in environments with flammable or ignitable atmospheres, making it a practical choice for chemical processing equipment enclosures and control panels.
LTB30090 complies with NEC/CEC standards and is rated for Hazardous/Classified Locations, including Class I, Division 2, as well as associated Class II and III classifications. UL certification references are available, and Eaton provides specification sheets and catalog pages to support compliance verification during engineering reviews and audits.
The rugged insulated malleable iron construction reduces corrosion and wear in challenging environments, extending service life and lowering maintenance costs. Its 3-inch trade size minimizes the need for adapters, simplifying spares and inventory. The 90° design speeds installation, reducing labor hours and downtime during panel upgrades or new installations, delivering a favorable return on investment over the equipment’s life cycle.
