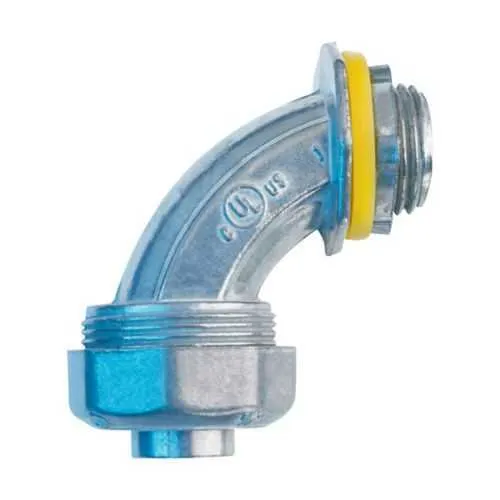

Eaton Crouse-Hinds LTB30090DC Liquidtight Connector - Hazardous/Classified Locations
Part Number: LTB30090DC
Quick Summary
Liquidtight connector solutions like the LTB30090DC deliver secure, moisture-resistant FMC connections for hazardous industrial locations. For engineers, tight spaces and harsh environments are daily challenges, and reliable terminations are essential to prevent downtime. This Eaton Crouse-Hinds offering emphasizes NEC/CEC compliance, UL listings for metallic liquidtight fittings, and hazardous-location ratings to support safe, code-compliant installations. By combining a zinc die-cast insulated body with a robust 3" trade size and 90° configuration, it reduces maintenance costs and field rework. In practice, it supports quick assembly and durable service in chemical plants, mining operations, and other demanding settings while integrating smoothly with existing FMC conduit systems.
Product Information
Extended Description
LTB30090DC Eaton Crouse-Hinds: Eaton Crouse-Hinds series liquidtight connector, FMC, 90° angle, Insulated, Zinc die cast, 3"
Product Name
Eaton Crouse-Hinds series liquidtight connector
Catalog Number
LTB30090DC
UPC
662277000826
Product Length/Depth
8 in
Product Height
6 in
Product Width
3.2 in
Product Weight
4.65 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Zinc die cast
Insulator
Insulated
Trade size
3"
Crouse-Hinds series Zinc Die Cast Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LTB30090DC
90° angle design enables tight routing and space optimization, lowering enclosure footprint and eliminating redundant elbow fittings; this translates to faster installations and reduced labor costs on complex control panels and equipment cabinets. The zinc die-cast body with insulated construction provides rugged protection against corrosion and environmental exposure, delivering long-term reliability in harsh industrial environments and helping meet plant maintenance targets. Meeting NEC/CEC requirements alongside hazardous-location ratings (Class I, Division 2; Class II, Division 1 and 2; Class III) mitigates regulatory risk and supports compliant installations in hazardous areas such as chemical processing and mining—reducing the need for alternate protection schemes. The 3" trade size, 8" length, 6" height, and 3.2" width, with a 4.65 lb weight, offer a balanced form factor for typical FMC fittings, enabling predictable procurement and scalable layouts. The insulated design improves handling and safety during assembly, while compatibility with other Eaton Crouse-Hinds fittings streamlines stocking and interoperability, reducing inventory variety and simplifying maintenance planning. In real-world projects, these traits combine to shorten installation times, improve uptime, and lower lifecycle costs, even when customers demand strict compliance and traceable documentation. Datasheets and catalogs provide clear guidance for integration and procurement without compromising on performance.
Get a Quick Quote for a Eaton Crouse-Hinds LTB30090DC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB30090DC?
Enquire Now
FAQs
LTB30090DC is designed for FMC conduit with a 3" trade size and non-tilt 90° angle. Installation should follow standard liquidtight conduit practices per NEC/CEC, using compatible fittings and gaskets, and ensuring proper torque on connection hardware to maintain the watertight and dust-tight seals required for hazardous locations.
The connector supports NEC/CEC standards and hazardous-location ratings, including Class I, Division 2; Class II, Division 1 and 2; and Class III. UL certification is available for metallic liquidtight fittings, and listings cover Canada as indicated in the related certification reports and datasheets.
Yes. The LTB30090DC is designed for hazardous or classified locations, with area classifications and NEC/CEC compliance to enable safe use in environments such as chemical plants and mining operations. Always verify your specific installation per local codes and the product’s certification scope.
Product length is 8 in, height is 6 in, and width is 3.2 in. The connector weighs approximately 4.65 lb, with a 3" trade size suitable for standard FMC conduit terminations in compact enclosures.
Downloads include the Crouse-Hinds Zinc Die Cast Liquidtight Fittings catalog page, the UL certification pages for metallic liquidtight fittings, and the Eaton Specification Sheet for LTB30090DC. These resources provide detailed specifications, installation guidance, and compliance information for procurement and engineering reviews.
