Eaton LTB30090G Liquidator liquidtight connector - NEC/CEC
Part Number: LTB30090G
Quick Summary
Liquidator liquidtight connector is a rugged FMC fitting designed for hazardous-location conduit runs in industrial facilities. Engineers often struggle with selecting a fitting that withstands harsh environments while meeting stringent codes, providing reliable grounding, and fitting into tight spaces. This model aligns with NEC/CEC standards and hazardous-location ratings, featuring an aluminum ground lug and insulated malleable-iron body to ensure safe, durable service. By standardizing on the LTB30090G, procurement simplifies part selection and accelerates compliant installations across FMC fittings, especially for 3 inch trade-size runs, reducing downtime and total cost of ownership.
Product Information
Extended Description

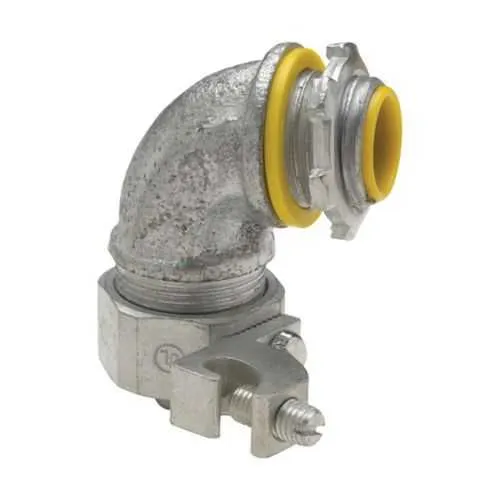

LTB30090G Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Aluminum ground lug, Insulated, #1/0-8 AWG lug size, Malleable iron, 3"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB30090G
UPC
784564264480
Product Length/Depth
10.94 in
Product Height
10.94 in
Product Width
4.19 in
Product Weight
12.43 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
3"
Ground lug material
Aluminum
Lug size
#1/0-8 AWG
Eaton Crouse-Hinds LTB30090G 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB30090G
Feature: 90° angle FMC liquidtight connector. Benefit: Enables compact, precise routing in constrained electrical spaces, improving install time and reducing field customization. Application: Use in 3 inch trade-size FMC conduit runs in hazardous locations, delivering reliable seals and easier terminations. Feature → Business Impact → Application: Rugged malleable iron body resists impact and wear in industrial environments, supporting longer service life and lower maintenance costs; Applied in harsh facilities where mechanical stress is common. Feature → Business Impact → Application: Insulated construction combined with an aluminum ground lug ensures dependable grounding while protecting conductors from moisture and contamination, accelerating compliance during audits. Feature → Business Impact → Application: Lug size #1/0-8 AWG accommodates standard heavy-conductor practices, enabling quick terminations and broad compatibility with common electrical gear. Feature → Business Impact → Application: 3" trade size with a 10.94 in length/depth and 4.19 in width supports integrated installations in large FMC systems while maintaining manageability on the job. Industry context: This combination aligns with Crouse-Hinds catalog guidance and supports safer, code-compliant hazardous-location installations across manufacturing, chemical, and refining facilities.
