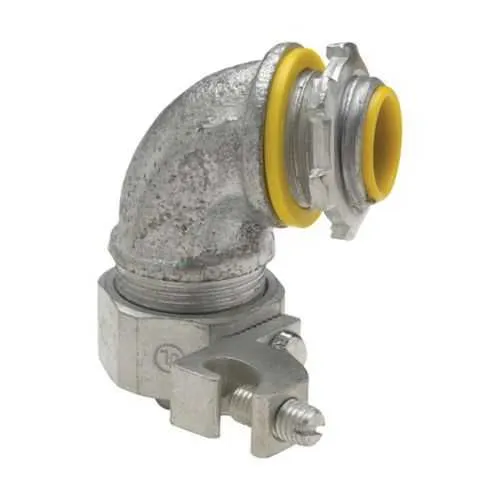

Eaton Crouse-Hinds LTB30090GC Liquidator - 90° FMC
Part Number: LTB30090GC
Quick Summary
The Eaton Crouse-Hinds LTB30090GC Liquidator liquidtight connector securely joins FMC conduits in hazardous industrial environments. This rugged 90° angle fitting addresses common installation chokepoints, such as tight spaces and misaligned conduits, to reduce field rework and downtime. It is compliant with NEC/CEC standards and rated for hazardous/classified locations, including Class I, Division 2 and Class II/III environments. The insulated malleable iron body, copper ground lug, and 3 inch trade size deliver reliable grounding and durable service life. By combining robust construction with easy installation, this connector supports safer, code-compliant installations while enabling procurement teams to simplify spec writing and reduce total costs.
Product Information
Extended Description
LTB30090GC Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Copper ground lug, Insulated, #1/0-8 AWG lug size, Malleable iron, 3"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB30090GC
UPC
784564253309
Product Length/Depth
10.94 in
Product Height
10.94 in
Product Width
4.19 in
Product Weight
12.2 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
3"
Ground lug material
Copper
Lug size
#1/0-8 AWG
Eaton Crouse-Hinds LTB30090GC 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Eaton Specification Sheet - LTB30090GC
Feature: FMC conduit type enables direct, tight-routing connections. Business Impact: Minimizes bending radii and installation time, reducing on-site labor costs. Application: Ideal for compact electrical rooms and machinery enclosures. Feature: 90° angle design. Business Impact: Improves routing in constrained spaces, lowering the risk of conductor damage. Application: Offshore platforms, chemical processing lines, and manufacturing cells. Feature: Copper ground lug. Business Impact: Ensures reliable grounding and bonding, supporting compliance with electrical codes. Application: Hazardous locations and equipment enclosures requiring robust earth continuity. Feature: Insulated malleable iron body. Business Impact: Delivers durable performance in demanding environments and reduces corrosion concerns. Application: Heavy industrial settings with exposure to oils, dust, or moisture. Feature: Trade size 3" and lug size #1/0-8 AWG. Business Impact: Broad compatibility with common feeder conductors, simplifying design and stocking. Application: Panel feeders and branch circuits in process industries. Feature: NEC/CEC compliance and hazardous-location ratings. Business Impact: Mitigates regulatory risk and accelerates approval cycles. Application: Facilities with strict safety and certification requirements. Feature: Grounding and mechanical strength combined with downloadable assets. Business Impact: Accelerates project kickoff and commissioning with readily accessible documentation. Application: Engineering spec reviews and installation planning.
Get a Quick Quote for a Eaton Crouse-Hinds LTB30090GC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB30090GC?
Enquire Now
FAQs
The LTB30090GC is designed for FMC (flexible metal conduit) installations. Its 3 in trade size and #1/0-8 AWG lug accommodate common feeder and branch conductors, facilitating quick, secure connections in tight spaces.
It complies with NEC/CEC standards and is rated for Hazardous/Classified Locations, including Class I, Division 2, and Class II/III environments, helping meet regulatory and safety requirements in demanding facilities.
Trade size is 3 inches with a copper ground lug and lug size of #1/0-8 AWG. The body is insulated malleable iron, and the unit weighs about 12.2 lb with overall dimensions around 10.94 in in length and height, 4.19 in width.
The 90° angle reduces bending radius and aligns conduits more efficiently, minimizing field adjustments, speeding up assembly, and reducing potential conductor damage in cramped panels or equipment rooms.
Yes. Downloadable assets include a 3D CAD drawing package, a Crouse-Hinds catalog page for liquidtight fittings, and the Eaton specification sheet, all useful for design reviews, BOM creation, and installation planning.
