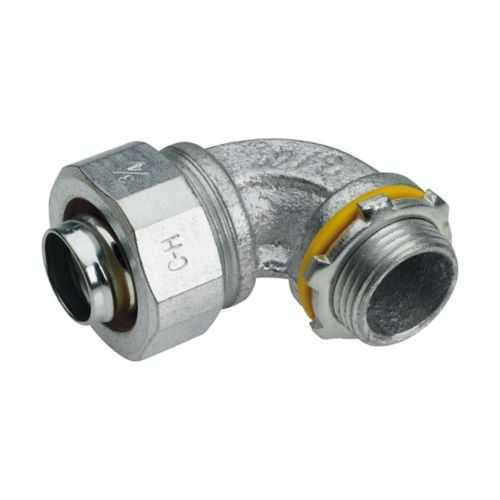

Eaton LTB35090 Liquidator Liquidtight Connector - 90° FMC
Part Number: LTB35090
Quick Summary
Eaton LTB35090 Liquidator liquidtight connector provides rugged, moisture-tight FMC terminations for hazardous-location equipment. This 90° insulated fitting helps electricians route cables through confined spaces without compromising integrity. Many installations struggle with corrosion, misalignment, or noncompliant gear in classified areas, leading to maintenance and downtime. The connector carries NEC/CEC standards alignment and is rated for hazardous environments, including Class I Division 2, Class II Division 1 and 2, and Class III locations. Its malleable iron body, insulating cover, and 3-1/2-inch trade size deliver dependable protection against moisture and dust while simplifying field assembly. By combining robust construction with certified compliance, it supports reliable operation, reduces service calls, and accelerates project commissioning in plant floors, chemical processing, and offshore facilities.
Product Information
Extended Description
LTB35090 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Insulated, Malleable iron, 3-1/2"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB35090
UPC
784564913500
Product Length/Depth
9.1 in
Product Height
6.7 in
Product Width
21.1 in
Product Weight
20.25 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
3-1/2"
Eaton Crouse-Hinds LTB35090 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
90° FMC liquidtight design enables tight routing in equipment enclosures and cable trays, reducing wiring length and eliminating sharp bends. This translates to faster terminations, fewer reworks, and improved seal integrity in critical installations for chemical plants and refineries. Malleable iron construction with insulated body delivers rugged durability and corrosion resistance, extending service life in outdoor, damp, or chemically aggressive environments. The 3-1/2 inch trade size fits standard FMC conduit entries, minimizing the need for adapters and simplifying spares management. Certification-backed ratings—Hazardous/Classified Locations with NEC/CEC compliance and Class I, Division 2 as well as Class II and III provisions—reduce compliance risk and facilitate project approvals. Easy field installation with common tools supports quicker commissioning and lower labor costs. In industry contexts like oil and gas, petrochemicals, and power generation, this connector reduces downtime and enhances safety margins.
Get a Quick Quote for a Eaton Crouse-Hinds LTB35090
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB35090?
Enquire Now
FAQs
LTB35090 is designed specifically for FMC conduit systems with a 3-1/2 inch trade size. Its 90° angle supports tight routing in enclosures and trays, while the insulated, malleable iron body ensures a secure, moisture-resistant seal. This makes it ideal for transitioning cables in constrained industrial spaces without adapters or modification, reducing installation time and potential leakage points.
The LTB35090 is specified for Hazardous/Classified Locations and aligns with NEC/CEC standards. It carries NEC hazardous ratings including Class I, Division 2, as well as Class II Division 1 and 2 and Class III. These certifications support compliance in chemical plants, oil and gas facilities, and other regulated environments, helping to pass site inspections and approval processes.
Yes. The LTB35090 is engineered for hazardous-location applications common in oil & gas and chemical processing industries. Its insulating, malleable iron construction and 90° liquidtight design provide reliable moisture exclusion and durability under demanding conditions. It supports compliant terminations in Class I Division 2 and related classifications, reducing risk of conduit leaks and improving safety on critical process lines.
The 90° configuration reduces bending radius and enables direct routing through tight spaces, minimizing the need for additional fittings. This lowers labor time, curtails inventory complexity, and improves seal integrity by reducing field joints. For ongoing maintenance, the fitment supports quick disassembly and reassembly, speeding up troubleshooting and component replacements in dense electrical rooms.
LTB35090 has a length of 9.1 in, height of 6.7 in, width of 21.1 in, and a product weight of 20.25 lb. The UPC is 784564913500. These specifications help with enclosure planning, clearance checks, and spare-part provisioning, ensuring the fitting can be accommodated within existing spaces and supports predictable field inventory for large-scale deployments.
