Eaton LTB35090GC Liquidator - FMC 90° Connector (Hazardous)
Part Number: LTB35090GC
Quick Summary
LTB35090GC is a rugged liquidtight connector designed for FMC conduit systems in hazardous locations. Engineers often face space constraints, rugged environments, and the burden of proving compliance under NEC/CEC codes. This unit carries NEC hazardous ratings including Class I, Division 2 and supports Class II and Class III locations, ensuring safe operation in volatile industrial settings. With a copper ground lug, insulated body, and a 3-1/2 inch trade size, it delivers reliable grounding and easier, code-compliant installations across oil and gas, chemical processing, and manufacturing facilities. By combining durability with installation ease, it reduces downtime and long-term maintenance costs while meeting critical standards. This makes it a dependable choice for design engineers and procurement teams.
Product Information
Extended Description

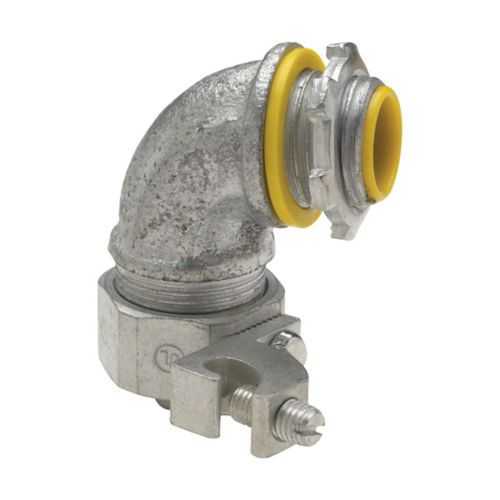

LTB35090GC Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 90° angle, Copper ground lug, Insulated, #3/0-6 AWG lug size, Malleable iron, 3-1/2"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB35090GC
UPC
784564253316
Product Length/Depth
12.38 in
Product Height
12.38 in
Product Width
5.25 in
Product Weight
20.4 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
90° angle
Material
Malleable iron
Insulator
Insulated
Trade size
3-1/2"
Ground lug material
Copper
Lug size
#3/0-6 AWG
Eaton Crouse-Hinds LTB35090GC 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings Canadian certification
Metallic Liquidtight Fittings Canadian certification
Feature: FMC conduit compatibility with a 3-1/2 inch trade size and a copper ground lug. Impact: delivers a moisture- and dust-resistant connection with robust grounding reliability in wet and corrosive environments. Application: ideal for chemical processing, mining, and oil and gas facilities where rugged, code-compliant fittings are essential. Feature: 90° angle design. Impact: saves panel and conduit routing space, streamline installations in cramped control rooms. Application: panel assemblies and compact junctions in industrial plants. Feature: Malleable iron body. Impact: enhances mechanical strength and vibration resistance in harsh environments. Application: manufacturing floors and outdoor installations with heavy equipment. Feature: Insulated construction. Impact: increases safety and insulation coordination, reducing risk of arcing and energization in hazardous areas. Application: high-energy control panels and motor starter sections. Feature: Copper ground lug and lug size #3/0-6 AWG. Impact: ensures solid bonding for long-term reliability and easier terminations with large conductors. Application: feeders and branch circuits in demanding facilities. Feature: 12.38 in length and 5.25 in width with 12.38 in height and a weight of 20.4 lb. Impact: sturdy, field-install-friendly dimensions with predictable handling characteristics. Application: heavy-duty installations requiring durable, serviceable fittings. Certification compatibility: NEC/CEC standards alignment and hazardous-location ratings support rapid approvals during commissioning. Feature: Catalog data and CAD resources available (3D drawing package and catalog pages). Impact: streamlines design integration, reduces project lead times, and improves BOM accuracy. Application: design and procurement workflows for large-scale projects.
