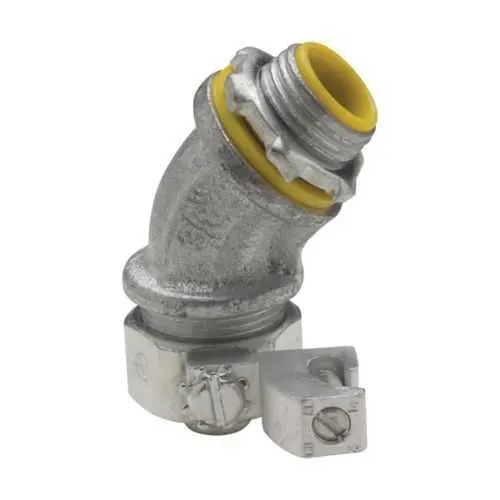

Eaton LTB3845GC Liquidator liquidtight connector - Hazardous
Part Number: LTB3845GC
Quick Summary
Liquidator liquidtight connector from Eaton provides secure FMC conduit connections in hazardous locations. Field installers often wrestle with corrosion, grounding issues, and compliance hurdles when wiring in harsh environments. This model carries NEC/CEC compliance and Hazardous/Classified Locations ratings, with UL certification visibility to meet global safety standards. Its compact form factor and copper ground lug support fast, reliable installations across control panels, machinery, and chemical plants—reducing wiring time and maintenance. With a 3/8 in trade size, insulated body, and malleable iron construction, it delivers durable performance in demanding environments.
Product Information
Extended Description
LTB3845GC Eaton Crouse-Hinds: Eaton Crouse-Hinds series Liquidator liquidtight connector, FMC, 45° angle, Copper ground lug, Insulated, #4-14 AWG lug size, Malleable iron, 3/8"
Product Name
Eaton Crouse-Hinds series Liquidator liquidtight connector
Catalog Number
LTB3845GC
UPC
784564253118
Product Length/Depth
2.44 in
Product Height
2.44 in
Product Width
1.13 in
Product Weight
0.35 lb
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 1 Class II, Division 2 Class III
Conduit type
FMC
Connector type
45° angle
Material
Malleable iron
Insulator
Insulated
Trade size
3/8"
Ground lug material
Copper
Lug size
#4-14 AWG
Eaton Crouse-Hinds LTB3845GC 3D drawing
Crouse-Hinds series Malleable and Aluminum Liquidtight Fittings catalog page
Metallic Liquidtight Fittings UL certification
Metallic Liquidtight Fittings UL certification
Eaton Specification Sheet - LTB3845GC
Feature → 45° FMC liquidtight connector design improves routing in restricted spaces. Business Impact → Keeps seals intact while you bend conduits around corners, reducing potential leaks and misalignments. Application → Ideal for panel wiring, motors, and control cabinets where space is constrained. Feature → Copper ground lug and lug size #4-14 AWG. Business Impact → Ensures solid grounding and broad conductor compatibility, lowering risk of EMI and grounding faults. Application → Control panels, hazardous-area equipment, and instrumentation circuits. Feature → Malleable iron body with insulated construction. Business Impact → Delivers rugged mechanical strength and corrosion resistance in tough environments, extending service life and lowering maintenance costs. Application → Oil, gas, chemical plants, and mining facilities. Feature → 3/8" trade size with 2.44" length/height and 1.13" width; weight 0.35 lb. Business Impact → Compact footprint improves install speed and saves space in crowded enclosures, cutting labor time. Application → Machinery and panel interiors. Feature → NEC/CEC compliance and Hazardous/Classified Locations rating. Business Impact → Enables code-compliant installations and fast procurement for regulated facilities, reducing project risk and rework. Application → Industrial facilities with regulatory requirements.
Get a Quick Quote for a Eaton Crouse-Hinds LTB3845GC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds LTB3845GC?
Enquire Now
FAQs
LTB3845GC supports an FMC conduit type with a 3/8 inch trade size and lug range designed for #4–14 AWG conductors. The copper ground lug provides solid grounding, while the malleable iron body and insulated design ensure reliable performance in harsh environments.
The LTB3845GC is specified for NEC/CEC compliance and carries NEC hazardous ratings including Class I, Division 2, Class II Divisions 1 and 2, and Class III, plus Hazardous/Classified Locations area classification, enabling safe installation in regulated industrial spaces.
Yes. Its 45° FMC liquidtight design, insulated body, malleable iron construction, and copper ground lug are tailored for demanding environments such as chemical processing, oil, and gas facilities where sealed, reliable connections are essential.
The LTB3845GC benefits from NEC/CEC compliance and included UL certification visibility for metallic liquidtight fittings. These certifications support regulatory acceptance and safe operation in hazardous environments.
The LTB3845GC offers durable malleable iron construction, insulated protection, and a copper grounding path, which reduce corrosion-related maintenance and grounding faults. Its compact size also speeds installation, improving project timelines and long-term reliability in controlled or hazardous areas.
